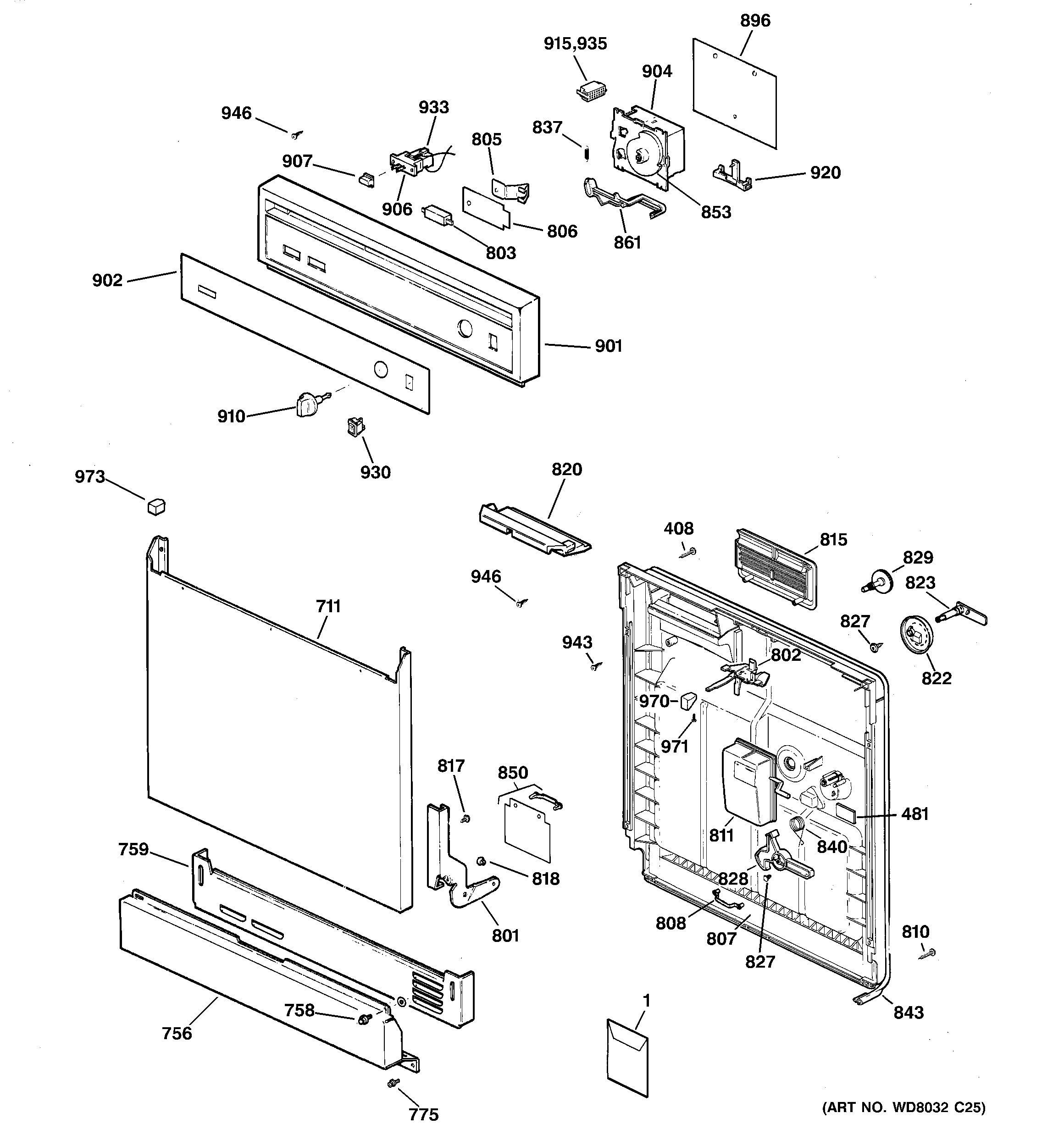

HDA2120Z00BB ESCUTCHEON & DOOR ASSEMBLY

Written by

Products

Position	Product
1	GEN 39-5861
1	GEN WD01X10356
1	GEN 31-3097
1	GEN 31-30130
408	GEN WD02X0296
481	GEN WD01X10016
711	GEN WD31X10010
756	WD27X10223 GE Dishwasher Access Panel Finished Black
758	WD2X323D GE Dishwasher Screw Package
759	GEN WD27X10009
775	WD2X5166 GE Dishwasher Screw
801	GEN WD14X10001
801	ARM HINGE COMPLETE – RH
802	GEN WD13X0069
803	WD21X10261 GE Dishwasher Interlock Switch
805	WD1X1363 GE Dishwasher Leaf Switch
806	WD12X22757 GE Dishwasher Switch Shield
807	WD31X10004 GE Door Inner Panel
808	GEN WD01X10110
810	WD2X322 GE Dishwasher Screw 8-18 x 7/8
811	WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815	WD12X10026 GE Dishwasher Vent Assembly
817	WD1X550 GE Dishwasher Screw
818	GEN WD12X0231
820	WD1X1467 GE Dishwasher Vent Pad
822	WD16X297 GE Dishwasher Detachable Cup Cover
823	WD16X313 GE Dishwasher Detergent Cup Shaft
827	GEN WD02X0425
828	WD16X10011 GE Dishwasher Detergent Dispenser Arm
829	WD12X10284 GE Dishwasher Fill Cap
837	GEN WD03X0749
840	WD3X764 GE Dishwasher Detergent Door Spring
843	WD08X10016 GE Dishwasher Door Gasket
850	GEN WD12X0338
853	GEN WD16X10001
861	WD12X324 GE Dishwasher Lever
896	WD31X10141 GE Dishwasher Timer Cover
901	GEN WD34X10128
902	GEN WD34X10200
904	WD21X10013 GE Dishwasher Control Timer
906	GEN WD21X0732
907	GEN WD09X0323
910	GEN WD09X0344
915	GEN WD01X1432
920	GEN WD01X10022
930	SWITCH ROCKER
933	WD12X10016 GE Dishwasher Insulation Cover
935	GEN WD01X1434
943	WZ5X219D GE Screw Package
946	GEN WD01X10020
970	WD9X225 GE Dishwasher Latch Knob
971	GEN WZ02X0045
973	GEN WD12X10017
