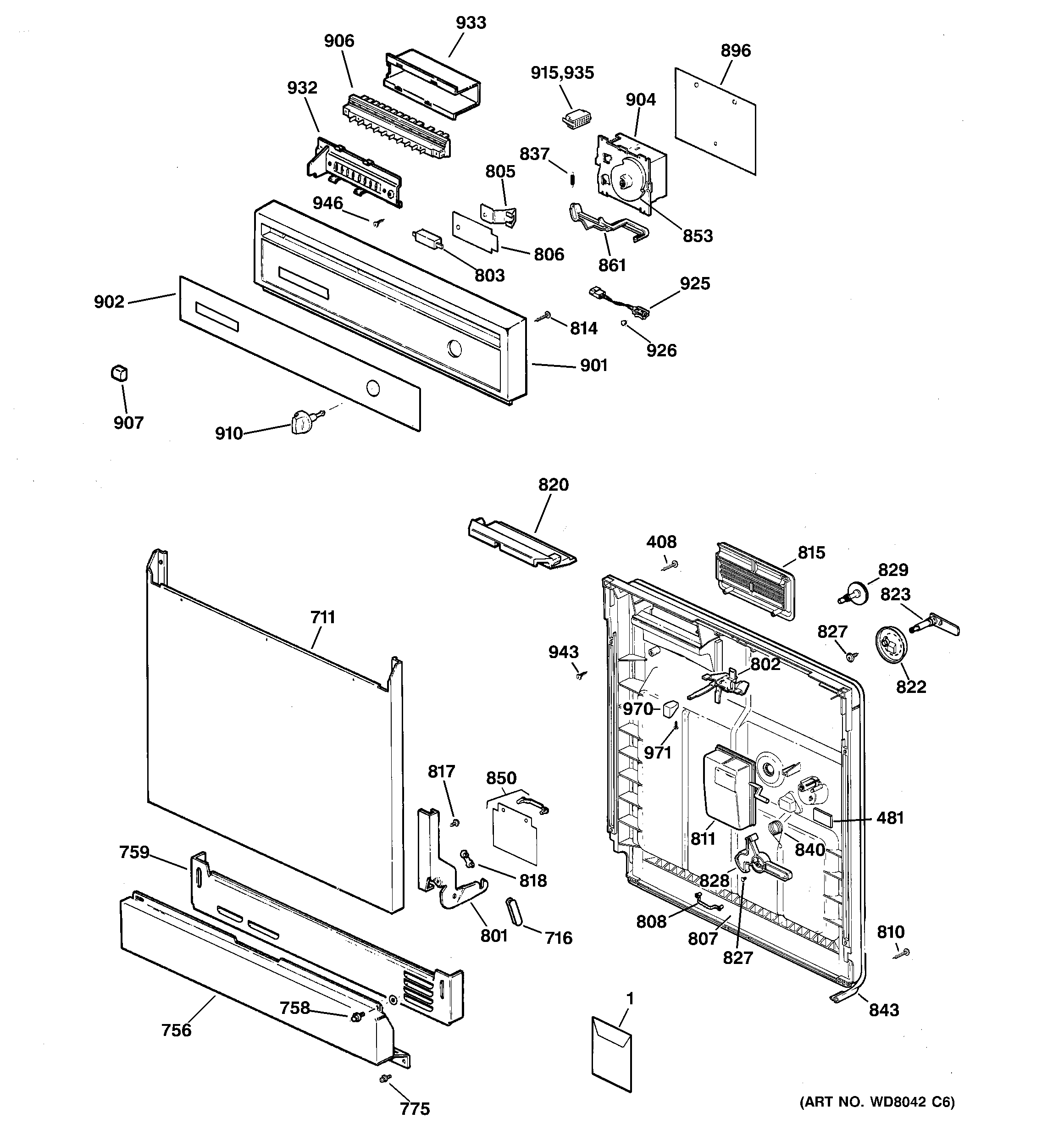

HDA3520Z02BB ESCUTCHEON & DOOR ASSEMBLY

HDA3520Z02BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

HDA3520Z02BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-3085
1GEN 39-5861
1GEN WD01X10356
1GEN WD21X10328
1GEN 31-30506
408GEN WD02X0296
481GEN WD01X10016
711GEN WD31X10010
716WD14X10009 GE Dishwasher Hinge Link Arm
756WD27X10223 GE Dishwasher Access Panel Finished Black
758GEN WD02X10056
759GEN WD27X10009
775WD2X5166 GE Dishwasher Screw
801GEN WD14X10007
801GEN WD14X10008
802WD13X10003 GE Dishwasher Latch Assembly
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807WD31X10004 GE Door Inner Panel
808GEN WD01X10110
810WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
814GEN WD02X10104
815WD12X10026 GE Dishwasher Vent Assembly
817WD1X550 GE Dishwasher Screw
818GEN WD12X10025
820WD1X1467 GE Dishwasher Vent Pad
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10016 GE Dishwasher Door Gasket
850GEN WD12X0338
853GEN WD16X10003
861WD12X324 GE Dishwasher Lever
896WD31X10141 GE Dishwasher Timer Cover
901GEN WD34X10208
901GEN WD34X10207
902GEN WD34X10117
904GEN WD21X10015
906GEN WD21X0799
907GEN WD09X0323
910GEN WD09X0344
915GEN WD01X1432
925GEN WD06X0242
926GEN WD01X1475
932GEN WD12X432
933COVER SWITCH
935GEN WD01X1434
943WZ5X219D GE Screw Package
946SCREW 6-22 X 13/32
970WD9X225 GE Dishwasher Latch Knob
971GEN WZ02X0045
