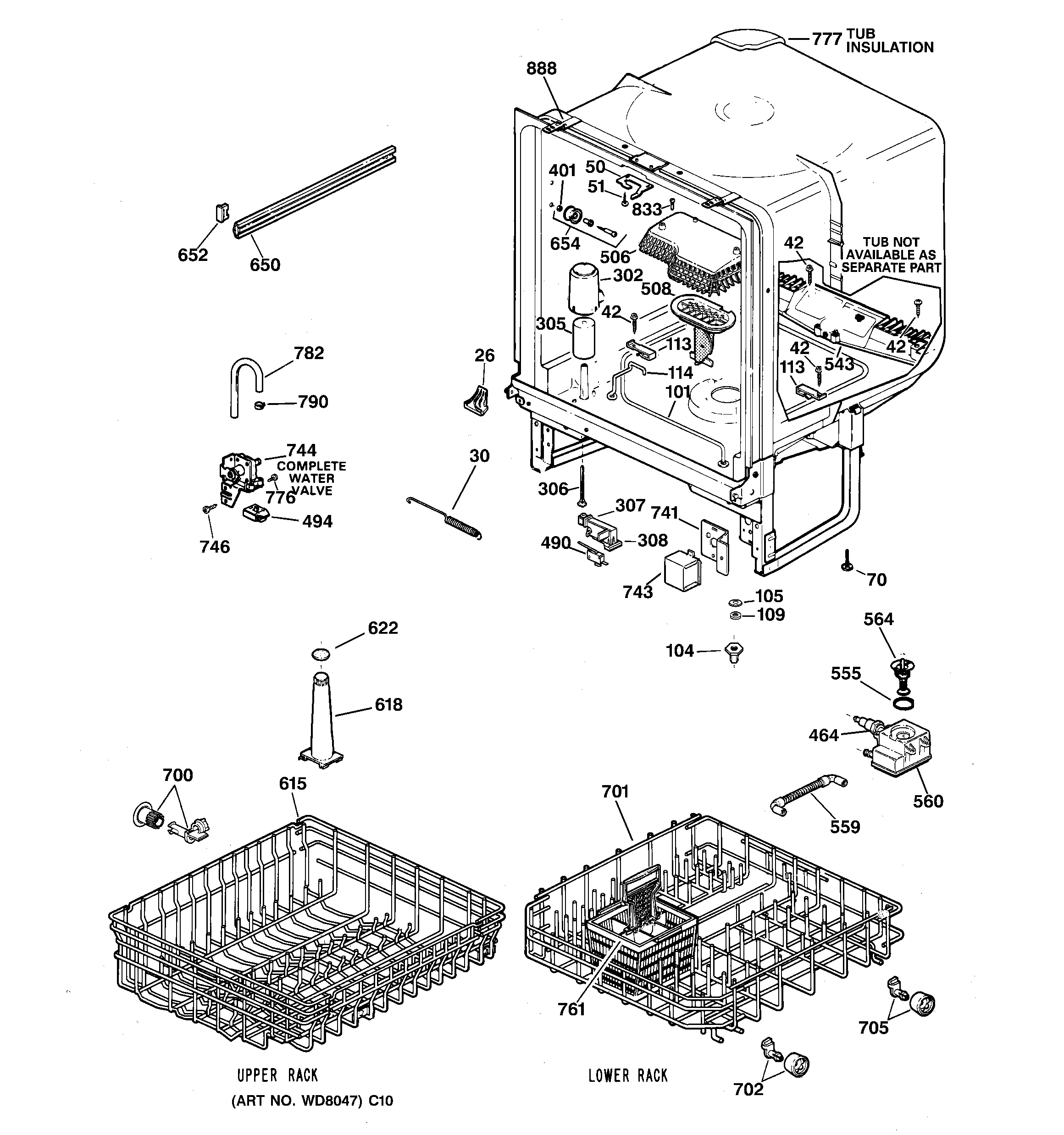

HDA3530Z02WW BODY PARTS

Products

PositionProduct
26WD8X228 GE Dishwasher Left Hand Tub Baffle Corner Gasket
26WD8X227 GE Dishwasher Right Hand Corner Seal
30WD03X10006 GE Dishwasher Door Spring
42SCREW #8-3/4 L HX HD SS
50WD13X67 GE Dishwasher Latch Keeper
51WD02X10066 GE Dishwasher Screw 10-24 x 1/2 TT TRR S
70WD2X320 GE Dishwasher Leveling Leg
101WD05X26780 GE Dishwasher Heating Element Assembly
104GEN WD01X1491
105GEN WD01X1168
109GEN WD08X0225
113WD01X10086 GE Dishwasher Support Calrod Assembly
114WD1X1472 GE Dishwasher Heater Support
302WD12X445 GE Dishwasher Float Dome
305WD12X334 GE Dishwasher Float
306WD12X335 GE Dishwasher Float Stem
307WD12X10023 GE Dishwasher Bracket
308GEN WD12X0377
401WD3X767 GE Dishwasher Washer
464GEN WD01X10180
490WD21X479 GE Dishwasher Switch
494WD1X1459 GE Dishwasher Insulation Housing
506WD12X417 GE Dishwasher Cover
508WD12X418 GE Dishwasher Sump Cap
543GEN WD22X0149
555GEN WD08X0219
559GEN WD24X221
560GEN WD22X147
564WD24X10018 GE Assembly Piston and Nut
615WD28X31820 GE Dishwasher Upper Final Rack Assembly
618GEN WD28X10008
622WD28X10007 GE Dishwasher Top Tower
650WD30X98 GE Dishwasher Slide Assembly
652WD12X10304 GE Dishwasher Rack Slide Endcap (White)
654WD12X332 GE Dishwasher Rack Roller
700WD12X10327 GE Dishwasher Rack and Roller Studs 4 Pack
701WD28X31819 GE Dishwasher Lower Rack
702WD12X271 GE Dishwasher Roller
705WD35X21038 GE Dishwasher Upper Rack Wheel Kit
741GEN WD12X447
743WD12X448 GE Dishwasher Junction Box
744WD15X93 GE Dishwasher Water Inlet Fill Valve
746WD2X248 GE Dishwasher Screw
761SILVERWARE BASKET
776GEN WZ05X0222
777GEN WD01X1498
782WD18X202 GE Dishwasher Fill Hose
790WH1X2036 GE UNIX Clamp
833WD2X295 GE Refrigerator Screw
888WD35X200 GE Dishwasher Mounting Kit
