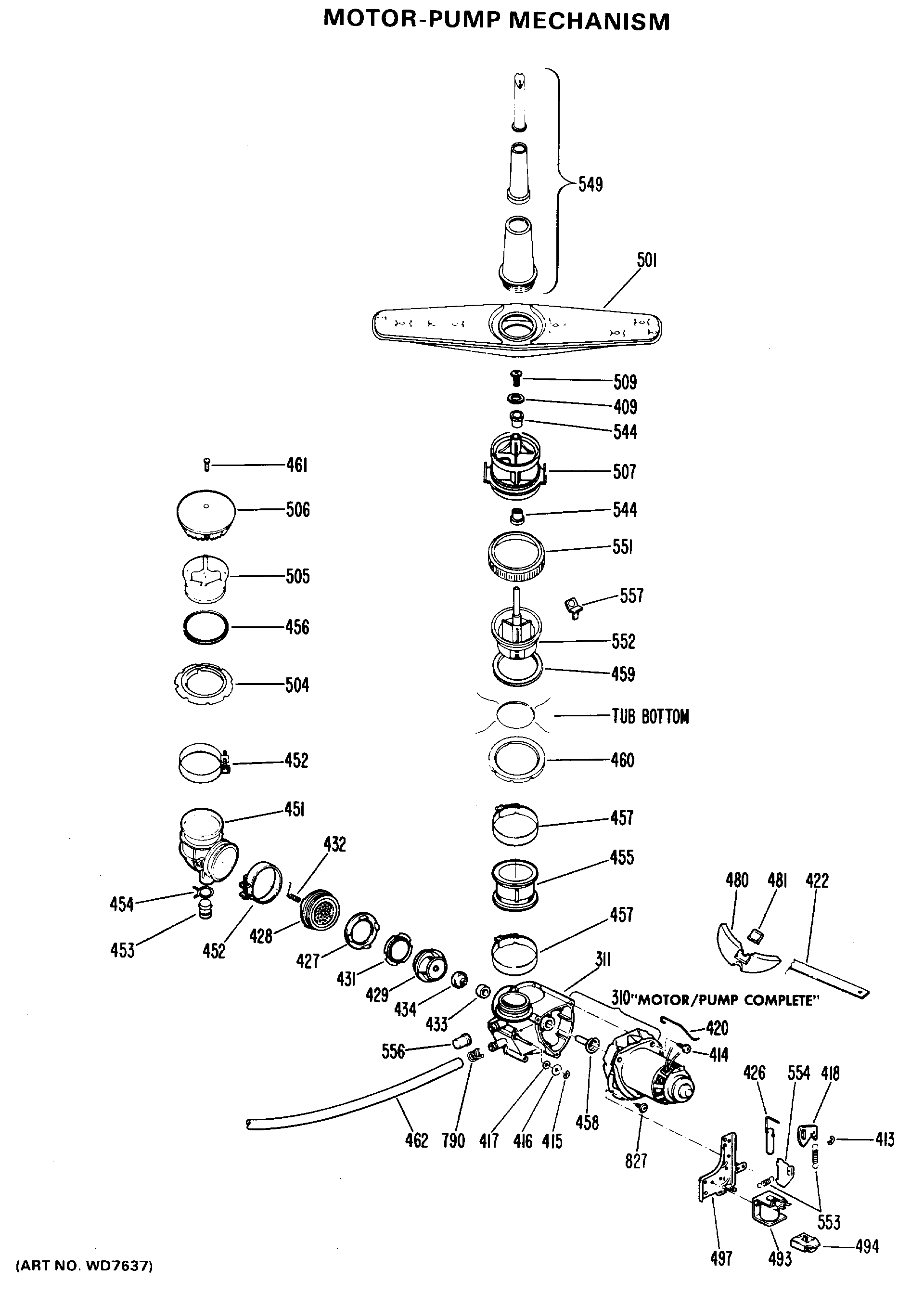

HDA597-01 MOTOR-PUMP MECHANISM

Products

Position	Product
310	WD26X10013 GE Dishwasher Motor and Pump Assembly
311	GEN WD19X0042
409	WASHER THRUST
413	WD3X487D GE Dishwasher Retainer Package
414	GEN WD02X5183
415	GEN WD01X1057
416	GEN WD01X1037
417	WD8X181 GE Dishwasher Pump Gasket
420	MOTOR HANGER
422	GEN WD01X5486
426	ARMATURE&LNK
427	GEN WD12X0354
428	GEN WD12X0378
429	IMPELLER ASM
431	GEN WD01X1341
432	GEN WD01X1339
433	GEN WD19X0051
434	GEN WD19X0052
451	PUMP INLET CONNECTOR
452	WD1X1392 GE Dishwasher Sump Clamp
453	GEN WD12X0213
455	GEN WD18X0175
456	SUPPORT GASKET
458	GEN WD12X0106
459	GEN WD08X5093
460	GEN WD03X0627
461	SCR 8-15 A PA 3/4 SS
462	DRAIN HOSE
480	GEN WD01X5505
481	GEN WD01X5506
493	WD21X802 GE Dishwasher Drain Solenoid
494	GEN WD12X0350
497	GEN WD01X1282
501	GEN WD22X5056
504	SUMP INLET NUT
505	GEN WD12X5027
506	SUMP COVER
507	UNKNOWN
509	SCR 10-32X.300 TRUSS HD
544	BEARING SPRAY ARM
551	GEN WD19X0044
552	GEN WD22X0114
553	WD3X721 GE Dishwasher Spring Set
556	GEN WD01X5405
790	WH1X2036 GE UNIX Clamp
827	GEN WD02X0425
