HDA960-04 DISHWASHER MECHANISM
Written by
in

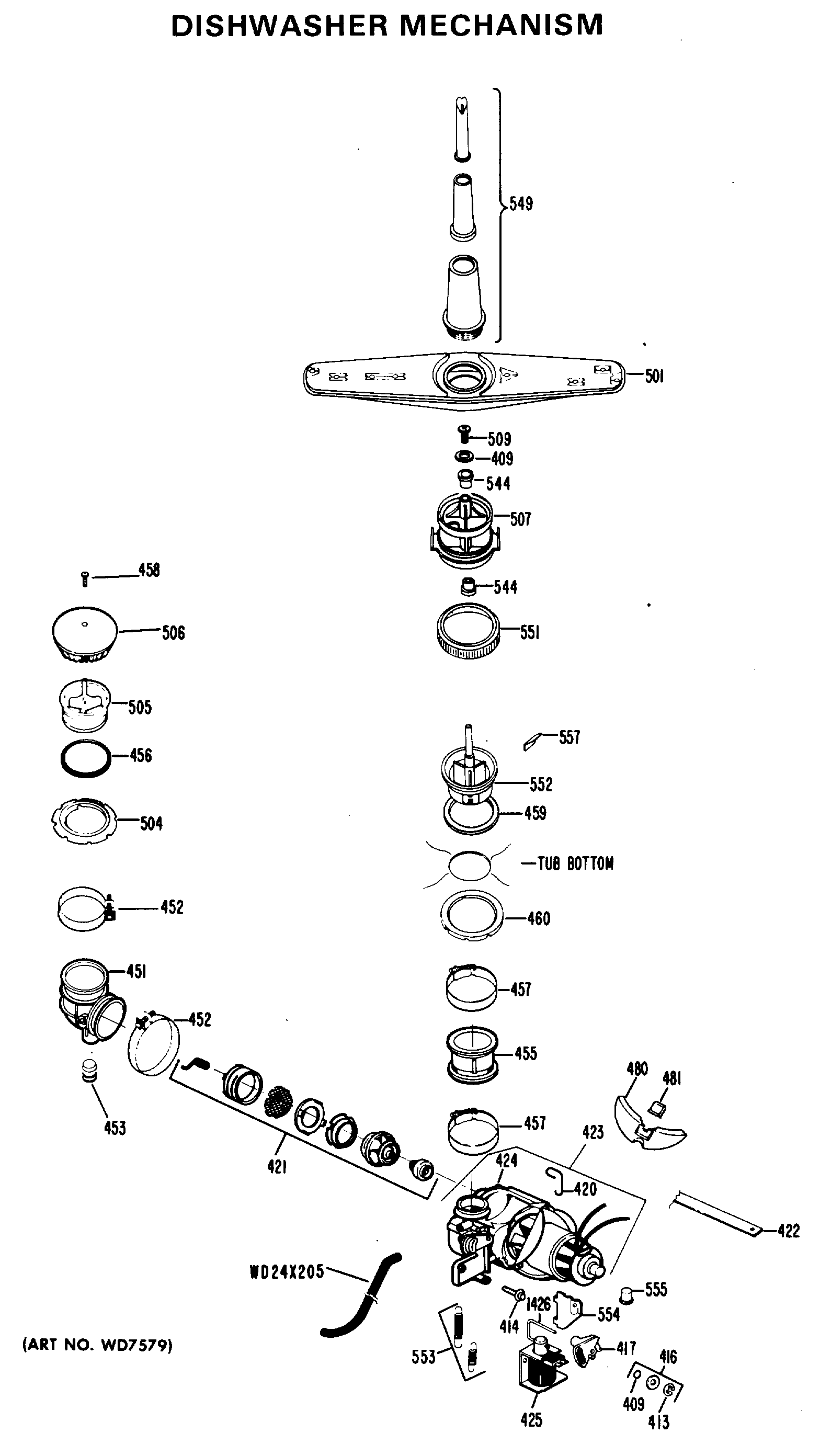

HDA960-04 DISHWASHER MECHANISM
Products
Position
Product
409
WASHER THRUST
413
WD3X487D GE Dishwasher Retainer Package
414
GEN WD02X5183
416
WD8X181 GE Dishwasher Pump Gasket
417
GEN WD12X0201
420
MOTOR HANGER
421
GEN WD17X0057
422
GEN WD01X5486
423
WD26X10013 GE Dishwasher Motor and Pump Assembly
424
GEN WD19X0049
425
WD21X802 GE Dishwasher Drain Solenoid
425
GEN WD01X1282
451
GEN WD08X5094
452
WD1X1392 GE Dishwasher Sump Clamp
453
GEN WD12X0213
455
GEN WD18X0175
456
SUPPORT GASKET
457
WD1X1376 GE Dishwasher Clamp
458
SCR 8-15 A PA 3/4 SS
459
GEN WD08X5093
460
GEN WD03X0627
480
GEN WD01X5505
481
GEN WD01X5506
501
GEN WD22X5056
504
SUMP INLET NUT
505
GEN WD12X5027
506
SUMP COVER
507
GEN WD22X0089
509
SCR 10-32X.300 TRUSS HD
544
BEARING SPRAY ARM
549
PS KIT POWER TOWER
551
GEN WD19X0044
552
SUPPORT SPRAY ARM
553
WD3X721 GE Dishwasher Spring Set
554
GEN WD01X1283
←
MDB7759SAB2 12 – OPTIONAL PARTS (NOT INCLUDED)
DET400KD3 02 – CABINET AND COMPONENT PARTS
→
