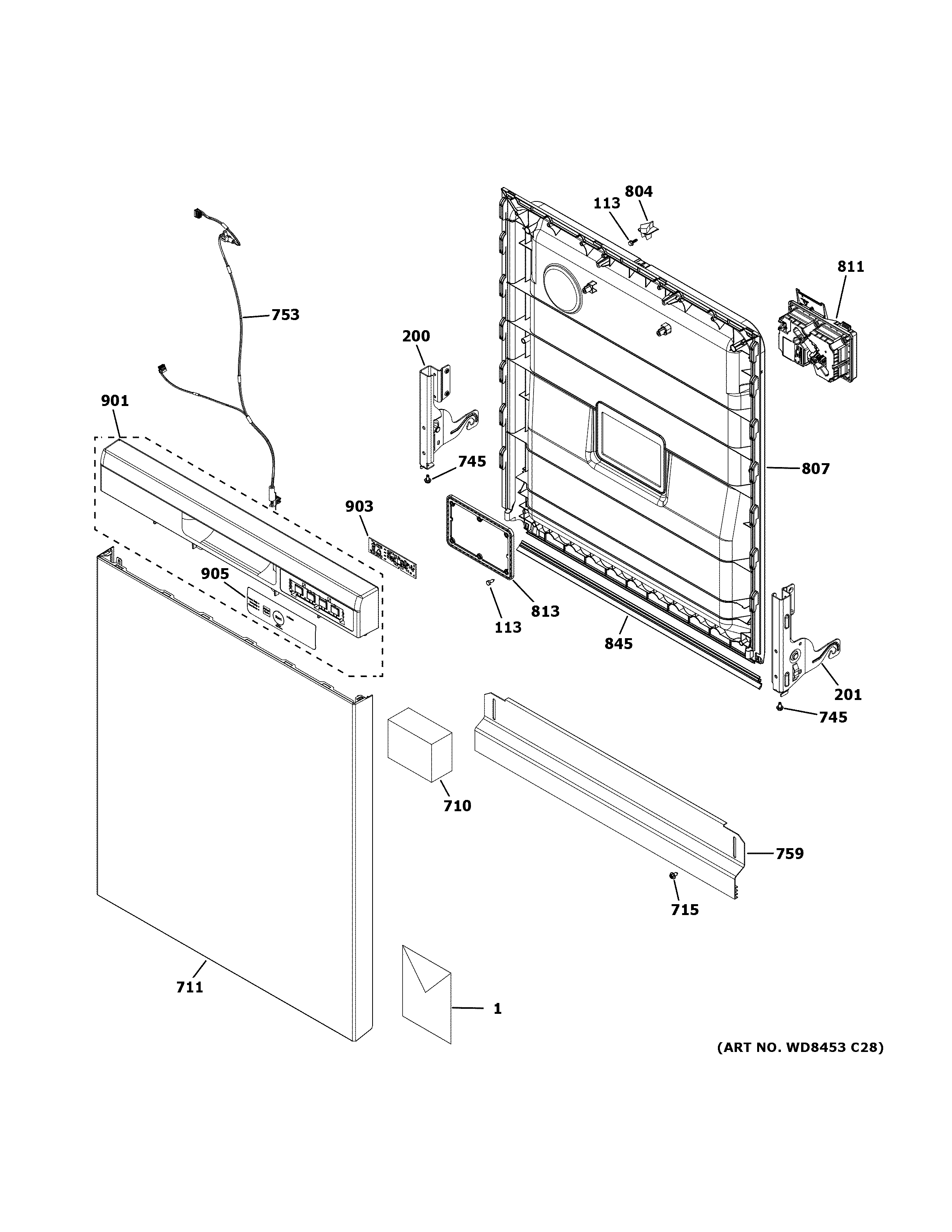

HDF330PGR0BB ESCUTCHEON & DOOR ASSEMBLYadmin2025-04-26T09:58:38+00:00HDF330PGR0BB ESCUTCHEON & DOOR ASSEMBLY ProductsPositionProduct1INSERT MINI MANUAL1PM MINI MANUAL AND WIRING1PM QUICK OWNERS MANUAL1PM INSTALL INSTRUCTIONS1PM OWNERS MANUAL113WD01X27719 GE Screw PL HXW 8-18 1/2200WD01X27721 GE Dishwasher Door Hinge Assembly Left201WD01X27720 GE Dishwasher Door Hinge Assembly Right710WD01X28007 GE Vent Spacer711WD27X28040 GE Dishwasher Black Outer Service Door Pan715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S753WD21X27698 GE Dishwasher UI Harness Assembly759BLACK TOE KICK804WD13X10071 GE Dishwasher Door Strike807WD27X28018 GE Dishwasher Inner Door Assembly Service811DETERGENT MODULE813WD12X10420 GE Dishwasher Detergent Plate845WD08X21894 GE Dishwasher Door Gasket901WD34X28020 GE Dishwasher Black Control Panel Assembly903WD21X27139 GE Dishwasher Configured Service User Interface Control905WD34X27923 GE Control Panel Overlay Black
