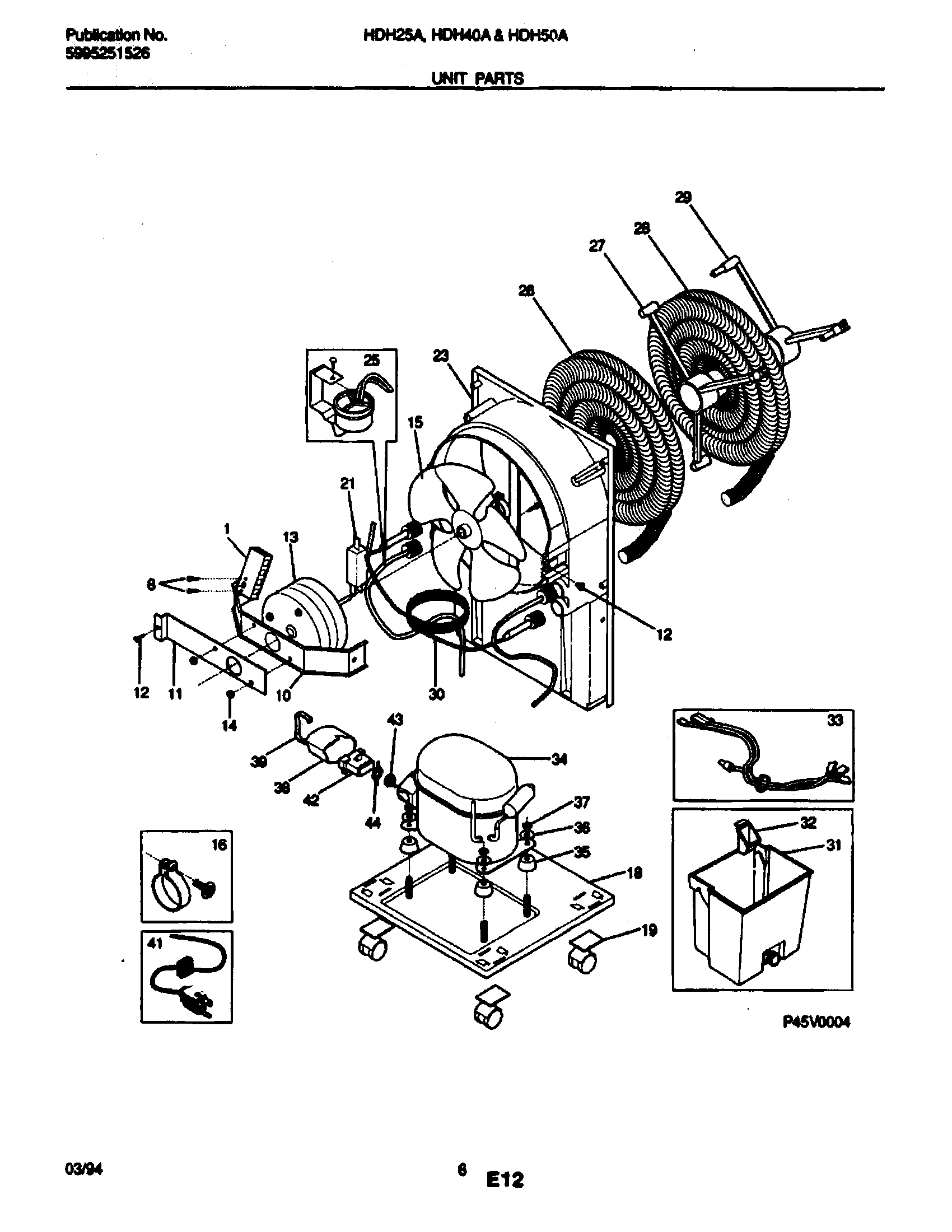

HDH25A 05 – UNIT PARTS

HDH25A 05 – UNIT PARTS

Written by

in

HDH25A 05 – UNIT PARTS

Products

PositionProduct
WCI 327100001
1WCI 5303296823
8WCI 5303007620
10WCI 5303296828
11WCI 5303296829
12WCI 3002801
13WCI 5303289838
14WCI 08007481
15FAN BLADE
16WCI 5303303699
18WCI 5303303502
19WCI 5303275278
21WCI 5308016437
23WCI 5303303501
25WCI 5303304035
26WCI 3017458
27CLAMP-EVAPORATOR INNER
28WCI 3017954
29CLAMP-EVAPORATOR OUTER
30CAPILLARY TUBE-CUT TO 25“
31WCI 5303303883
32WCI 5303272520
33WCI 5303303887
34WCI 5303271878
35WCI 5303001777
36WASHER-COMPRESSOR
37NUT-COMPRESSOR
38COVER-TERMINAL
39STRAP-COVER
40WCI 5303003020
41CORD-POWER
