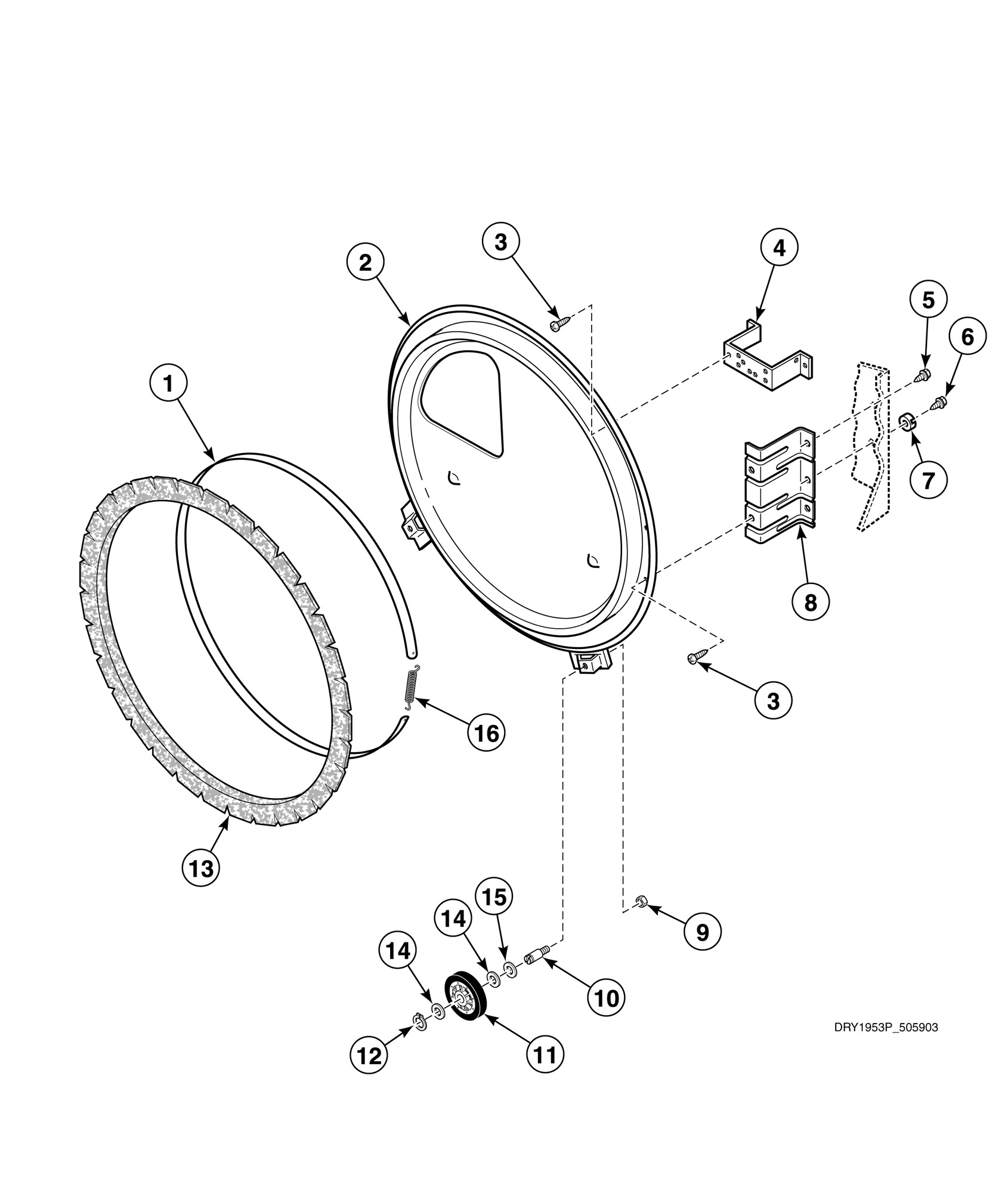

HE4270 Rear Bulkhead, Felt Seal and Cylinder Roller

Written by

Products

Position	Product
1	Seal Strap
2	Rear Bulkhead Assembly (Comment: Includes roller bracket)
5	Screw
6	Screw (Comment: Green)
7	Washer
8	Wire Harness Assembly
9	Nut
10	Shaft
11	Cylinder Roller Kit
12	Retaining Ring
13	Seal Assembly
14	Washer
15	Washer
16	Spring
