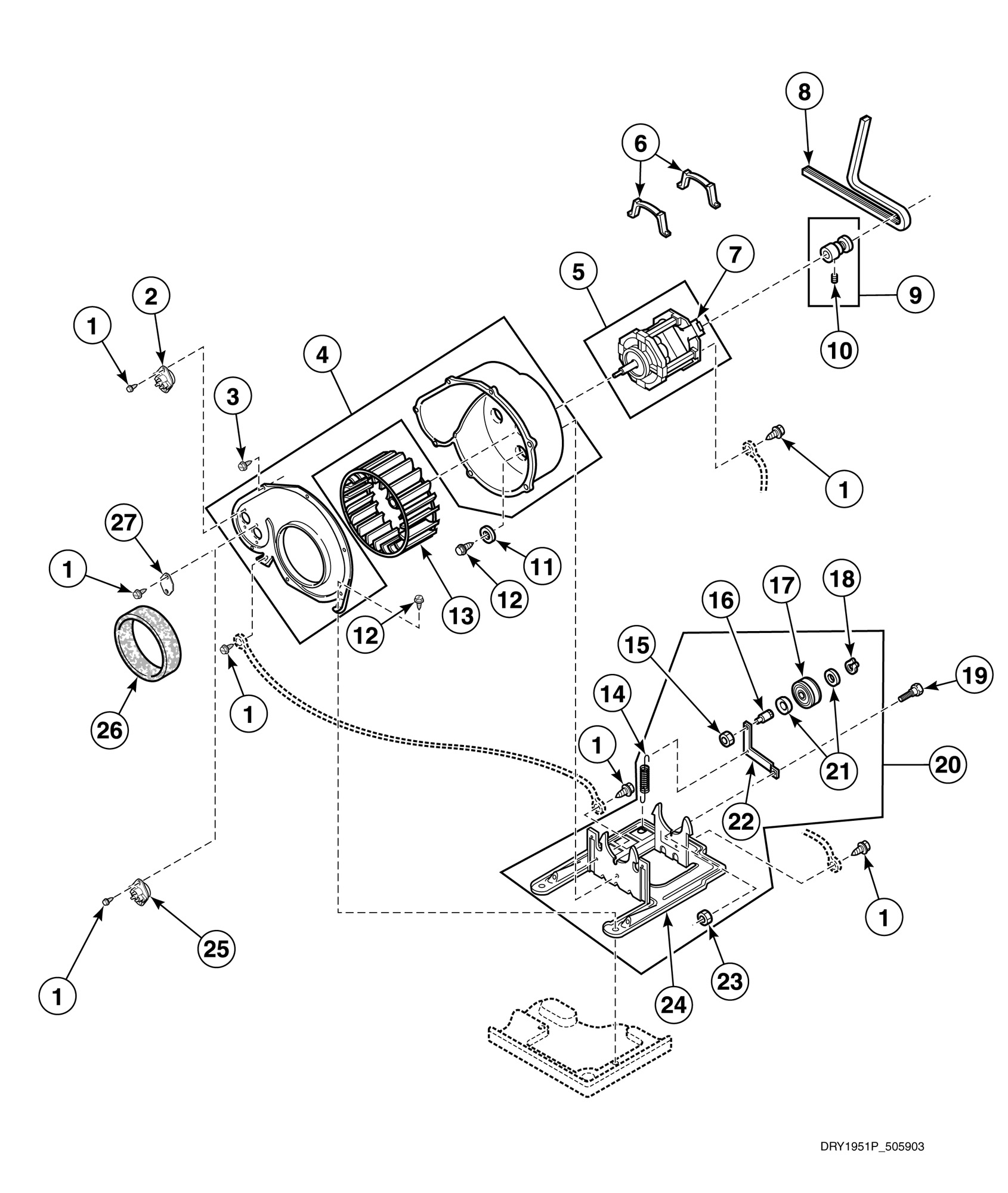

HE4430 Motor, Exhaust Fan and Belt
Written by
in
HE4430 Motor, Exhaust Fan and Belt
Products
Position
Product
1
Screw
2
Thermostat
3
Screw
4
Blower Housing and Cover Kit
5
Motor Kit (Comment: Includes switch)
6
Motor Mount Clamp
8
Cylinder Belt
9
Motor Pulley Kit (Comment: Includes item 10)
10
Screw
11
Washer
12
Screw
13
Blower Fan Assembly
14
Idler Spring
15
Nut
16
Shaft
17
Idler Wheel and Bearing Assembly
18
Retaining Ring
20
Motor Mount and Idler Assembly
21
Washer
23
Nut
24
Motor Mount
25
Wire Harness Assembly
26
Seal
27
NOT ON YOUR MODEL
←
FGFB337GCB 05 – BURNER
LSE9900ACW 14 – TOP COVER (LSE9900ACL,ACW,ADL,ADW)
→
