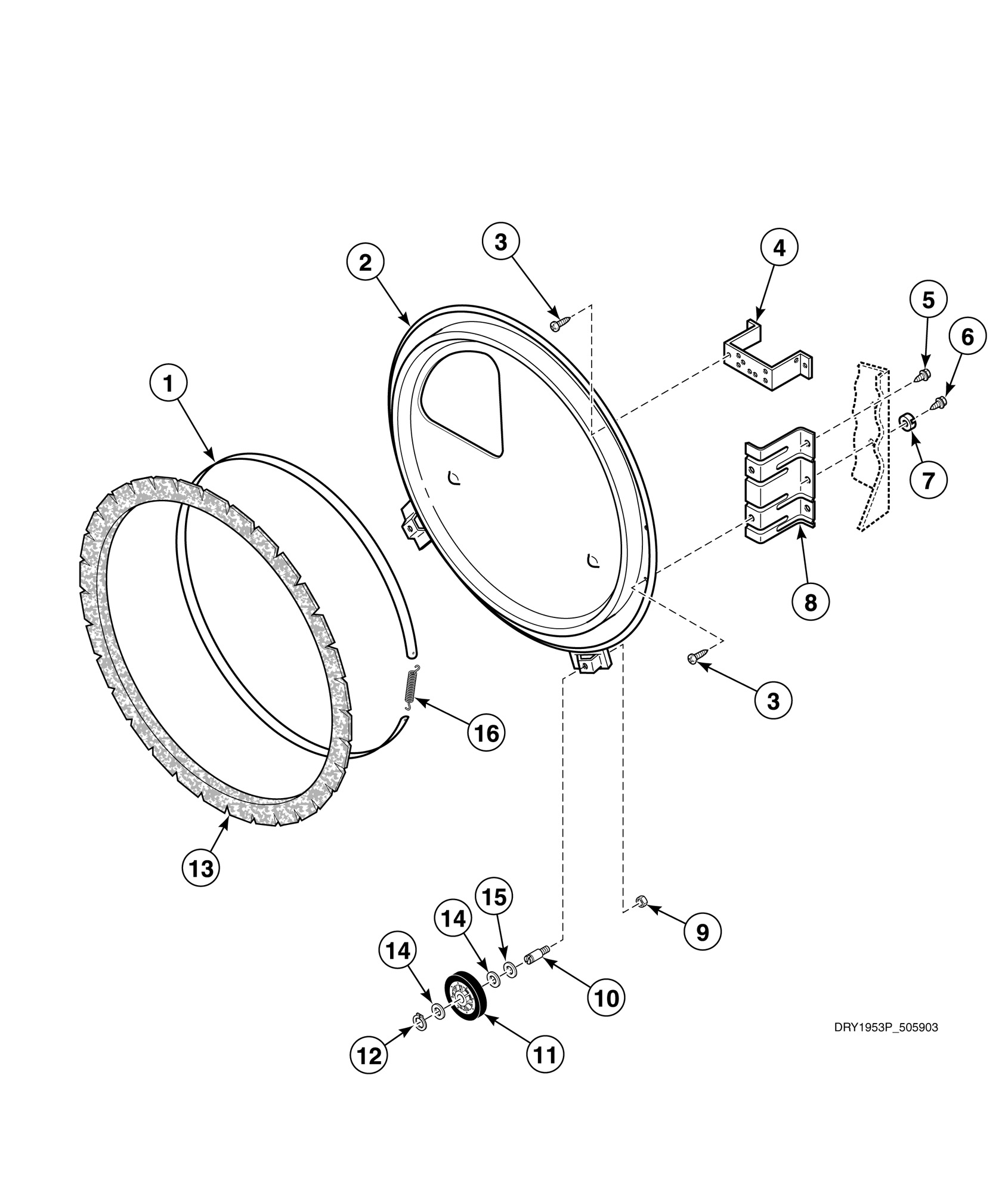

HE6003 Rear Bulkhead, Felt Seal and Cylinder Roller

HE6003 Rear Bulkhead, Felt Seal and Cylinder Roller

Written by

in

HE6003 Rear Bulkhead, Felt Seal and Cylinder Roller

Products

PositionProduct
1Seal Strap
2Rear Bulkhead Assembly (Comment: Includes roller bracket)
5Screw
6Screw (Comment: Green)
7Washer
8Wire Harness Assembly
9Nut
10Shaft
11Cylinder Roller Kit
12Retaining Ring
13Seal Assembly
14Washer
15Washer
16Spring
