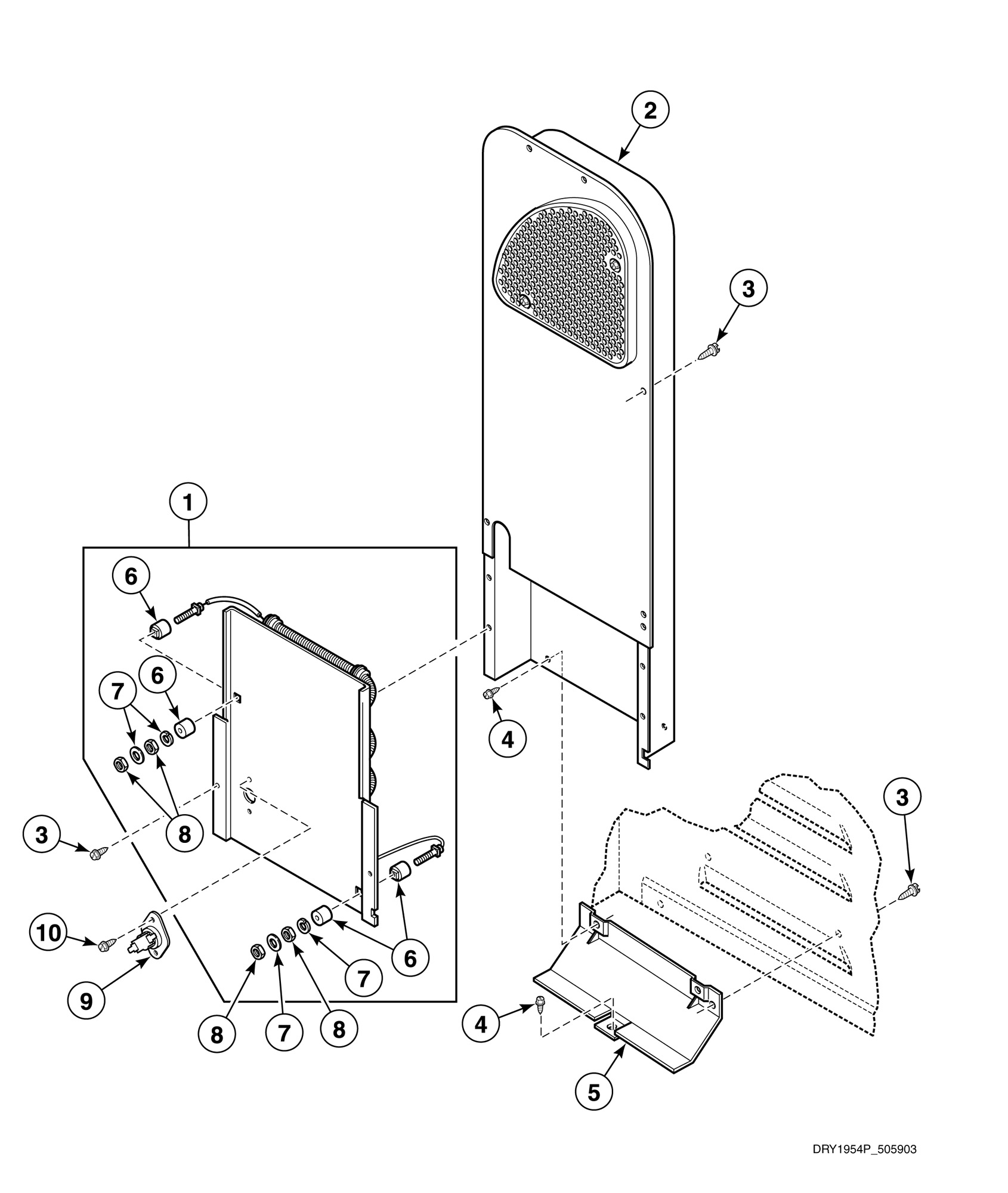

HE6350 Heater Duct and Element Assembly
Products
| Position | Product |
|---|---|
| 2 | Heater Duct and Screw Assembly |
| 3 | Screw |
| 4 | Screw |
| 5 | Heat Duct Shield |
| 6 | Wire Harness Assembly |
| 7 | Washer |
| 8 | Nut |
| 9 | Limit Thermostat |
HE6350 Heater Duct and Element Assembly
| Position | Product |
|---|---|
| 2 | Heater Duct and Screw Assembly |
| 3 | Screw |
| 4 | Screw |
| 5 | Heat Duct Shield |
| 6 | Wire Harness Assembly |
| 7 | Washer |
| 8 | Nut |
| 9 | Limit Thermostat |
