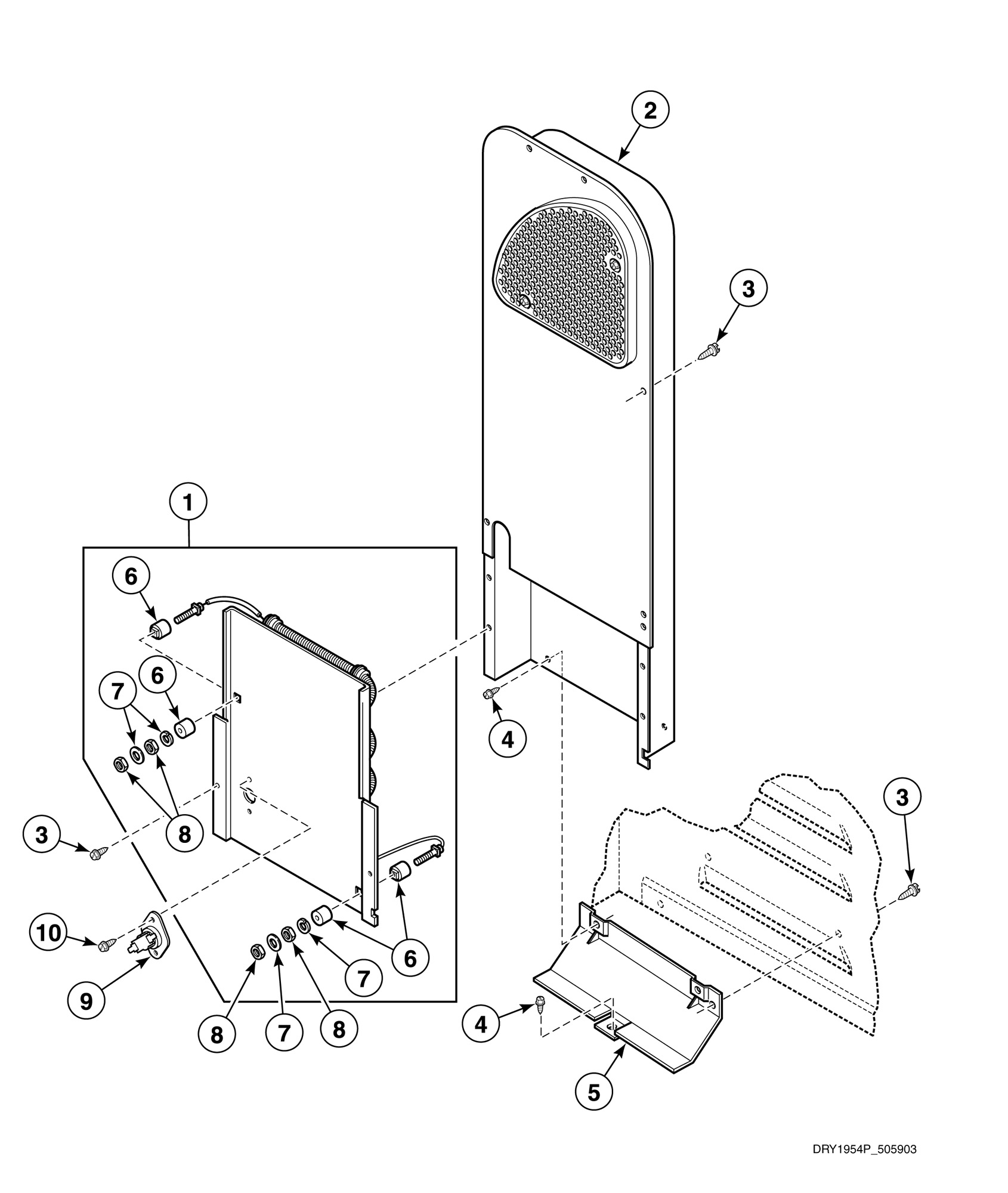

HE6430 Heater Duct and Element Assemblyadmin2025-04-26T10:28:33+00:00HE6430 Heater Duct and Element Assembly
Products
| Position | Product |
|---|
| 1 | Heater Kit Assembly (Comment: 240 Volt, 5000 Watt, Red, Includes items 1, 7 and 8) |
| 1 | Heater Kit Assembly (Comment: 208 Volt, 4750 Watt, White, Includes items 1, 7 and 8) |
| 1 | Heater Kit Assembly (Comment: 240 Volt/50 Hertz, 4.8 kW, Includes items 1, 7 and 8) |
| 2 | Heater Duct and Screw Assembly |
| 3 | Screw |
| 4 | Screw |
| 5 | Heat Duct Shield |
| 6 | Wire Harness Assembly |
| 7 | Washer |
| 8 | Nut |
| 9 | Limit Thermostat |
| 10 | Screw |
