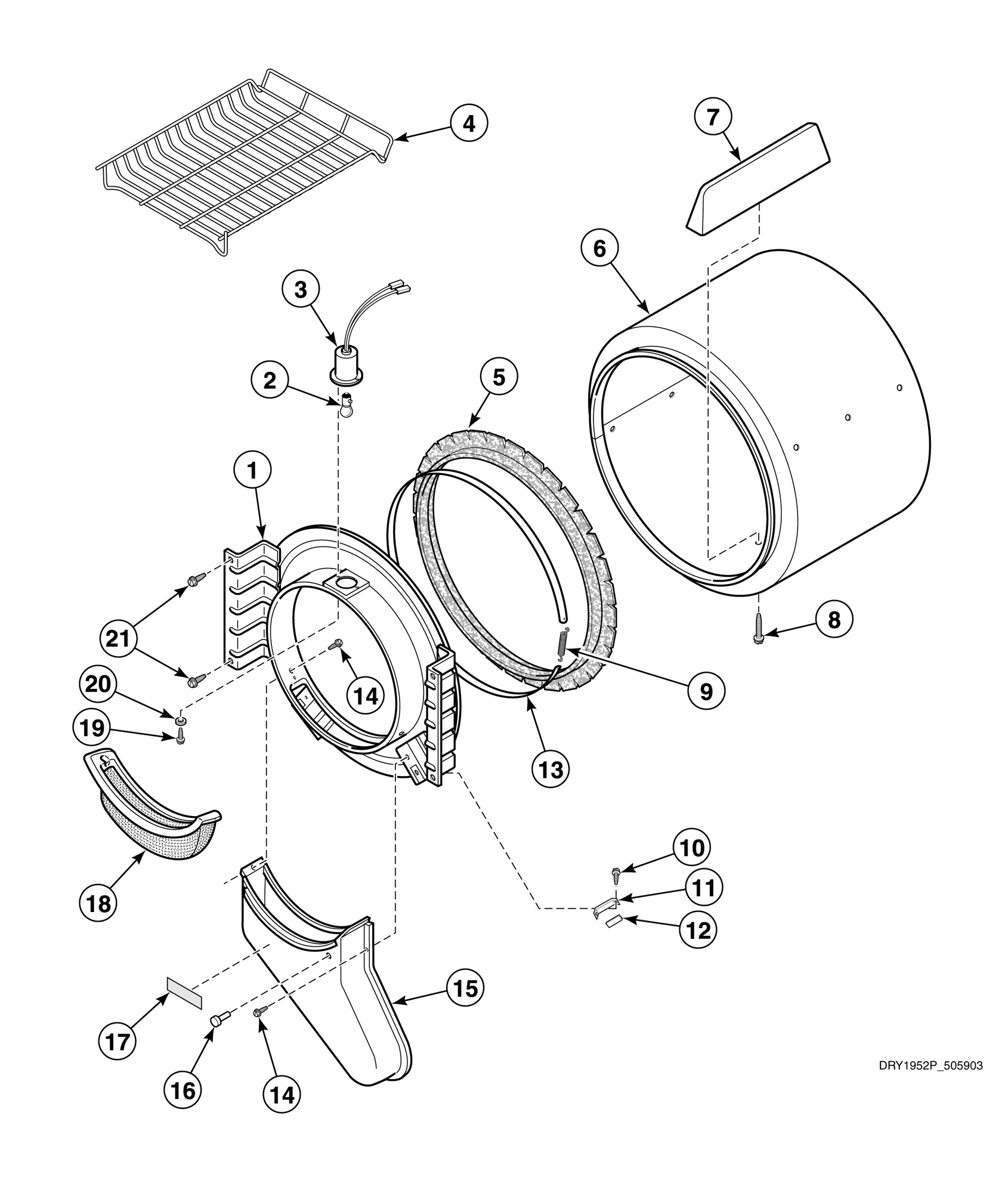

HE7230 Front Bulkhead, Air Duct, Felt Seal and Cylinder

Products

PositionProduct
5Seal Assembly
6Cylinder Assembly (Comment: Includes baffles)
7Cylinder Baffle (Comment: Short, 2 required)
8Screw
9Spring
10Screw
11Cylinder Glide
12Felt Pad
13Seal Strap
14Screw
15Air Duct Assembly
17Disconnect Power Warning Label
18Lint Filter
19Wire Harness Assembly
20Washer
21Screw
