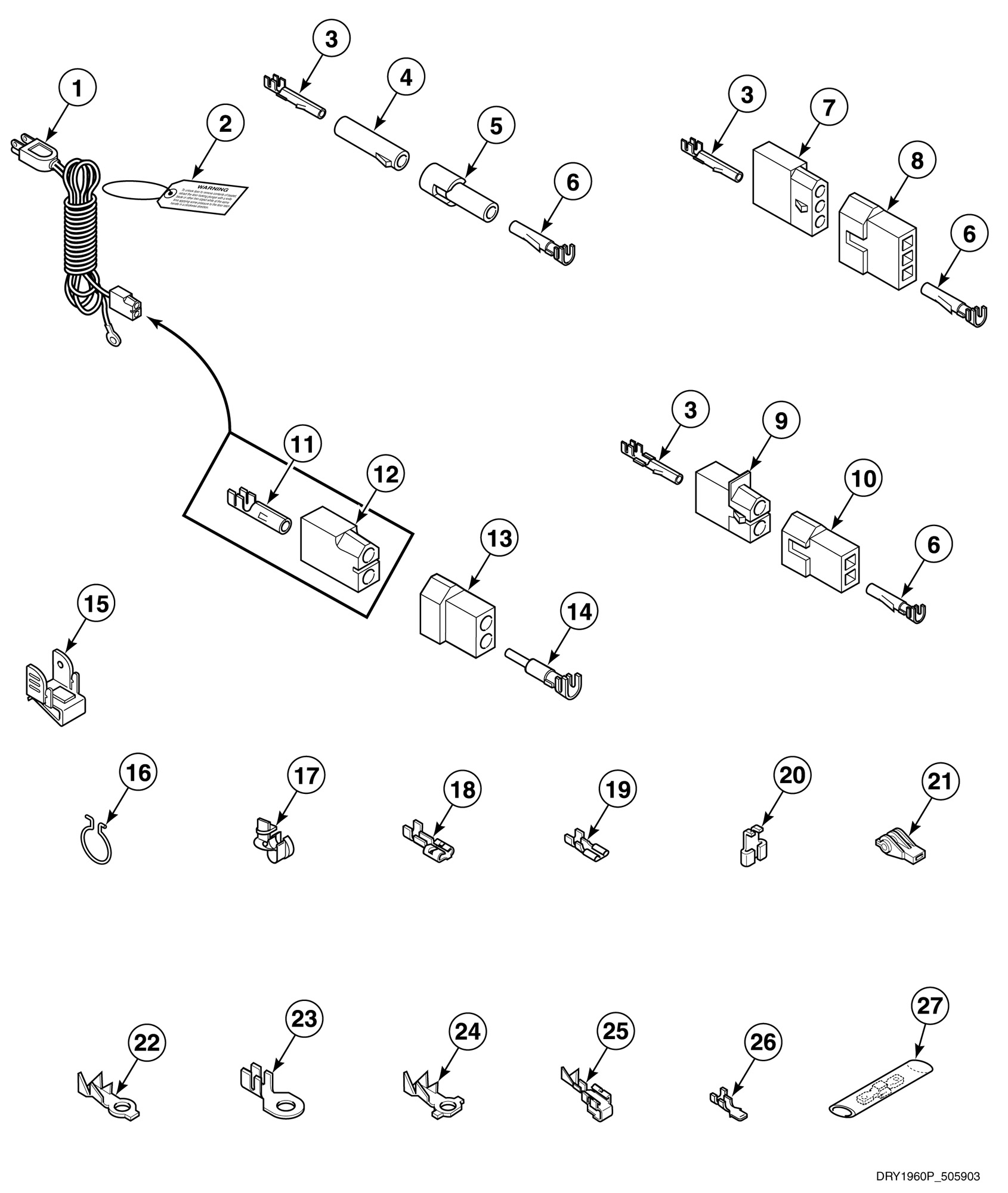

HE9250 Power Cord and Terminals

Products

Position	Product
1	NOT ON YOUR MODEL
2	Wire Harness Assembly
3	Female Pin Terminal
4	Molex Receptacle
5	1 Circuit Plug
6	Male Pin Terminal
7	3 Circuit Receptacle
8	Plug
9	2 Circuit Receptacle
10	2 Circuit Plug
11	Female Pin Terminal
12	2 Circuit Receptacle
13	2 Circuit Plug
14	Male Pin Terminal
15	Grounding Clip
16	Wire Clip
17	Strain Relief
18	Female Spade Terminal (Comment: 1/4 inch, (1) 18 gauge wire)
19	Female Spade Terminal (Comment: Small spade)
20	Female Flag Terminal
21	GEN 70210
22	Ring Terminal (Comment: No. 10, (1) 18 gauge wire)
23	Ring Terminal (Comment: No. 10, (2) 18 gauge wire
24	Ring Terminal (Comment: 1/4 inch ring)
25	GEN 00114
26	GEN 00139
27	Connector
