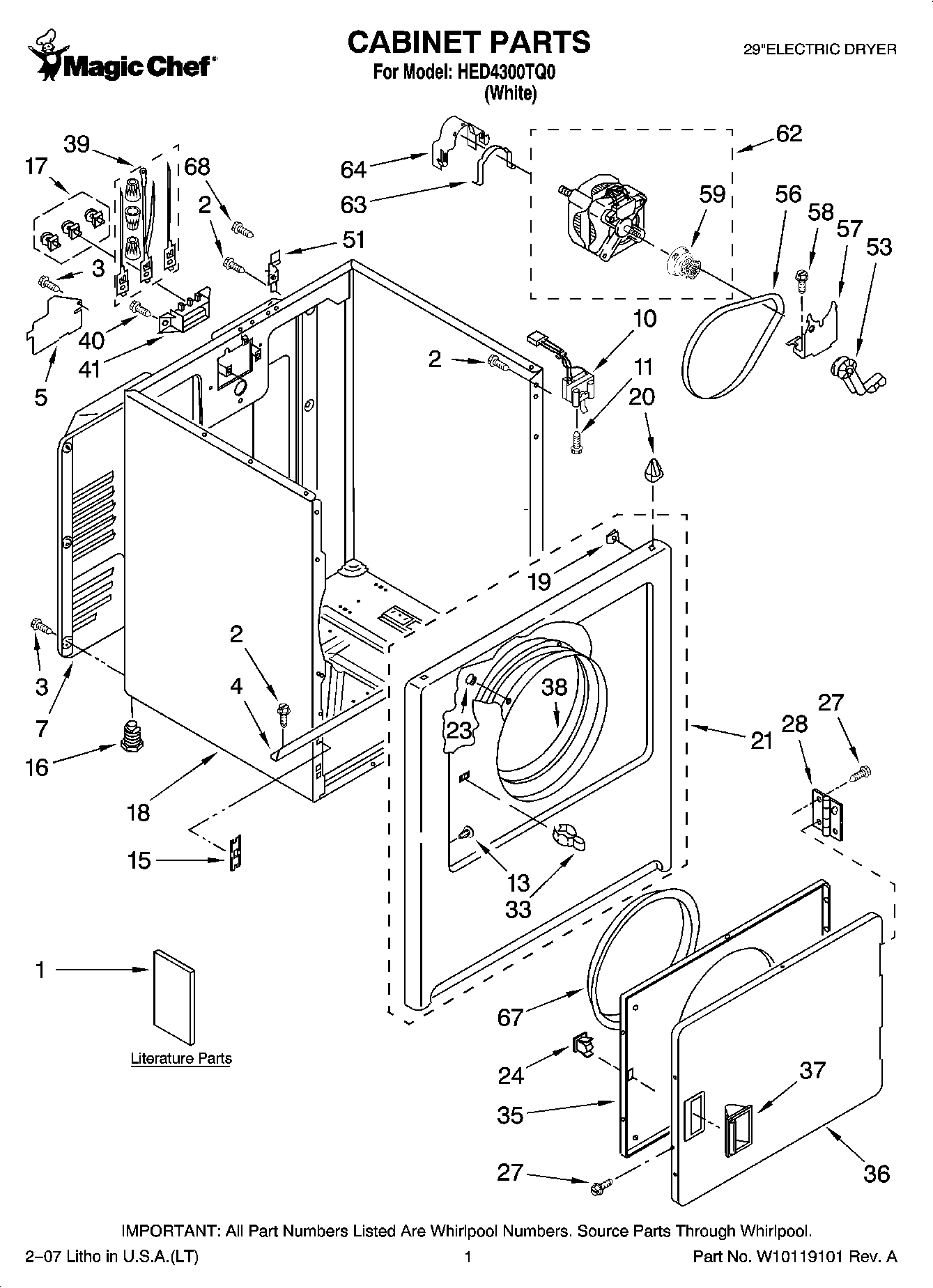

HED4300TQ0 01 – CABINET PARTS

Products

Position	Product
1	MAY W10088773
1	MAY 8576793
1	MAY W10089176
1	MAY W10088970
2	SCREW
3	Screw
4	MAY 8541400
5	MAY 3396795
7	MAY 3396807
10	Door Switch Assembly
11	SCREW
13	PLUG, HINGE HOLES
15	MAY 3394083
16	MAY 3392100
16	MAY 279810
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
23	Clip, Felt Pad
24	Catch, Door
27	MAY 342055
28	HINGE AND PIN ASSEMBLY
33	MAY 696144
35	MAY 3403371
36	MAY 3403361
37	Handle, Door (White)
38	MAY 8066124
39	MAY 279393
40	SCREW, 10-16 X 1/2
41	MAY 3397659
51	Hinge, Top
53	IDLER ASSEMBLY
56	MAY 8066065
57	MAY 348780
58	BOLT
59	Pulley, Motor
62	MAY 8066206
63	MAY 660658
64	Clamp, Motor (With Shield)
67	MAY 3405245
68	Screw, 8-18 x 5/8 (External Ground)
