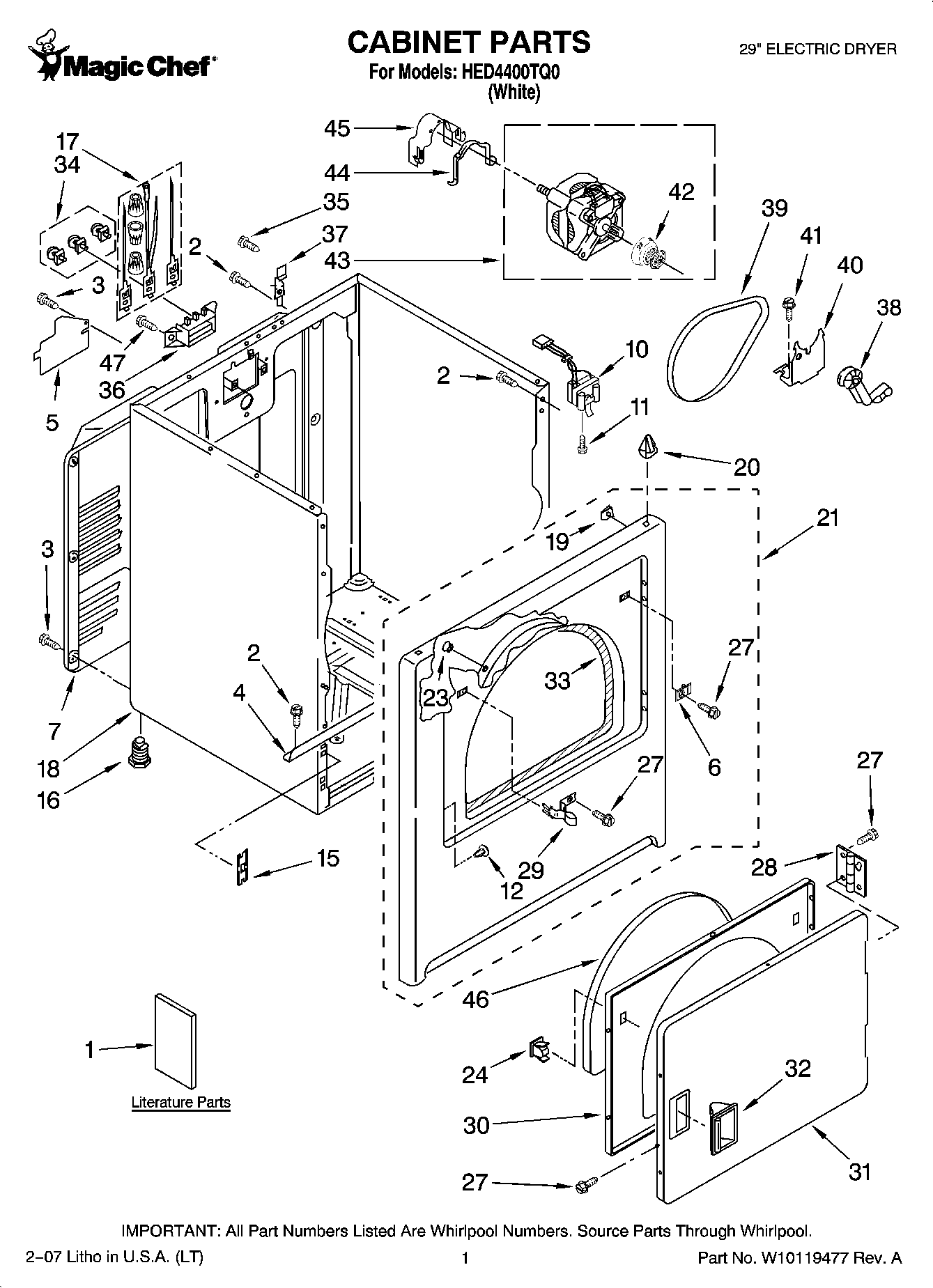

HED4400TQ0 01 – CABINET PARTS

Products

Position	Product
1	MAY W10088773
1	MAY 8576817
1	MAY W10088970
1	MAY W10089176
2	SCREW
3	Screw
4	MAY 8541400
5	MAY 3396795
6	PLUG-STRIKE
7	MAY 3396805
10	MAY 3406109
11	SCREW
12	PLUG, HINGE HOLES
15	MAY 3394083
16	MAY 279810
16	MAY 3392100
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	Panel, Front (White)
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
27	MAY 342055
28	HINGE AND PIN ASSEMBLY
29	Strike, Door
30	Door, Rear
31	DOOR FRONT
32	Handle, Door (White)
33	MAY 3406129
34	MAY 279393
35	Screw, 8-18 x 5/8 (External Ground)
36	MAY 3397659
37	Hinge, Top
38	IDLER ASSEMBLY
39	MAY 8066065
40	MAY 348780
41	BOLT
42	Pulley, Motor
43	MAY 8066206
44	MAY 660658
45	Clamp, Motor (With Shield)
46	MAY 3405246
47	SCREW, 10-16 X 1/2
