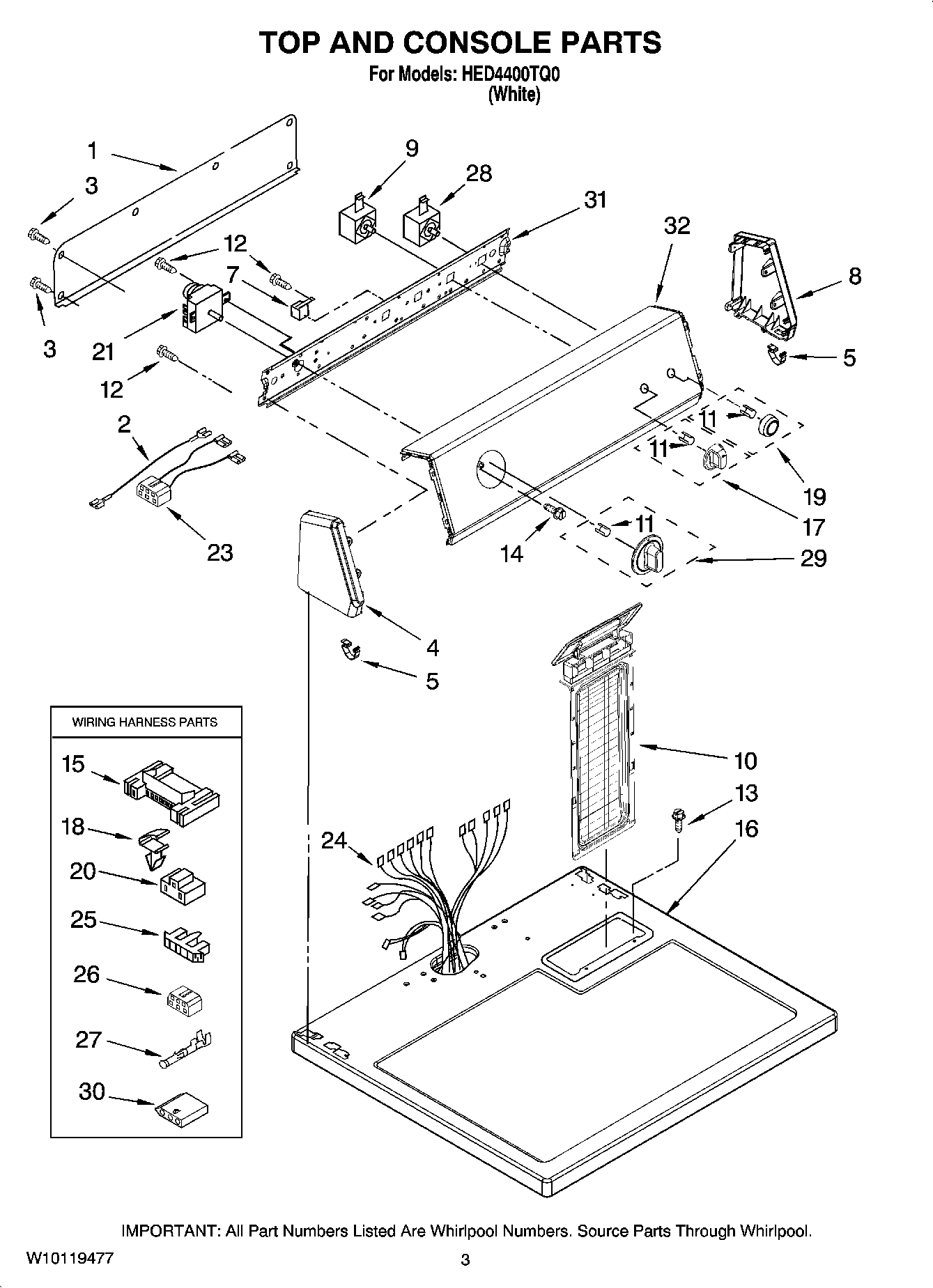

HED4400TQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY 8274261
2Wire, Jumper (Black)
3Screw
4Cap, End (L.H.) (White)
5MAY 8312709
7MAY 694419
8Cap, End (R.H.) (White)
9Switch, Temperature
10Screen, Lint (White)
11CLIP, SPRING
12MAY 8533971
13SCREW
14MAY 8533951
15CONNECTOR (MOTOR)
16MAY 8559800
17Knob, Control (1) (White)
18CLIP, HARNESS
19Knob, Push-To-Start (White)
20Connector (PTS) Relay
21MAY 3979617
23Wire, Jumper (Temperature)
24MAY 8576502
25Connector-Timer
26Connector
27Terminal
28MAY 3398095
29Timer Knob Assembly (White)
30MAY 3936144
31MAY 8579678
32Panel, Control
