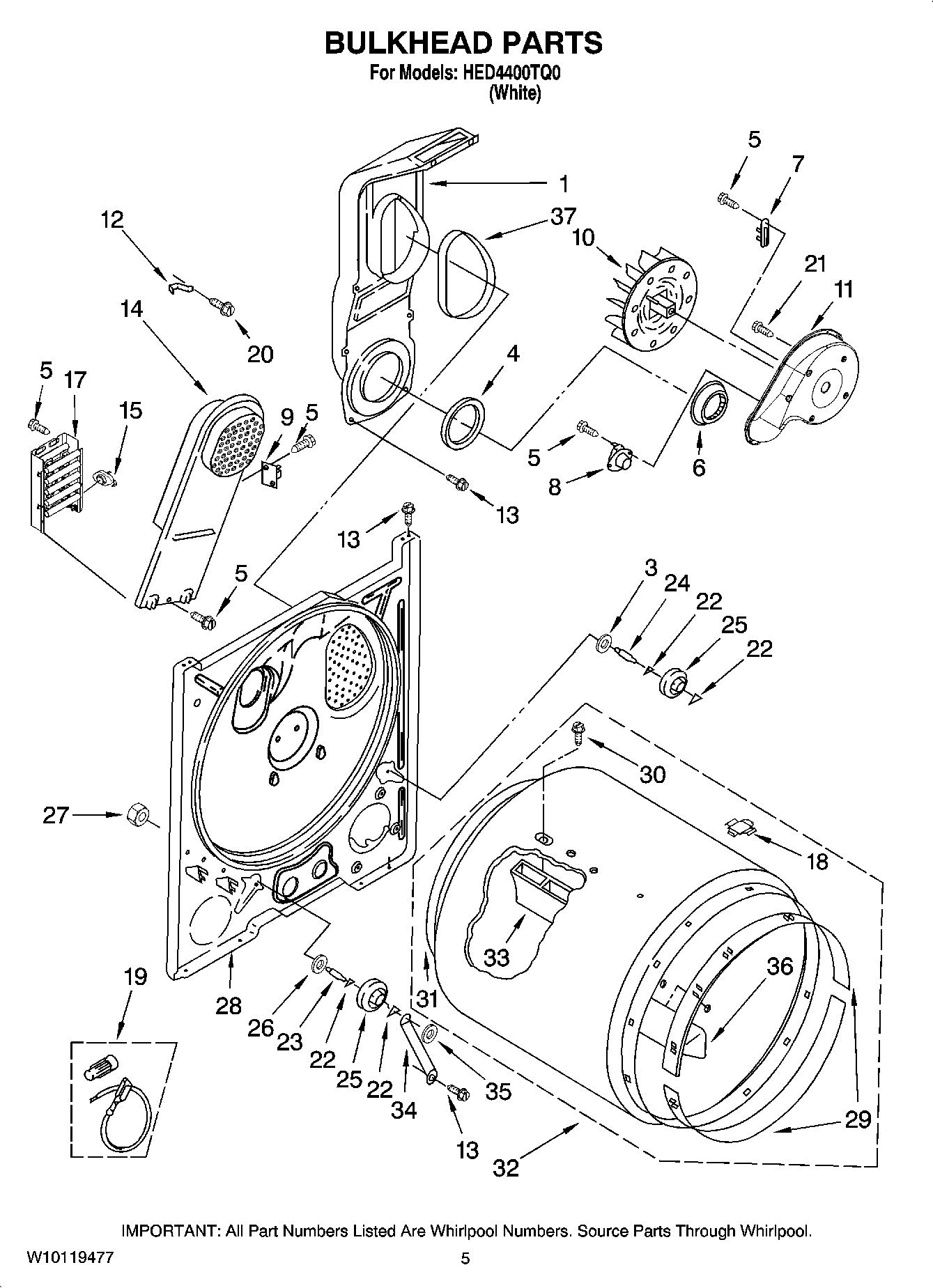

HED4400TQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

HED4400TQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

HED4400TQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
ACCESSORY PARTS (KIT, DRYER VENT TESTING)
ACCESSORY PARTS, KIT, DRYER REPAIR
MAY 4392901
PAINT, BULK (1 qt.) (Biscuit)
MAY 4392899
PAINT, BULK (1 QT. WHITE (UNCUT))
PAINT, TOUCH-UP (1/2OZ. WHITE)
MAY 3406839
1MAY 348368
3WASHER
4MAY 347139
5SCREW,8-18 X 3/8
6MAY 696302
7Fuse, Thermal (91 C)
8MAY 3387134
9MAY 3977393
10Wheel, Blower
11MAY 8577230
12CLIP HEATER BOX
13SCREW
14MAY 8541818
15MAY 3977767
17MAY 3403585
18Plug, Drum Hole
19BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
20Screw
21SCREW
22WASHER, TRI RING
23MAY 3399506
24MAY 3399507
25MAY 3397590
26WASHER
27Nut, 3/8-16
28MAY 3403410
29Bearing, Ring
30MAY W10109200
31MAY 3406130
32MAY 695587
33BAFFLE, DRUM (LONG)
34MAY 3976434
35NUT, PUSH ON
36BAFFLE, DRUM (SHORT)
37MAY 339956
