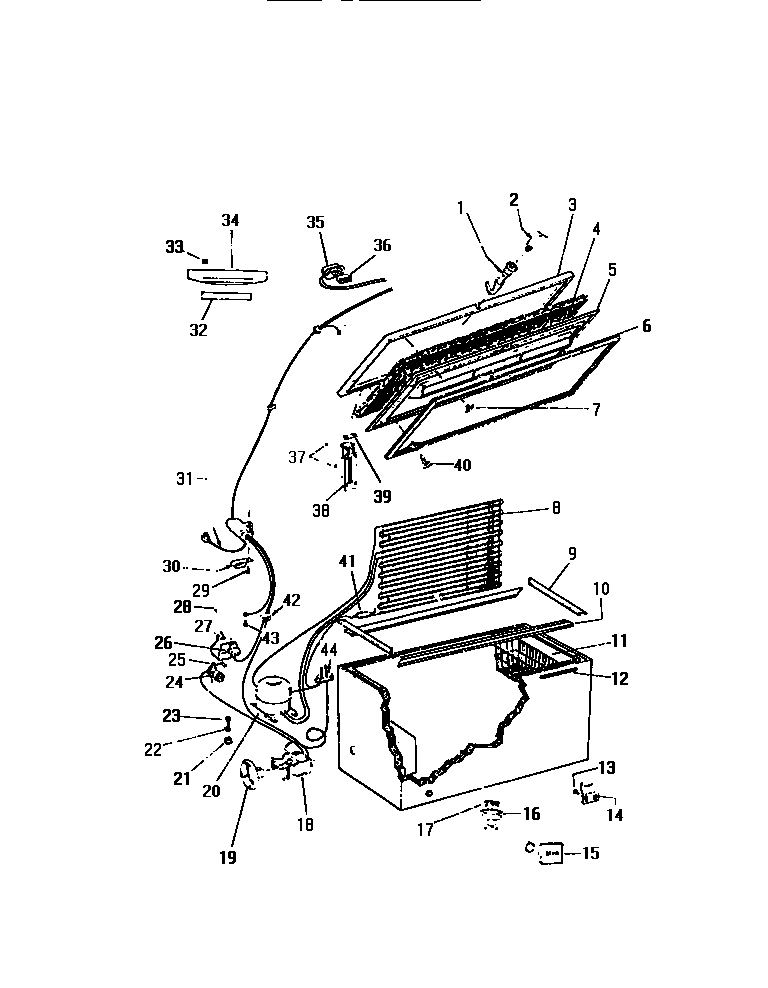

HFS156AM3W 02 – DOOR, CABINET, UNIT

Products

Position	Product
3	WCI F117942-64
4	WCI F112489-2
5	WCI F112553-864
6	WCI F112491-10
8	5303925238 Frigidaire Refrigerator Primary Condenser (O/S1)
9	WCI F119060
10	WCI F112545-2
15	WCI F112549
16	WCI F112548
18	5304496560 Frigidaire Refrigerator Cold Control Kit
19	WCI F127649
20	COMPRESSOR (NON-ILLUSTRATED)
21	216498900 Frigidaire Refrigerator Grommet
22	SLEEVE
23	WCI F59211
24	WCI F126879
25	CLIP
26	RELAY
27	5303006412 Frigidaire Refrigerator Cover Mounting Strap
29	216858001 Frigidaire Refrigerator Screw
30	5304455846 Frigidaire Refrigerator Clamp
31	WCI F116943
32	WCI F121769
33	FASTENER HANDLE (2)
34	WCI F117945
37	SCREW-HINGE
38	297321900 Frigidaire Refrigerator Hinge Assembly
39	WCI F84021-1
40	5303922007 Frigidaire Refrigerator Clip,Pkg 0F 24
41	5303305677 Frigidaire Replacement Filter Dryer Filters
42	CLIP
43	216036601 Frigidaire Refrigerator Screw
44	GROMMET
