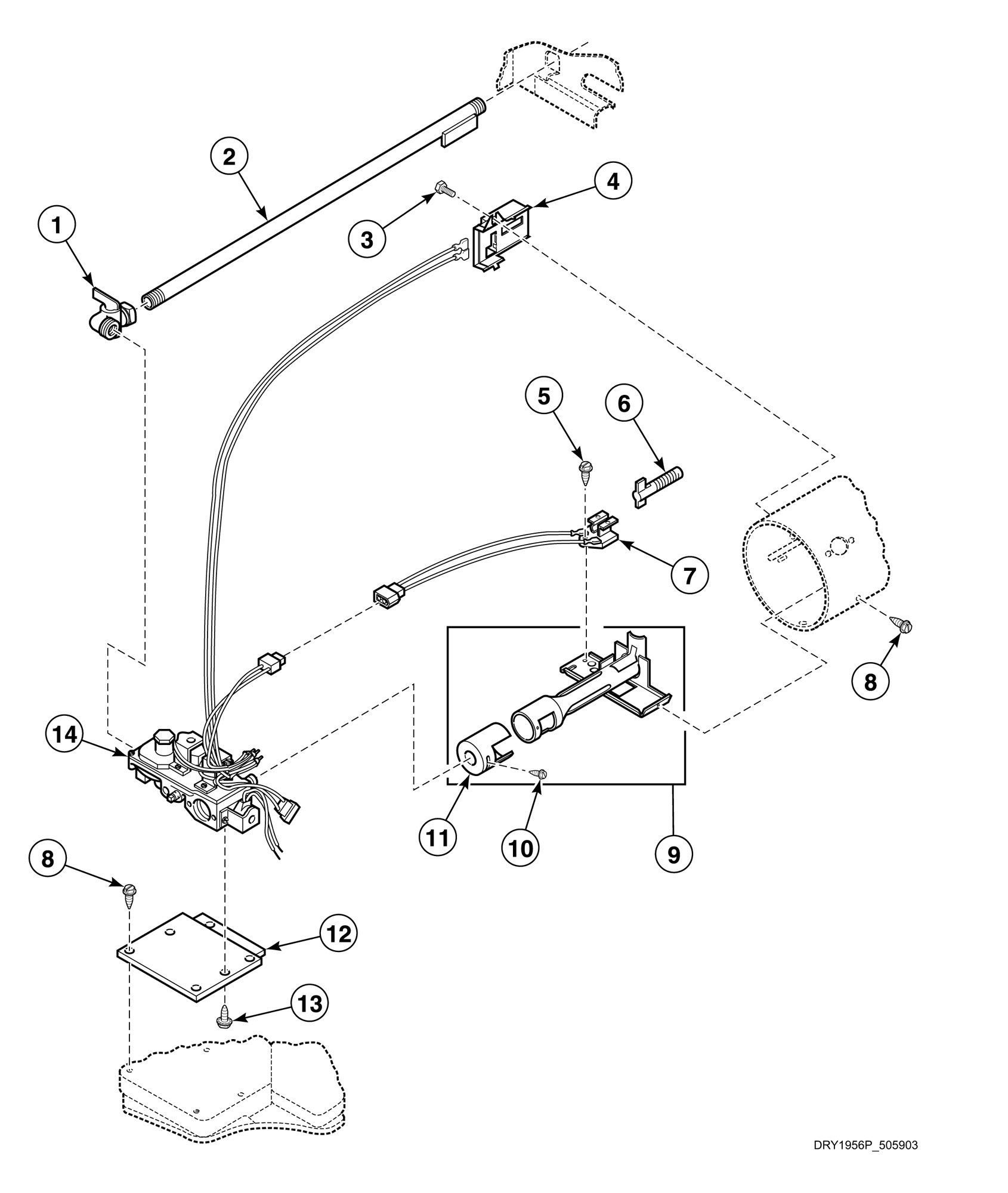

HG2260 Old Style Gas Valve, Igniter and Gas Conversion Kits

HG2260 Old Style Gas Valve, Igniter and Gas Conversion Kits

Written by

in

HG2260 Old Style Gas Valve, Igniter and Gas Conversion Kits

Products

PositionProduct
1Elbow Shut-Off Valve
3Screw
4Sensor
5Screw
6Igniter
7Igniter and Bracket Assembly
7Spring and Connector Assembly (Comment: All other models)
8Screw
9Burner Assembly
12Wire Harness Assembly
13Screw
14Gas Valve Conversion Kit (Comment: N.G. or Mixed Gas, Replaces 56225 Gas Valve Assembly)
