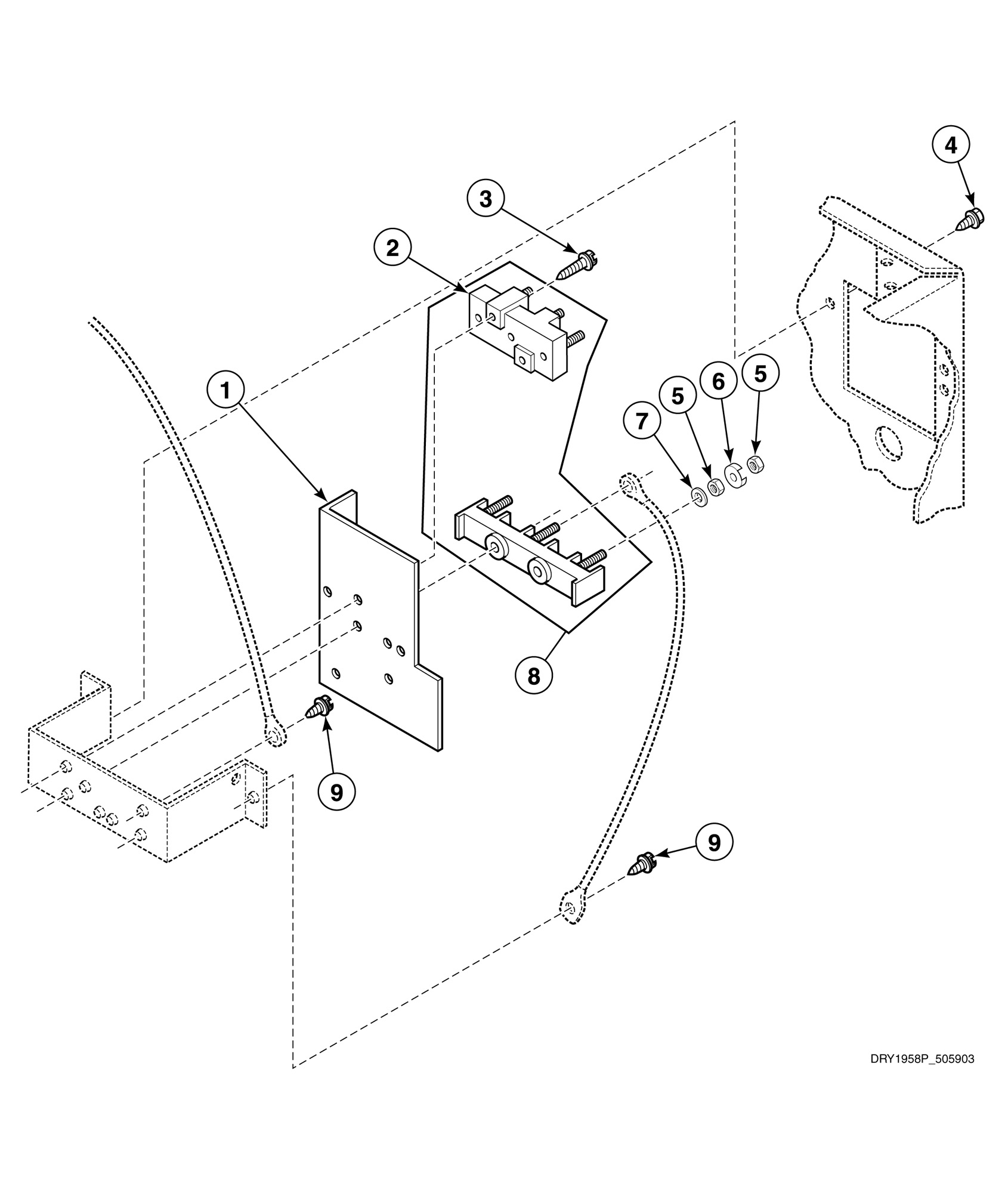

HG2260 Terminal Block
Products
| Position | Product |
|---|---|
| NA | Screw |
| 1 | Terminal Block Shield |
| 2 | Terminal Block |
| 3 | Screw |
| 4 | Screw |
| 5 | Nut |
| 6 | Washer |
| 7 | Washer |
| 8 | Terminal Block Assembly |
| 9 | Screw (Comment: Green) |
HG2260 Terminal Block
| Position | Product |
|---|---|
| NA | Screw |
| 1 | Terminal Block Shield |
| 2 | Terminal Block |
| 3 | Screw |
| 4 | Screw |
| 5 | Nut |
| 6 | Washer |
| 7 | Washer |
| 8 | Terminal Block Assembly |
| 9 | Screw (Comment: Green) |
