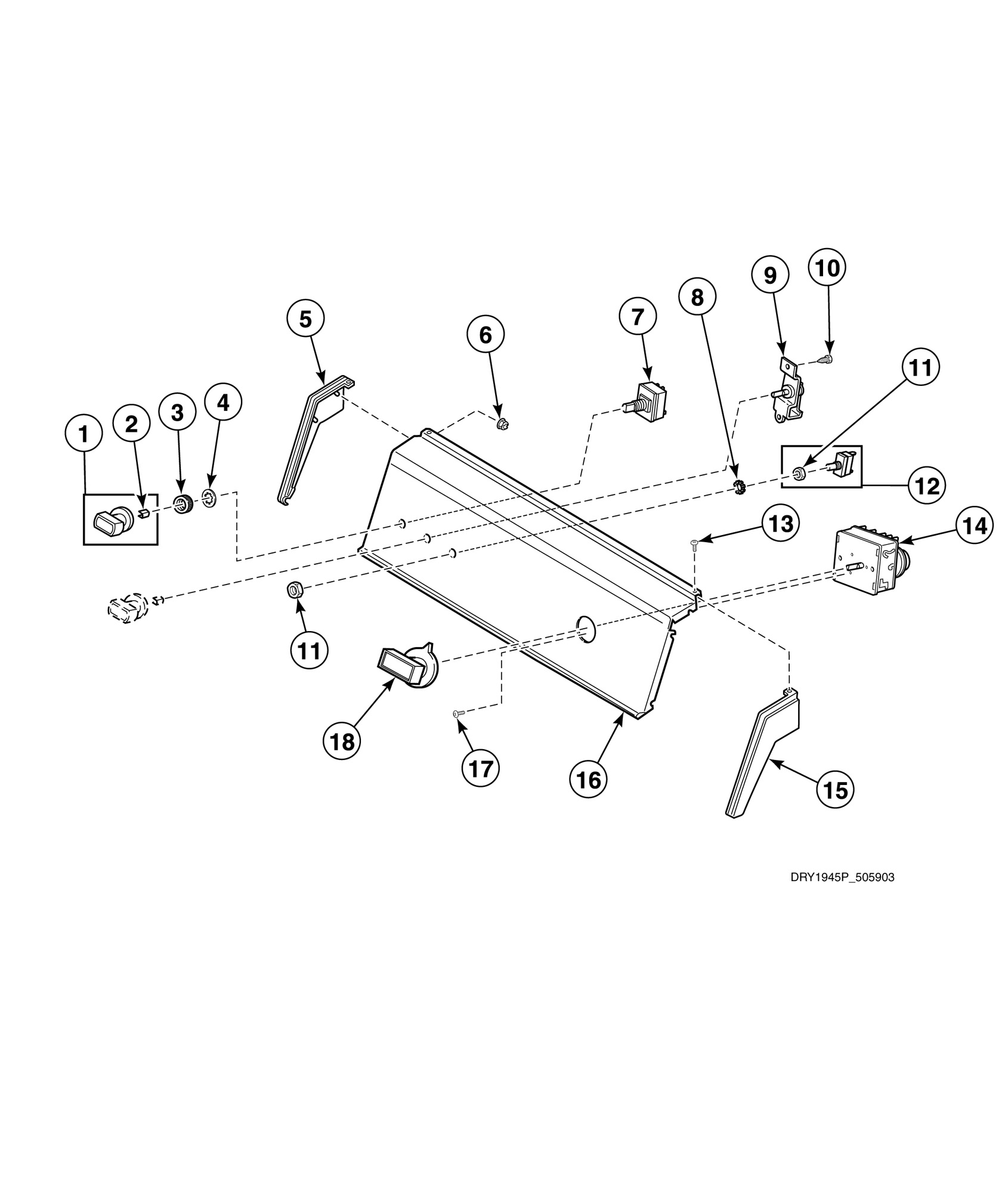

HG2490 Control Panel and Controls (Drawing 3 of 3)
Products
| Position | Product |
|---|---|
| 3 | Nut |
| 4 | Washer |
| 8 | Washer |
| 9 | NOT ON YOUR MODEL |
| 10 | Screw |
| 11 | Nut |
| 12 | Switch Assembly (Comment: Includes item 4) |
| 13 | Screw |
| 18 | Wire Harness Assembly |
