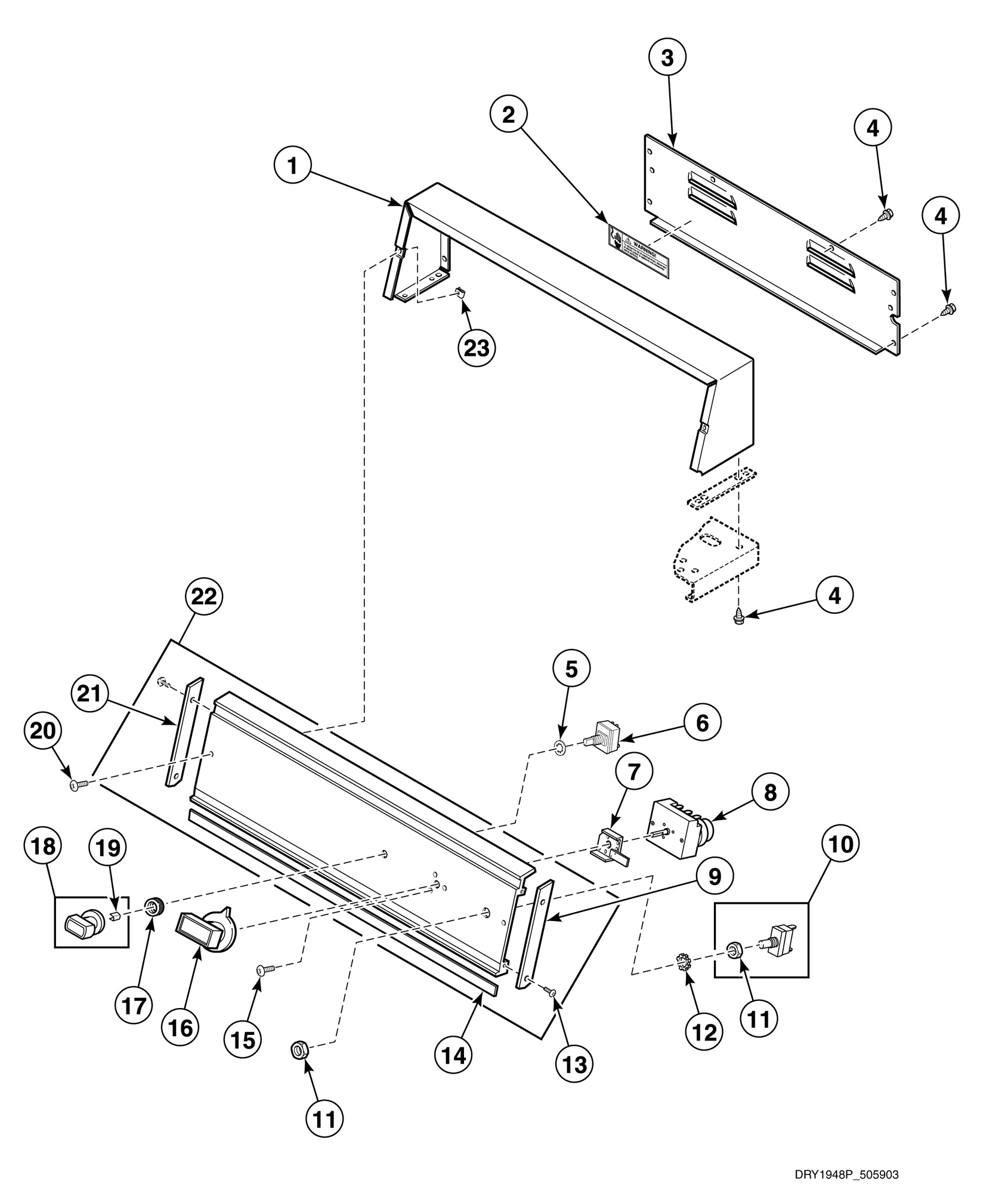

HG2980 Control Panel, Control Hood and Controls

Products

PositionProduct
2Disconnect Power Warning Label
4Screw
5Washer
6Fabric Selector Switch
10Switch Assembly (Comment: Includes item 4)
11Nut
12Washer
13Screw
17Nut
20Screw
23Wire Harness Assembly
