HG3009 Loading Door, Front Panel and Seals – Aparts

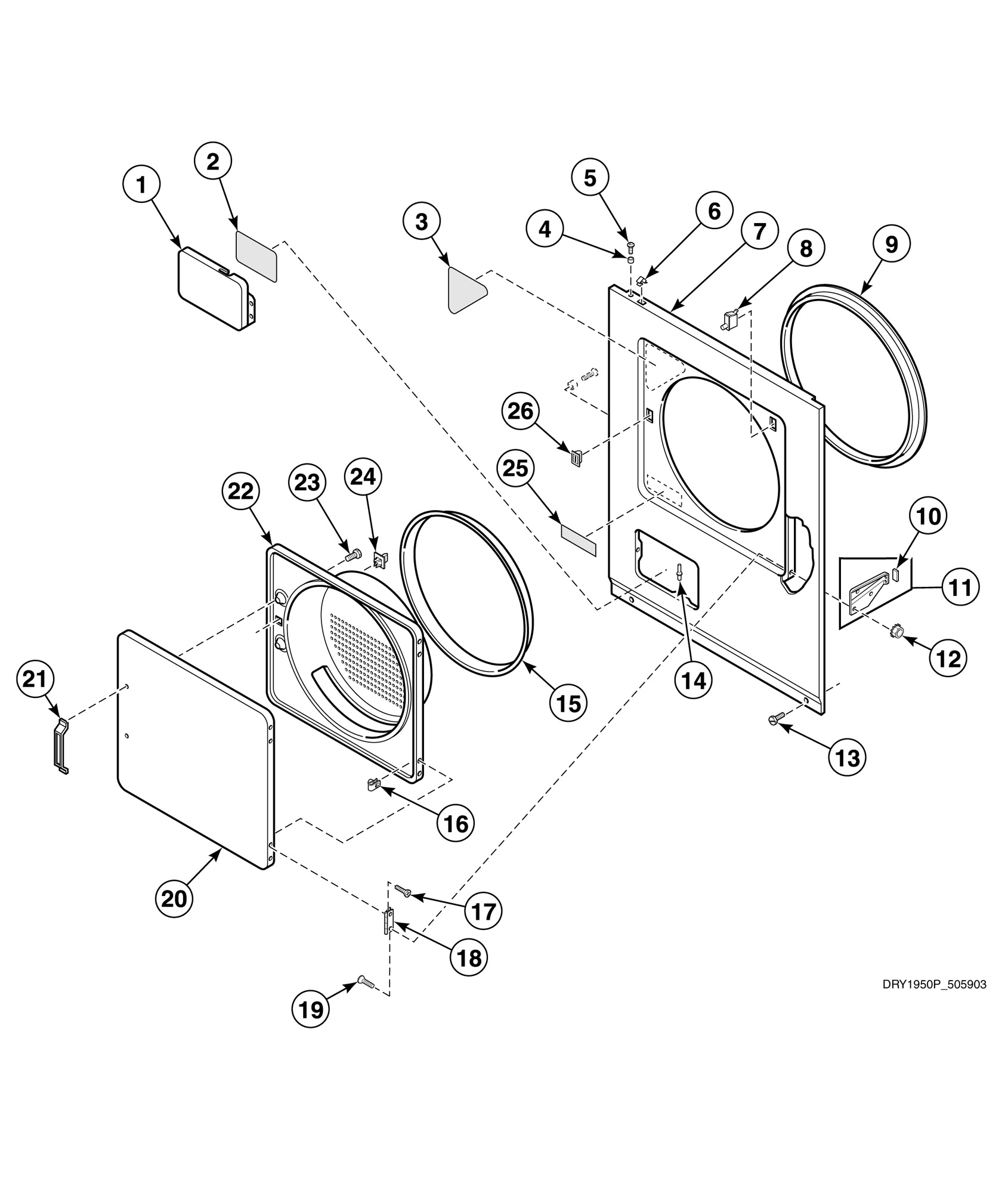

HG3009 Loading Door, Front Panel and Seals

Products

Position	Product
1	Access Door (Comment: White)
2	Gas Clearance Label
3	Warning/Caution Label
4	Panel Locator
5	Screw
6	Speed Clip
8	Switch
9	Front Panel Seal
10	Bumper Pad
12	Nut
13	Screw
14	Support Barrel
15	Door Seal (Comment: White)
16	Nut
17	Screw
18	Hinge
19	Screw
21	Door Pull
22	Door Liner
23	Screw
24	Door Strike
25	Wire Harness Assembly
26	Door Catch Assembly
