HG4009 New Style Gas Valve, Igniter and Gas Conversion Kits

Products

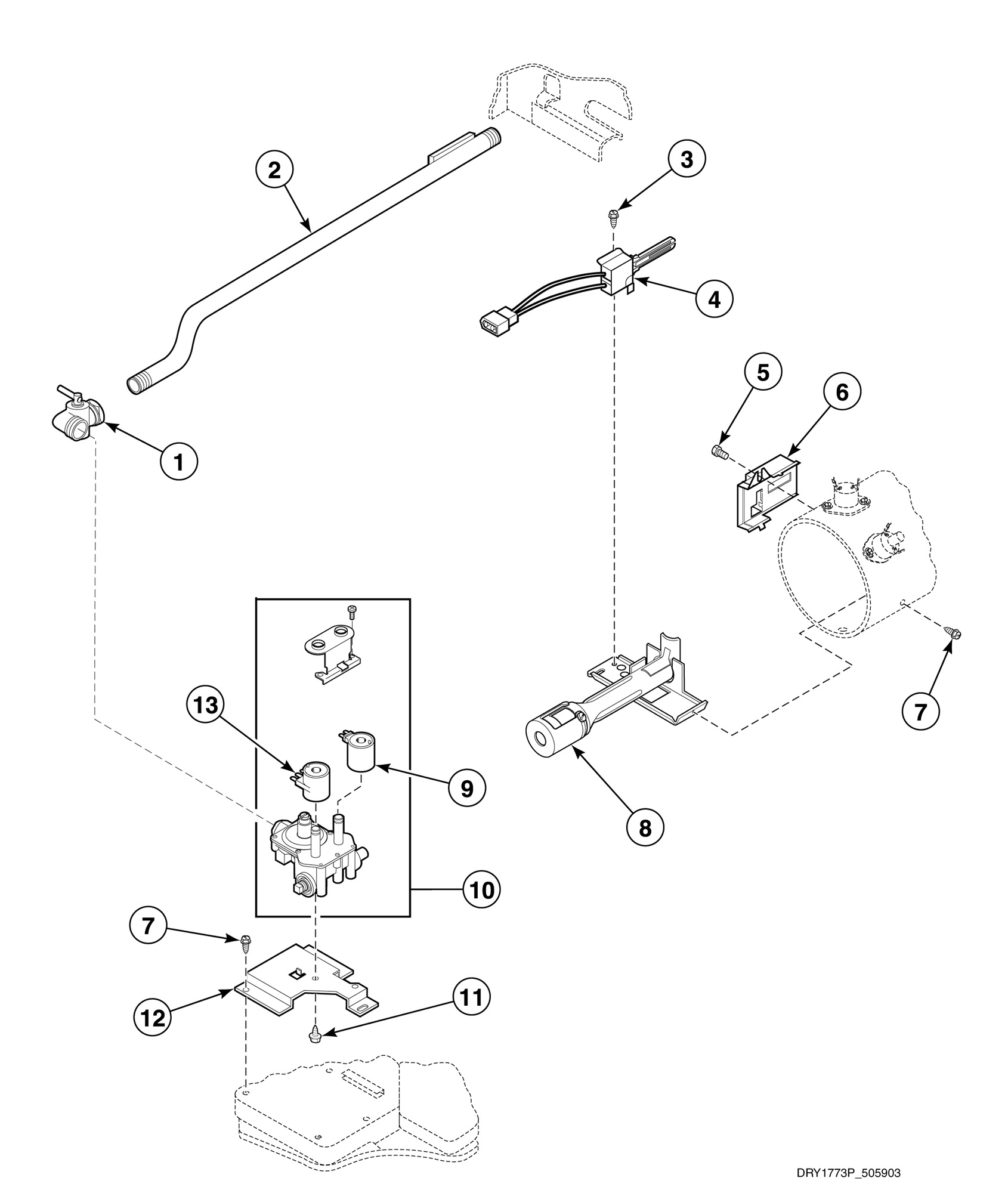

PositionProduct
NAL.P. Conversion Kit (Comment: Used to convert dryers from Natural Gas (N.G.) or Mixed Gas to Liquid Petroleum Gas (L.P.))
NAN.G. Conversion Kit (Comment: Used to convert dryers from L.P. to N.G. or Mixed Gas)
1Elbow Shut-Off Valve
2Wire Harness Assembly
3Screw
4Igniter and Bracket Assembly
5Screw
6Sensor
7Screw
8Burner Assembly
9Secondary Coil
10Gas Valve Assembly
11Screw
12Gas Valve Mounting Bracket
13Booster and Holding Coil
