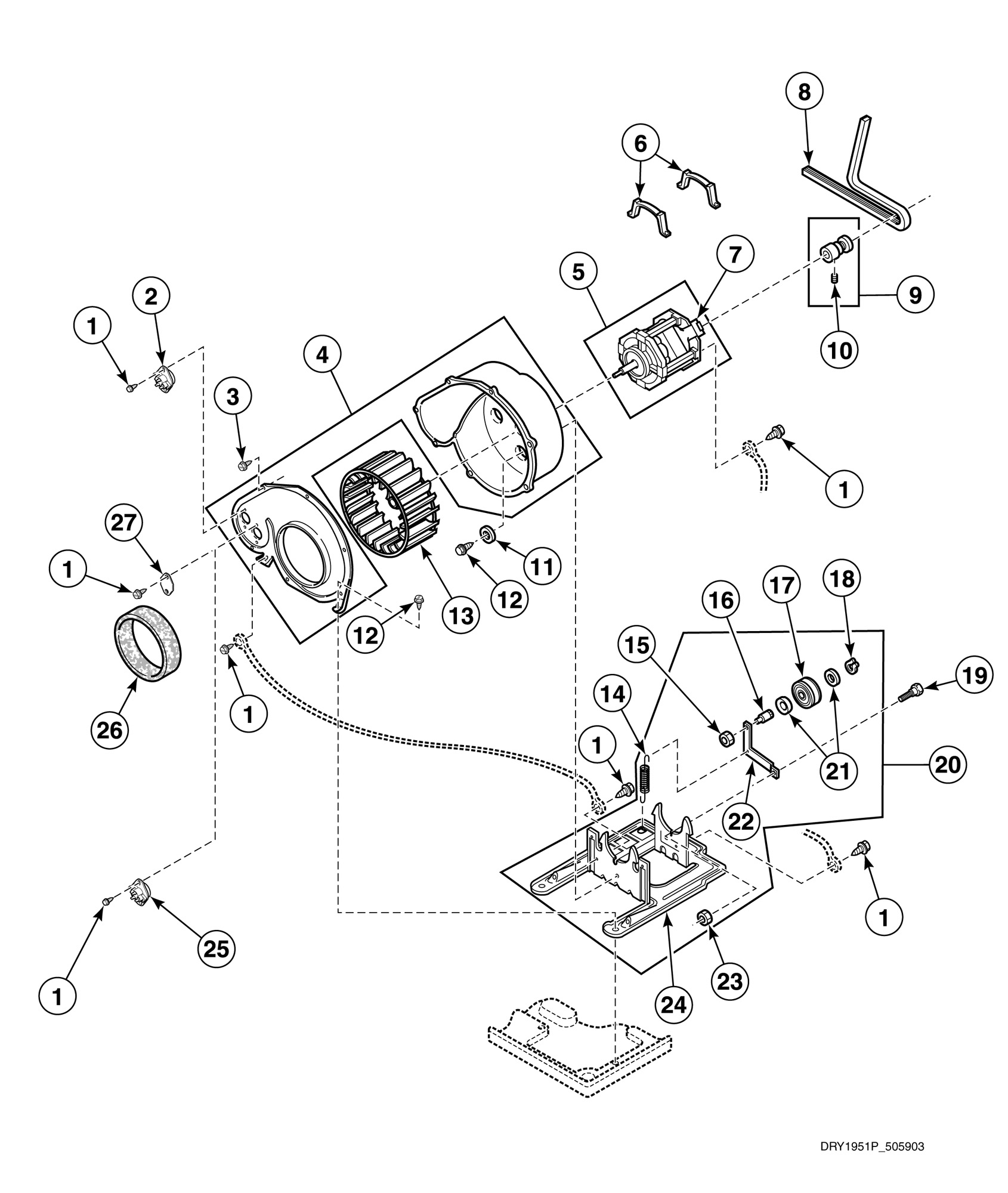

HG4280 Motor, Exhaust Fan and Belt

Products

Position	Product
1	Screw
2	Thermostat
3	Screw
4	Blower Housing and Cover Kit
5	Motor Kit (Comment: Includes switch)
6	Motor Mount Clamp
8	Cylinder Belt
9	Motor Pulley Kit (Comment: Includes item 10)
10	Screw
11	Washer
12	Screw
13	Blower Fan Assembly
14	Idler Spring
15	Nut
16	Shaft
17	Idler Wheel and Bearing Assembly
18	Retaining Ring
20	Motor Mount and Idler Assembly
21	Washer
23	Nut
24	Motor Mount
25	Wire Harness Assembly
26	Seal
27	NOT ON YOUR MODEL
