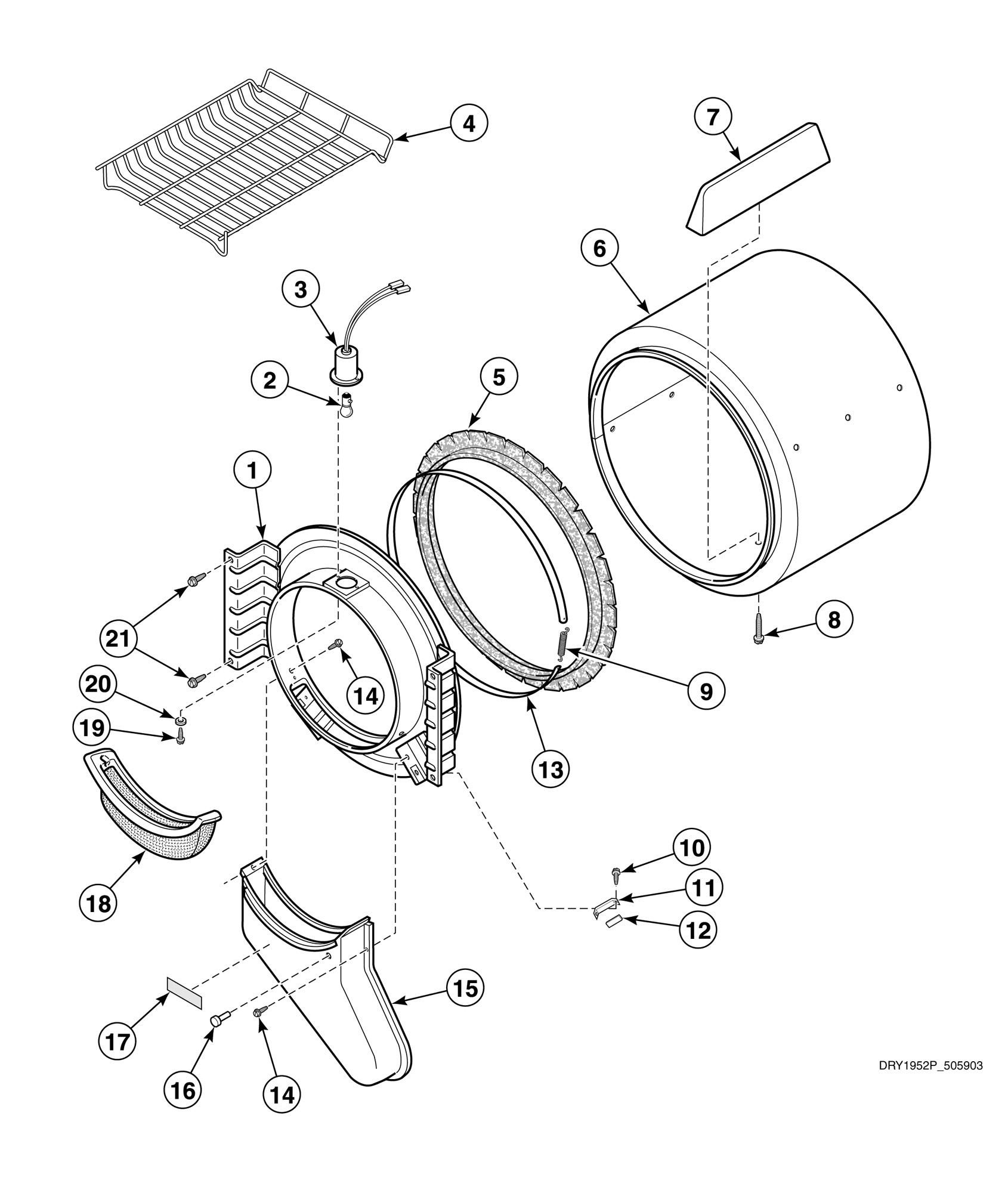

HG6360 Front Bulkhead, Air Duct, Felt Seal and Cylinder

Written by

Products

Position	Product
3	NOT ON YOUR MODEL
5	Seal Assembly
6	Cylinder Assembly (Comment: Includes baffles)
7	Cylinder Baffle (Comment: Short, 2 required)
8	Screw
9	Spring
10	Screw
11	Cylinder Glide
12	Felt Pad
13	Seal Strap
14	Screw
15	Air Duct Assembly
17	Disconnect Power Warning Label
18	Lint Filter
19	Wire Harness Assembly
20	Washer
21	Screw
