HG7009 Cabinet, Exhaust Duct and Base
Written by
in

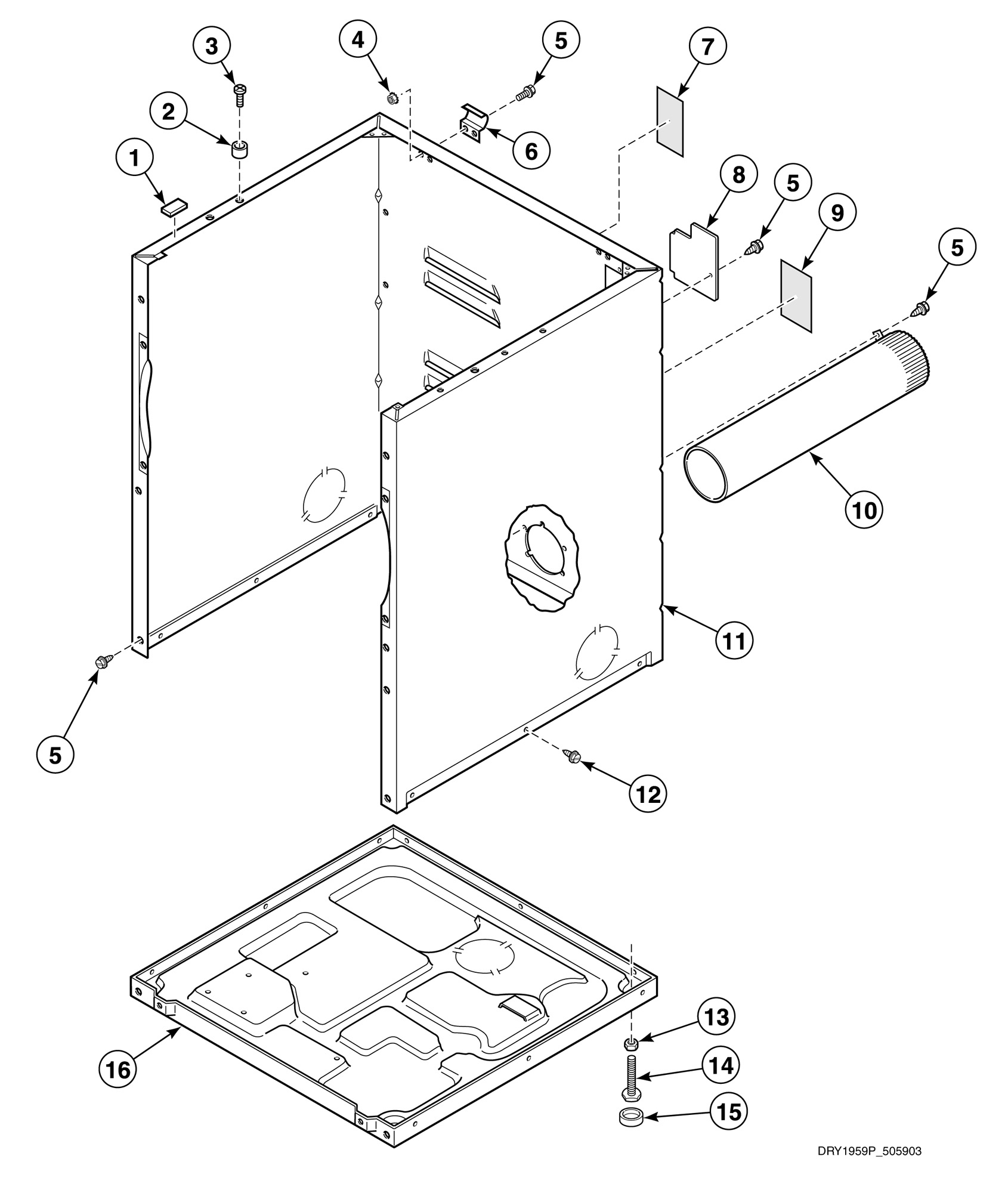

HG7009 Cabinet, Exhaust Duct and Base
Products
| Position | Product |
|---|---|
| 1 | Bumper Pad |
| 2 | Panel Locator |
| 3 | Screw |
| 4 | Nut |
| 5 | Screw |
| 7 | Gas Clearance Label |
| 8 | Access Cover Plate |
| 9 | NOT ON YOUR MODEL |
| 12 | Screw (Comment: Green) |
| 13 | Nut |
| 14 | Screw |
| 15 | Rubber Foot |
| 16 | Wire Harness Assembly |
