HG7290 Old Style Gas Valve, Igniter and Gas Conversion Kits

Products

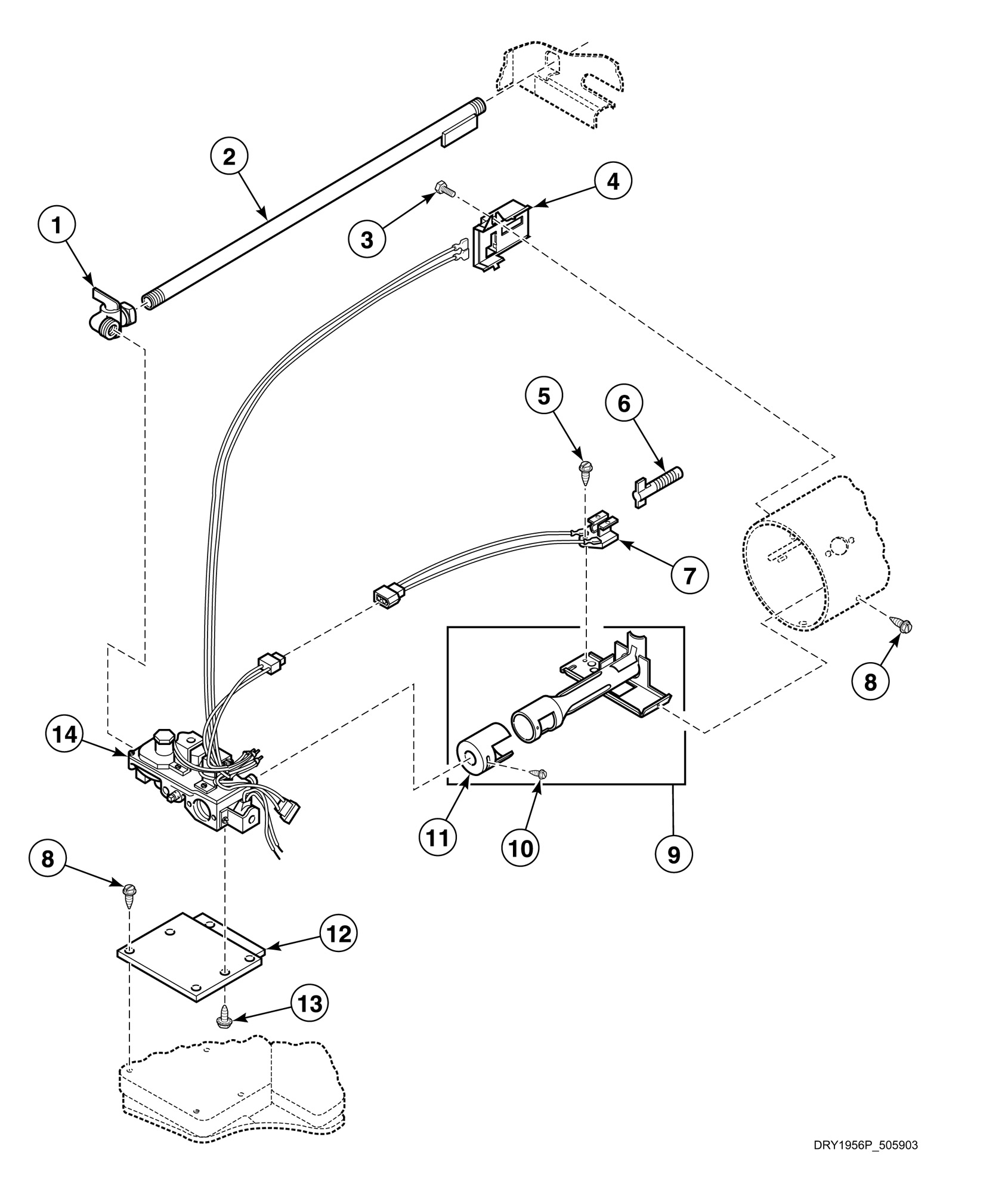

PositionProduct
NAL.P. Conversion Kit Assembly (Comment: Used to convert dryers from Natural Gas (N.G.) or Mixed Gas to Liquid Petroleum Gas (L.P.))
NAWire Harness Assembly
1Elbow Shut-Off Valve
3Screw
4Sensor
5Screw
6Igniter
7Igniter and Bracket Assembly
7Spring and Connector Assembly (Comment: All other models)
8Screw
9Burner Assembly
13Screw
14Gas Valve Conversion Kit (Comment: N.G. or Mixed Gas, Replaces 56225 Gas Valve Assembly)
