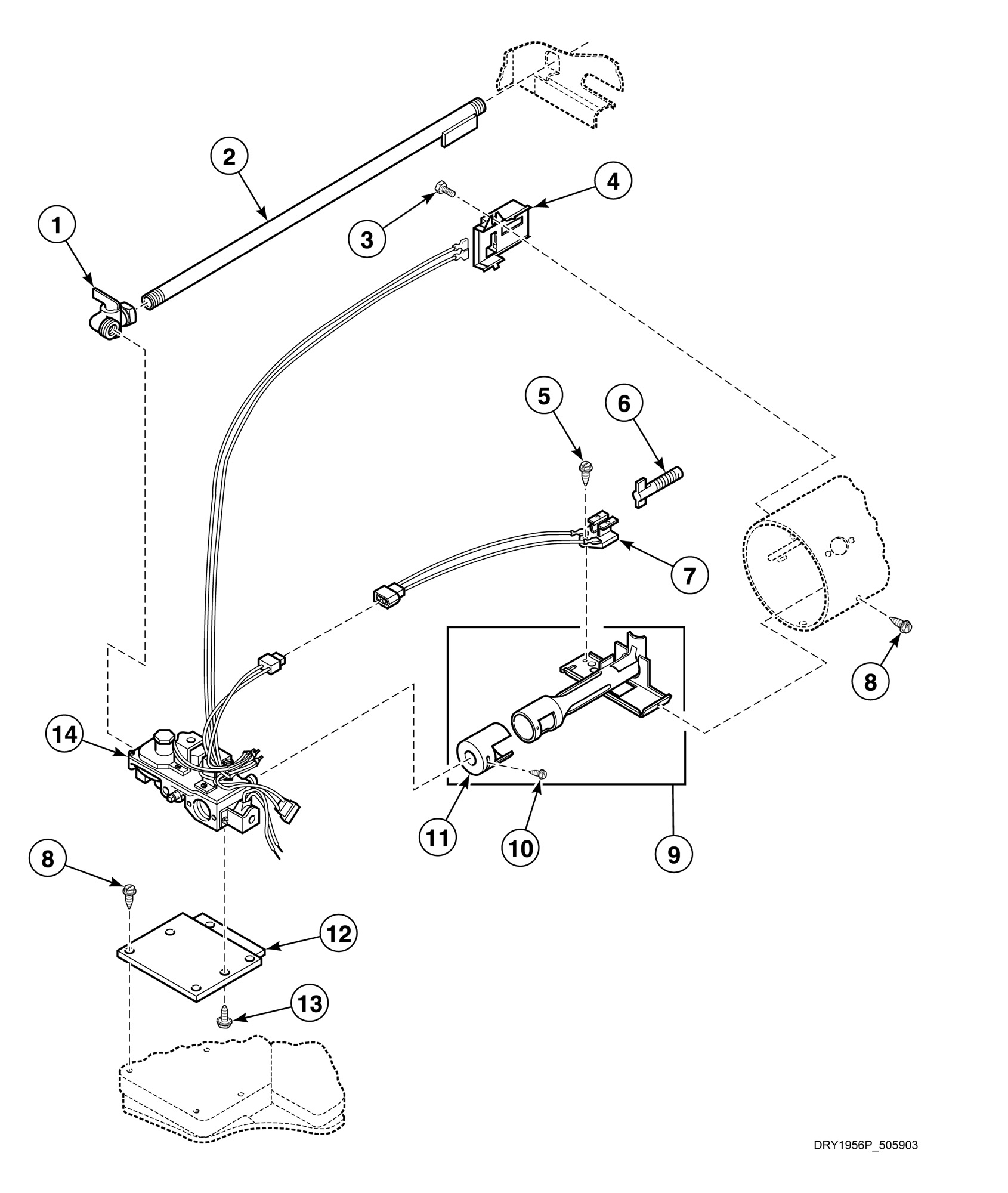

HG9260 Old Style Gas Valve, Igniter and Gas Conversion Kits

HG9260 Old Style Gas Valve, Igniter and Gas Conversion Kits

Written by

in

HG9260 Old Style Gas Valve, Igniter and Gas Conversion Kits

Products

PositionProduct
NAL.P. Conversion Kit Assembly (Comment: Used to convert dryers from Natural Gas (N.G.) or Mixed Gas to Liquid Petroleum Gas (L.P.))
NAWire Harness Assembly
1Elbow Shut-Off Valve
3Screw
4Sensor
5Screw
6Igniter
7Igniter and Bracket Assembly
7Spring and Connector Assembly (Comment: All other models)
8Screw
9Burner Assembly
13Screw
14Gas Valve Conversion Kit (Comment: N.G. or Mixed Gas, Replaces 56225 Gas Valve Assembly)
