HG9280 Loading Door, Front Panel and Seals

HG9280 Loading Door, Front Panel and Seals

Written by

in

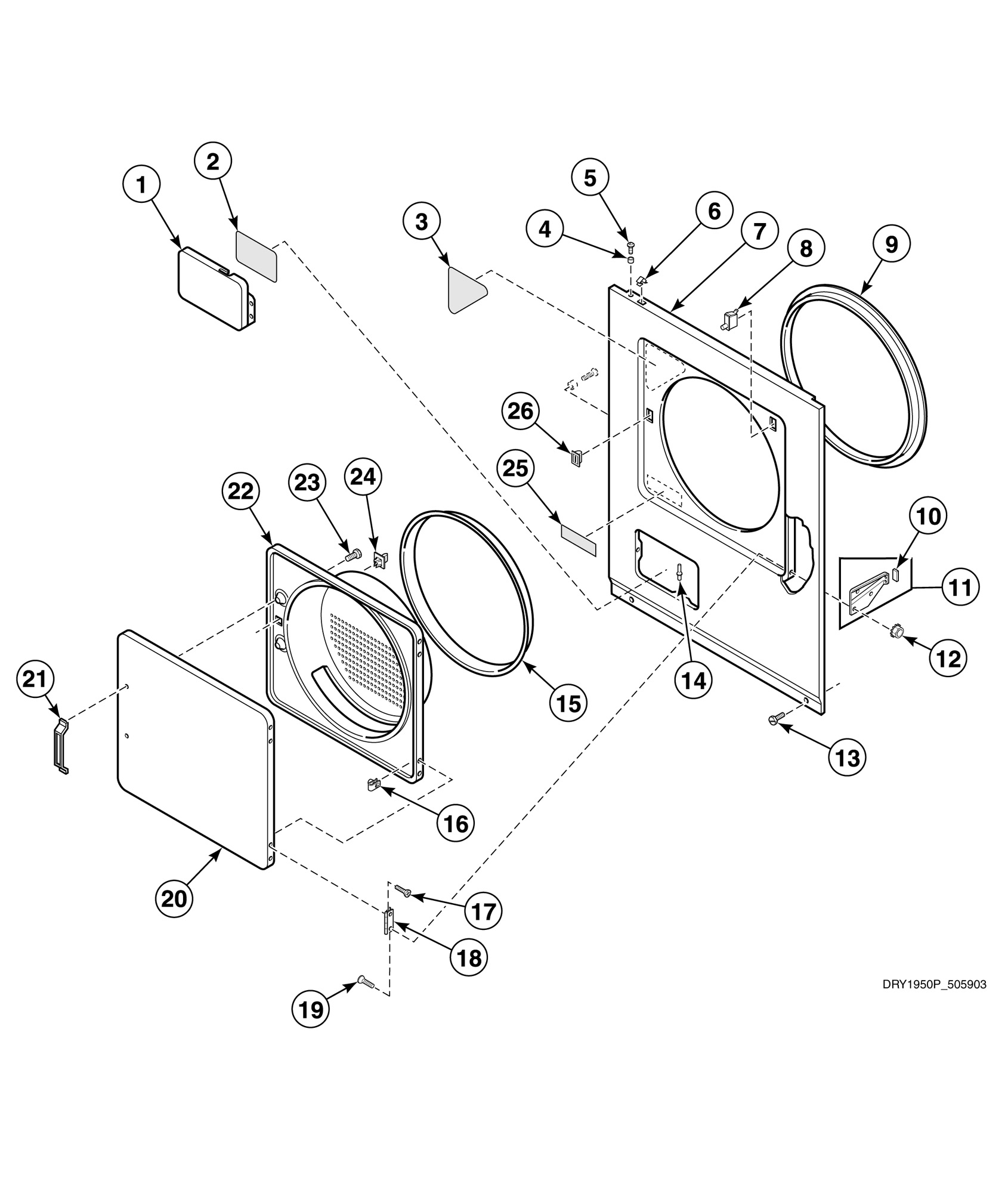

HG9280 Loading Door, Front Panel and Seals

Products

PositionProduct
2Gas Clearance Label
3Warning/Caution Label
4Panel Locator
5Screw
6Speed Clip
8Switch
9Front Panel Seal
13Screw
14Support Barrel
15Door Seal (Comment: White)
16Nut
17Screw
18Hinge
19Screw
21Door Pull
22Door Liner
23Screw
24Door Strike
25Wire Harness Assembly
26Door Catch Assembly
