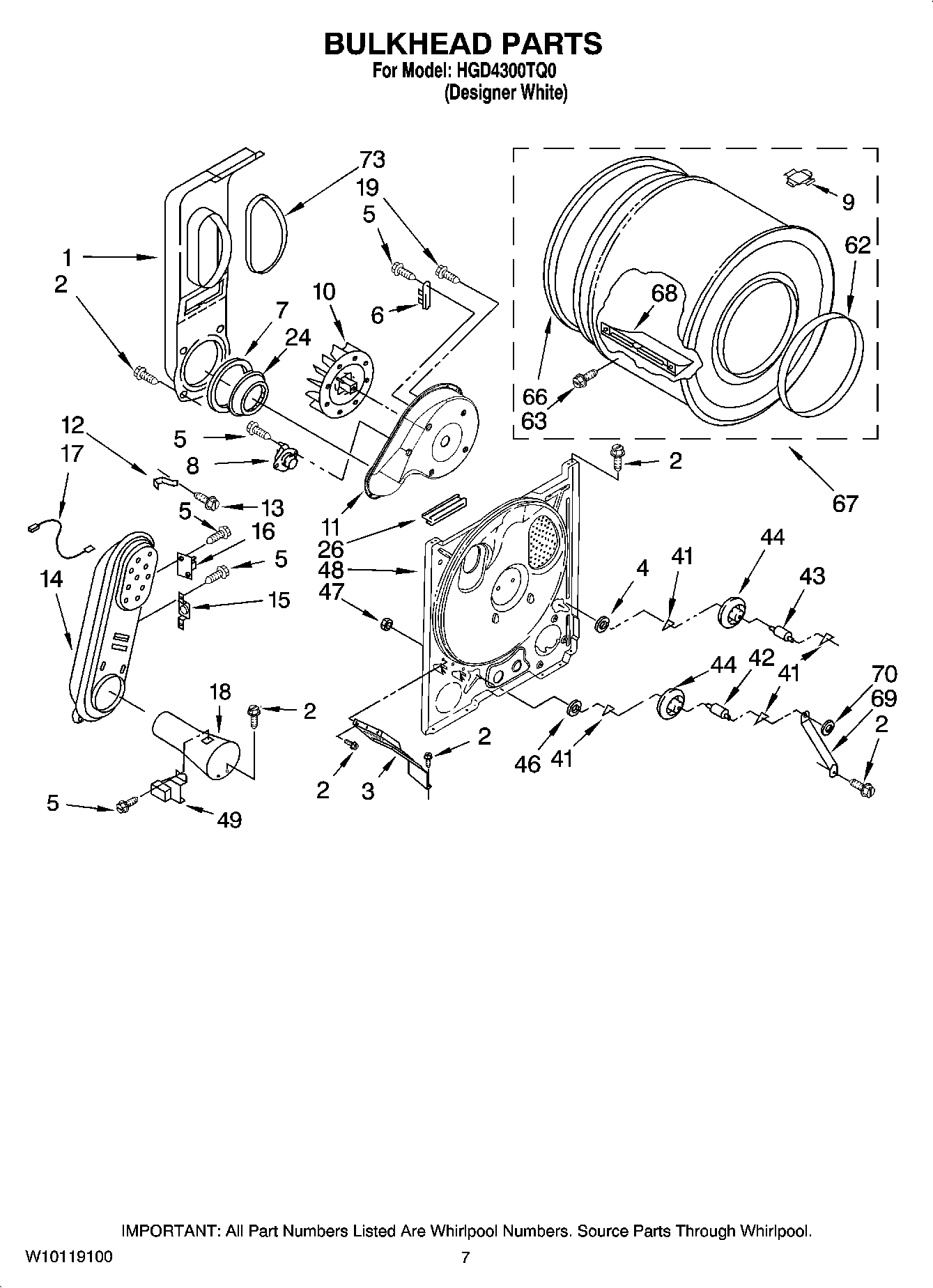

HGD4300TQ0 04 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
	Dry Rack
	ACCESSORY PARTS, KIT, DRYER REPAIR
	ACCESSORY PARTS, KIT, HOLD DOWN
	PAINT, TOUCH-UP (1/2OZ. WHITE)
	PAINT, BULK (1 QT. WHITE (UNCUT))
1	MAY 694283
2	SCREW
3	BRACKET, BULKHEAD CHUTE
4	WASHER
5	SCREW,8-18 X 3/8
6	Fuse, Thermal (91 C)
7	MAY 347139
8	MAY 3387134
9	Plug, Drum Hole
10	Wheel, Blower
11	MAY 8577230
12	CLIP HEATER BOX
13	Screw
14	BOX, HEATER (96C)
15	Thermostat, 205 F (96C)
16	MAY 280010
17	WIRE JUMPER
18	MAY 8066048
19	SCREW
24	MAY 696302
26	MAY 3392247
41	WASHER, TRI RING
42	MAY 3399506
43	MAY 3399507
44	MAY 3397590
46	WASHER
47	Nut, 3/8-16
48	MAY 8529955
49	MAY 338906
62	MAY 3394509
63	MAY W10109200
66	MAY 8066085
67	MAY 3396777
68	MAY 342847
69	Bracket, Support
70	NUT, PUSH ON
73	MAY 339956
