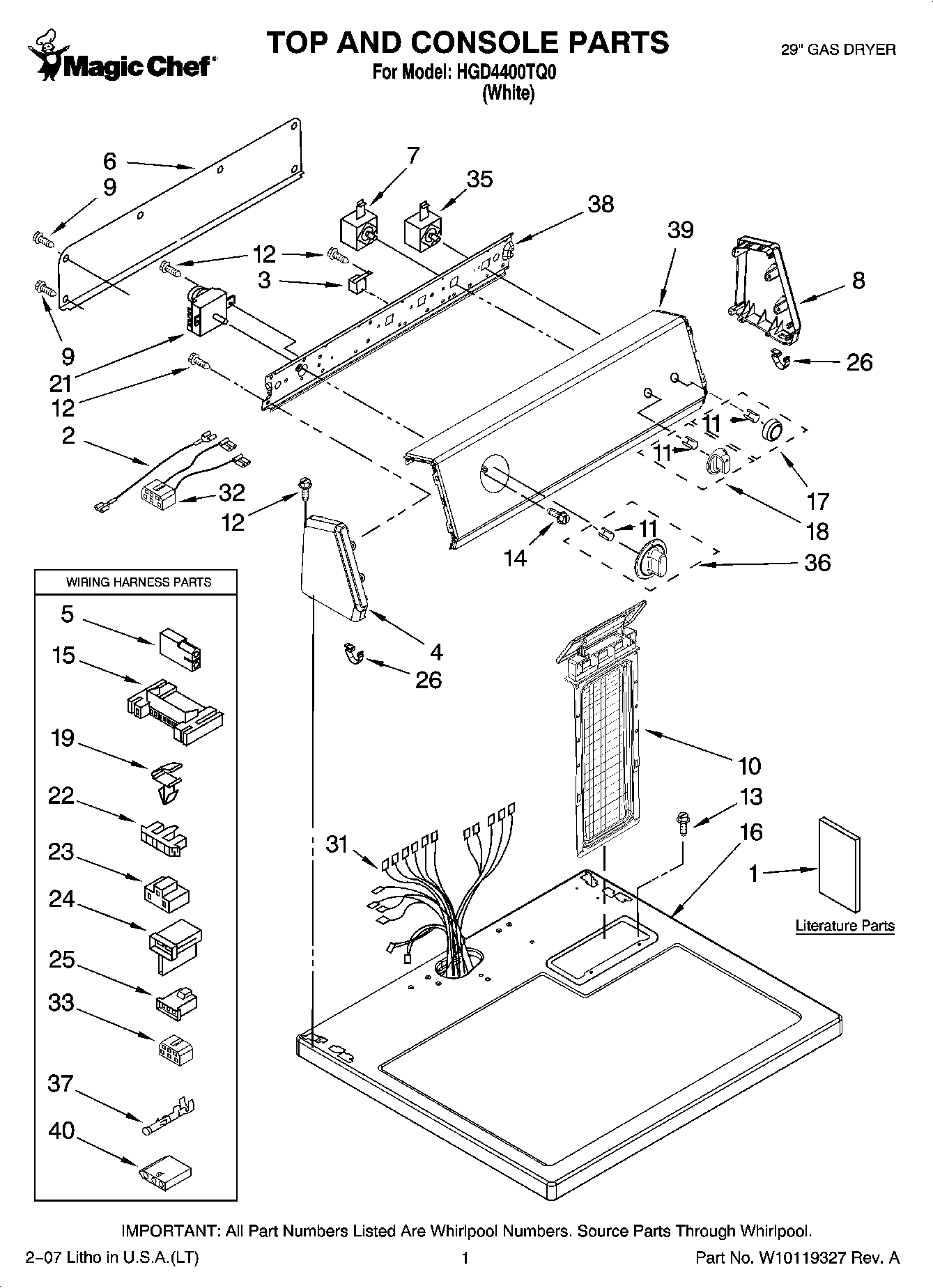

HGD4400TQ0 01 – TOP AND CONSOLE PARTS

HGD4400TQ0 01 – TOP AND CONSOLE PARTS

Written by

in

HGD4400TQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10088773
1Installation Instructions
1MAY W10089176
1MAY 8576817
2Wire, Jumper (Black)
3MAY 694419
4Cap, End (L.H.) (White)
5Plug, 2-Way Terminal
6MAY 8274261
7Switch, Temperature
8Cap, End (R.H.) (White)
9Screw
10Screen, Lint (White)
11CLIP, SPRING
12MAY 8533971
13SCREW
14MAY 8533951
15CONNECTOR (MOTOR)
16MAY 8559800
17Knob, Push-To-Start (White)
18Knob, Control (1) (White)
19CLIP, HARNESS
21Timer Assembly (60 Hz.)
22Connector-Timer
23Connector (PTS) Relay
24CONNECTOR, 2-POSITION (GAS VALVE)
25MAY 3403498
26MAY 8312709
31MAY 8299878
32Wire, Jumper (Temperature)
33Connector
35MAY 3398095
36Timer Knob Assembly (White)
37Terminal
38MAY 8579678
39Panel, Control
40MAY 3936144
