HLC1700AXS BLOWER & HEATING SYSTEM

HLC1700AXS BLOWER & HEATING SYSTEM

Written by

in

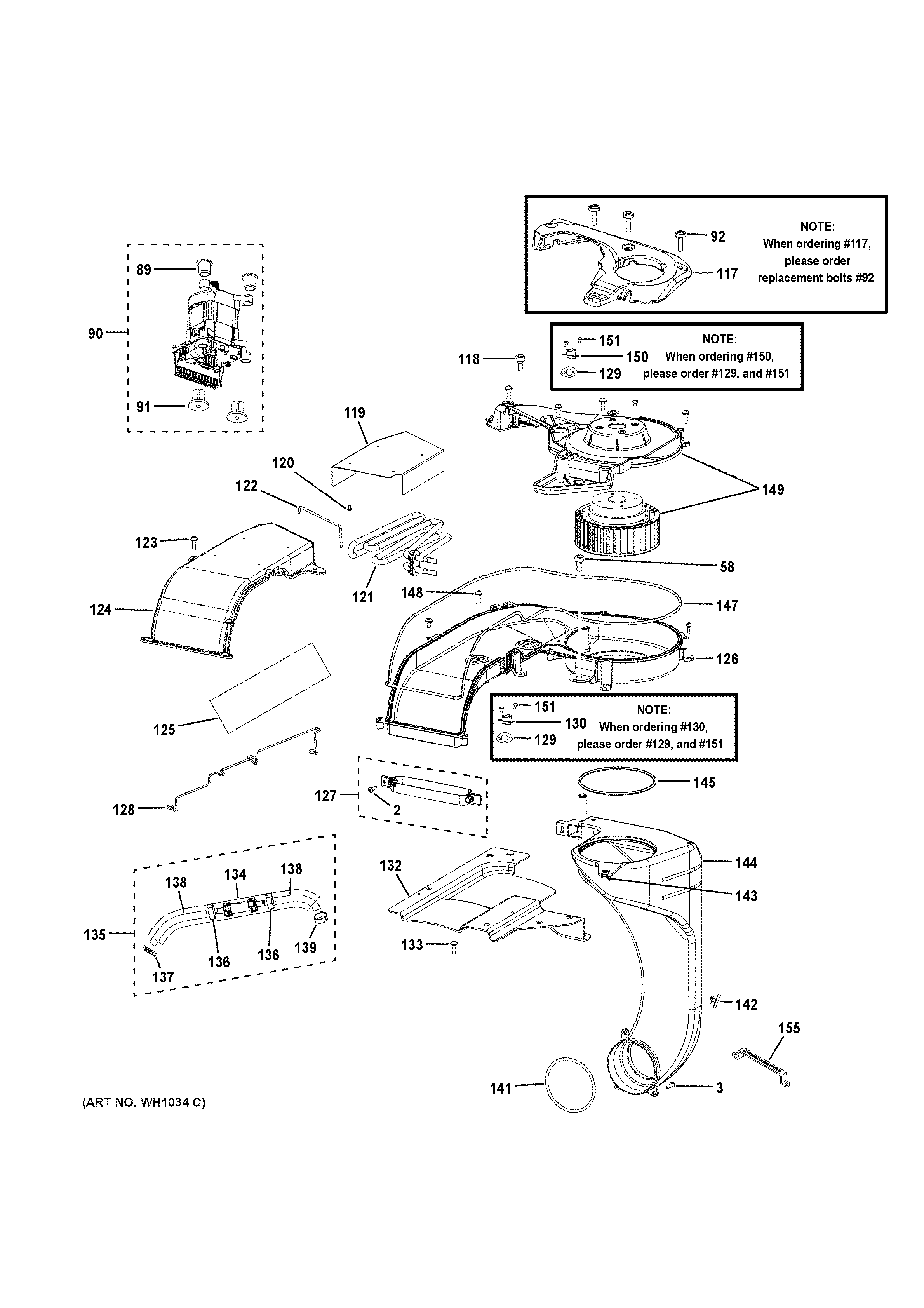

HLC1700AXS BLOWER & HEATING SYSTEM

Products

PositionProduct
2WH02X26267 GE Screw
3WH02X26189 GE Tapping Screw
58WH02X26236 GE Screw Assembly
89RUBBER MOTOR BUSHING
90WH18X27723 GE Washer Dryer Motor 115V 60Hz
91PLASTIC MOTOR BUSHING
92WH02X27145 GE Bolt with Loctite
117UPPER COUNTERWEIGHT
118WH02X26924 GE Belt Protector Bolt
119WH11X27150 GE Washer Baffle Board
120WH02X27151 GE Heater Baffle Screw
121WE11X27152 GE Heater Assembly
122WE11X27153 GE Dryer Sealing Strip
123WE02X27154 GE Heated Air Plenum Cover Screw
124WE11X27155 GE Dryer Under Shell
125FELT – AIR PLENUM COVER
126WE11X27156 GE Dryer Undershell
127PLENUM CLAMP
128WE15X27157 GE Main Harness Wiring Support
129WE04X27158 GE Dryer Thermostat Gasket
130WE04X27736 GE High Limit Thermostat
132WE01X27160 GE Dryer Base
133WE02X27161 GE Air Plenum to Tub Bracket
134WE01X27162 GE Dryer Isolation Sleeve
135WE04X27737 GE One-Way Valve
136WE01X27163 GE Dryer Hose Clamp
137WH01X26244 GE Clamp Tube
138WE01X27164 GE Dryer Hose to Condenser Valve
139CONDENSER TANK FILL TUBE CLAMP
141WH01X27166 GE Washer Outer Cylinder
142WE01X27167 GE Dryer Cushion Seal
143CONDENSER TANK RETAINER CLIP
144WE01X27139 GE Condenser Dryer
145WH01X27138 GE Washer Sling Strip
147WH01X27137 GE Wash Mach Seal Ring of Prote
148WH02X27136 GE Heated Air Plenum Screw
149WE16X27738 GE Fan Motor Bracket Assembly
150WE04X27739 GE Manual Reset Thermostat
151WH02X27135 GE Screw Thermostat
155CONDENSER CLAMP
