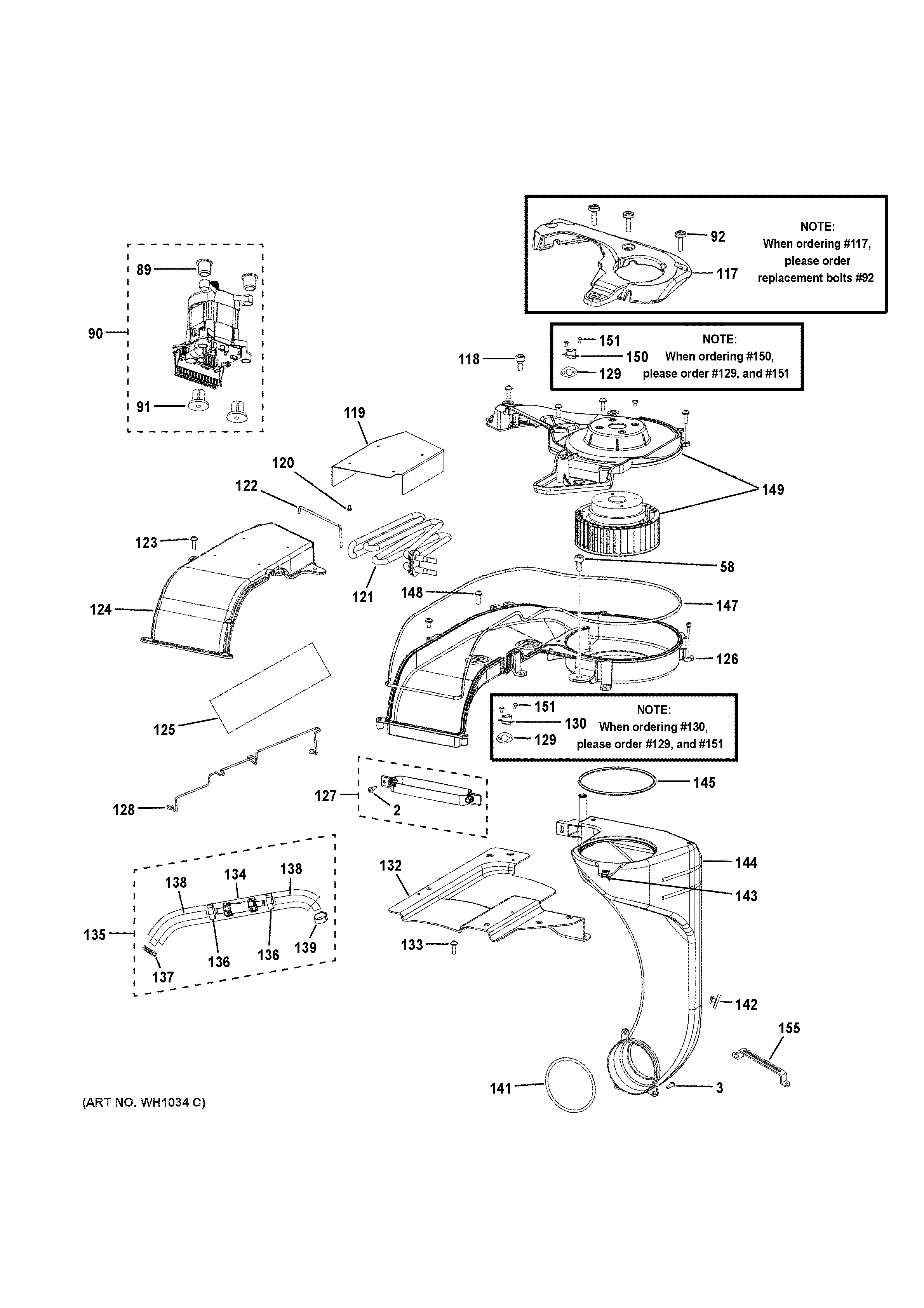

HLC1700AXW BLOWER & HEATING SYSTEMadmin2025-04-26T10:00:19+00:00HLC1700AXW BLOWER & HEATING SYSTEM ProductsPositionProduct2WH02X26267 GE Screw3WH02X26189 GE Tapping Screw58WH02X26236 GE Screw Assembly89RUBBER MOTOR BUSHING90WH18X27723 GE Washer Dryer Motor 115V 60Hz91PLASTIC MOTOR BUSHING92WH02X27145 GE Bolt with Loctite117UPPER COUNTERWEIGHT118WH02X26924 GE Belt Protector Bolt119WH11X27150 GE Washer Baffle Board120WH02X27151 GE Heater Baffle Screw121WE11X27152 GE Heater Assembly122WE11X27153 GE Dryer Sealing Strip123WE02X27154 GE Heated Air Plenum Cover Screw124WE11X27155 GE Dryer Under Shell125FELT - AIR PLENUM COVER126WE11X27156 GE Dryer Undershell127PLENUM CLAMP128WE15X27157 GE Main Harness Wiring Support129WE04X27158 GE Dryer Thermostat Gasket130WE04X27736 GE High Limit Thermostat132WE01X27160 GE Dryer Base133WE02X27161 GE Air Plenum to Tub Bracket134WE01X27162 GE Dryer Isolation Sleeve135WE04X27737 GE One-Way Valve136WE01X27163 GE Dryer Hose Clamp137WH01X26244 GE Clamp Tube138WE01X27164 GE Dryer Hose to Condenser Valve139CONDENSER TANK FILL TUBE CLAMP141WH01X27166 GE Washer Outer Cylinder142WE01X27167 GE Dryer Cushion Seal143CONDENSER TANK RETAINER CLIP144WE01X27139 GE Condenser Dryer145WH01X27138 GE Washer Sling Strip147WH01X27137 GE Wash Mach Seal Ring of Prote148WH02X27136 GE Heated Air Plenum Screw149WE16X27738 GE Fan Motor Bracket Assembly150WE04X27739 GE Manual Reset Thermostat151WH02X27135 GE Screw Thermostat155CONDENSER CLAMP
