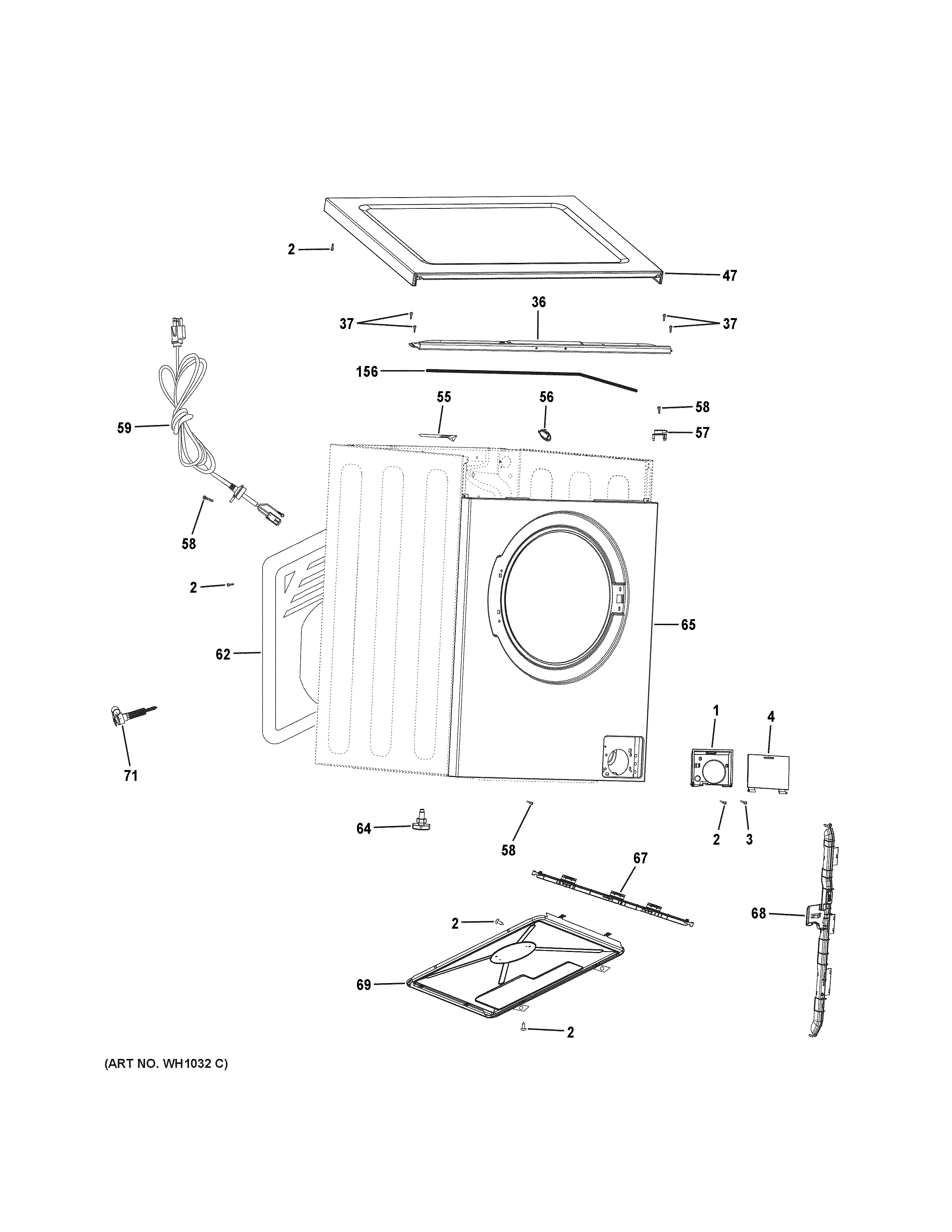

HLC1700AXW CABINET & TOP PANEL

Products

Position	Product
1	WH42X27094 GE Washer Filter Box
2	WH02X26267 GE Screw
3	WH02X26189 GE Tapping Screw
4	WH42X27095 GE Washer Door Filter
36	TOP FRONT BRACKET
37	WH02X26240 GE Screw
47	TOP COVER – WHITE
55	DRAIN HOSE WIRE TIE
56	WIRE TIE
57	WH01X26843 GE Upper Guide Pins
58	WH02X26236 GE Screw Assembly
59	WH19X27124 GE Washer Power Cord
62	REAR COVER
64	WH46X27126 GE Washer Rubber Foot
65	FRONT PANEL – WHITE
67	WH19X26256 GE Washing Machine Go Through – S
68	WH19X26258 GE Washing Machine Go Through – L
69	WH17X27128 GE Washer Control Board
71	WH02X27129 GE Bolts
156	BLOWER COVER FOAM GASKET
