HLC1700AXW TUB & MOTOR

HLC1700AXW TUB & MOTOR

Written by

in

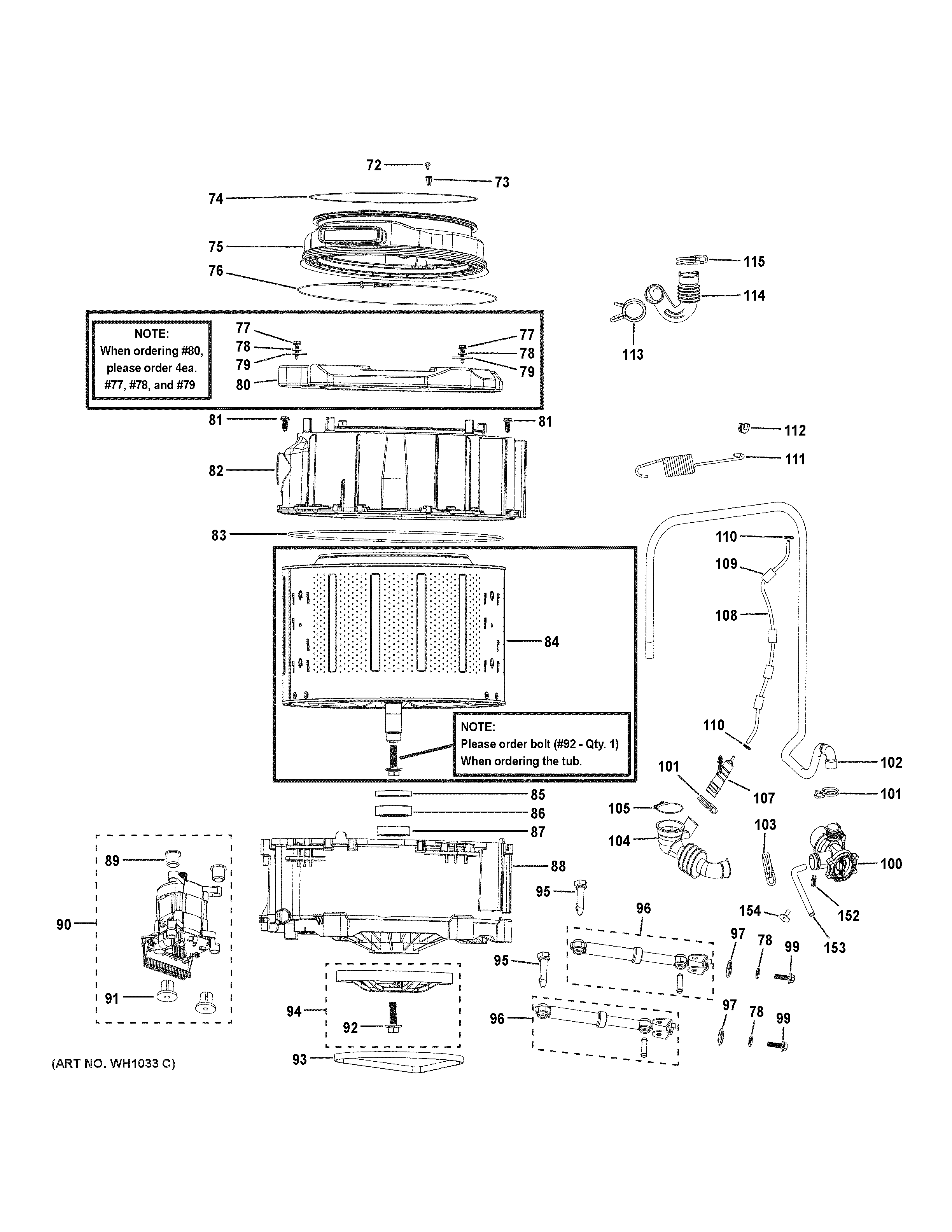

HLC1700AXW TUB & MOTOR

Products

Position	Product
72	WH02X26289 GE Screw
73	WH01X27130 GE Nylon Nut
74	WH01X26288 GE Washer Window Cushion
75	WH10X27131 GE Washer Door Gasket
76	WH08X26291 GE Washer Window Cushion
77	WH02X26292 GE Counterweight Bolt
78	WH01X27132 GE Washer Spring
79	WH02X26293 GE Flat Washer Counterweight
80	WH02X27133 GE Front Counterweight Assembly
81	WH02X26297 GE Tub Bolt
82	WH01X27134 GE Washer Front Flange Outer Cylinder
83	WH08X26304 GE O-Ring
84	WH45X27141 GE Washer Drum Assembly
85	WH08X27227 GE Washer Oil Seal
86	WH04X27228 GE Washer Bearing
87	WH04X27229 GE Washer Bearing
88	WH45X30597 GE Rear Tub
89	RUBBER MOTOR BUSHING
90	WH18X27723 GE Washer Dryer Motor 115V 60Hz
91	PLASTIC MOTOR BUSHING
92	WH02X27145 GE Bolt with Loctite
93	WH07X27146 GE Washer PH Belt
94	WH07X27740 GE Drive Pulley
95	DAMPER PIN
96	WH43X26578 GE Washer Vibration Dampener
97	DAMPER RUBBER WASHER
99	WH02X27232 GE Damper Bolt
100	WH23X26327 GE Drain Pump
101	WH01X26320 GE Internal Drain Hose To Air C
102	WH41X26325 GE Washer Drain Hose
103	WH01X26328 GE Tub to Pump Hose Clamp
104	WH41X26318 GE Washing Machine Connector Holder
105	WH01X26319 GE Washer Hose Clip Connector
107	WH01X26321 GE Washer Air Chamber
108	WH41X27233 GE Washer Pressure Supply Pipe
109	PRESSURE HOSE BUMPER
110	WH01X26324 GE Upper Pressure Hose Clamp
111	WH01X26317 GE Washing Suspension Spring
112	WH02X26263 GE Left Spring Sheath
113	WH01X26299 GE Tub Fill Hose To Dispenser C
114	TUB FILL HOSE
115	WH01X27149 GE Washer Clamp
152	WH41X26582 GE Water Release Hose Pump
153	WH41X26580 GE Water Release Pump Hose
154	WH23X26581 GE Water Release Pump Plug
