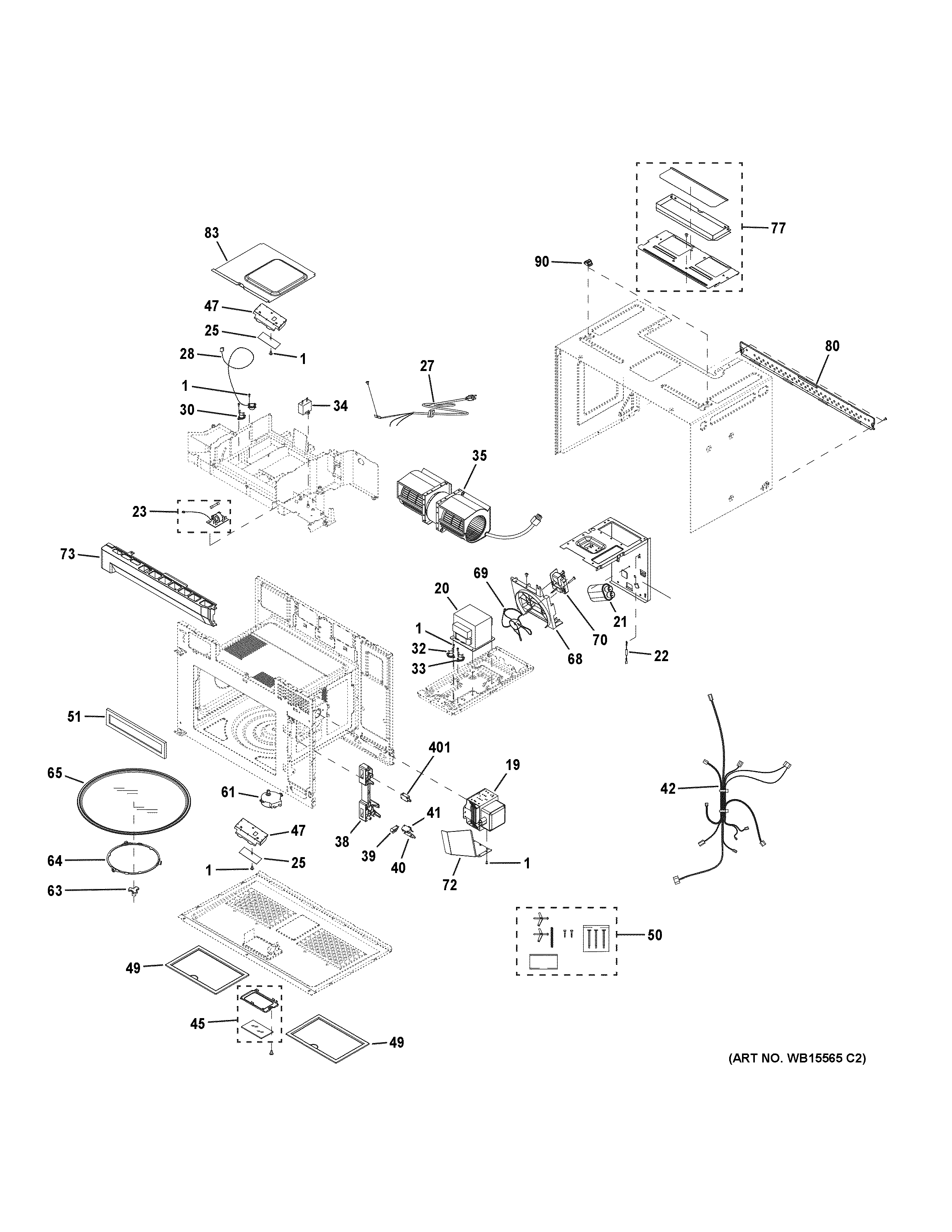

HMV1472BHS OVEN CAVITY PARTS

Products

Position	Product
1	WB01X29033 GE Screw St3 8 PHC
19	WB26X28939 GE Microwave Magnetron
20	WB26X28936 GE Microwave Transformer
21	WB26X28934 GE Microwave Capacitor
22	WB26X28935 GE Microwave Diode
23	WB02X28923 GE Microwave Noise Filter
25	WB02X28937 GE Range Control Board
27	WB18X27450 GE Oven Power Cord Assembly
28	WB24X21307 GE Humidity Sensor Assembly
30	WB24X28949 GE Range Thermostat
32	WB27X11212 GE Oven Thermostat 120/240
33	WB27X11213 GE Oven Thermostat
34	WB24X28925 GE Microwave Capacitor
35	WB26X28944 GE Range Vent Motor
38	WB10X25607 GE Oven Latch Assembly
39	WB03X10348 GE Oven Lever Switch
40	WB24X10146 GE Oven Micro Switch
41	WB24X28942 GE Range Monitor Microswitch
42	WB18X28952 GE Main Wire Harness
45	BRACKET, LAMP GLASS ASM
47	COVER, LAMP
49	WB02X11550 GE Microwave Charcoal Filter Replacement
50	WB02X28945 GE Range Assembly Kit
51	WB06X10608 GE Replacement Grease Filter
61	TURNABLE MOTOR
63	WB06X10925 GE Oven Coupler
64	WB02X27104 GE Microwave Rotating Ring
65	WB63X28931 GE Microwave Tray
68	GUIDE FAN
69	FAN
70	WB26X28943 GE Fan Motor
72	WB34X27087 GE Oven Wind Guide Cover
73	RANGE VENT GRILLE
77	WB06X10938 GE Oven Damper Bracket
80	WB56X32193 GE Oven Mounting Plate
83	WB34X25622 GE Cavity Lamp Cover
90	WB01X22640 GE Oven Nut Assembly
401	WB24X10204 GE Oven Micro Switch
