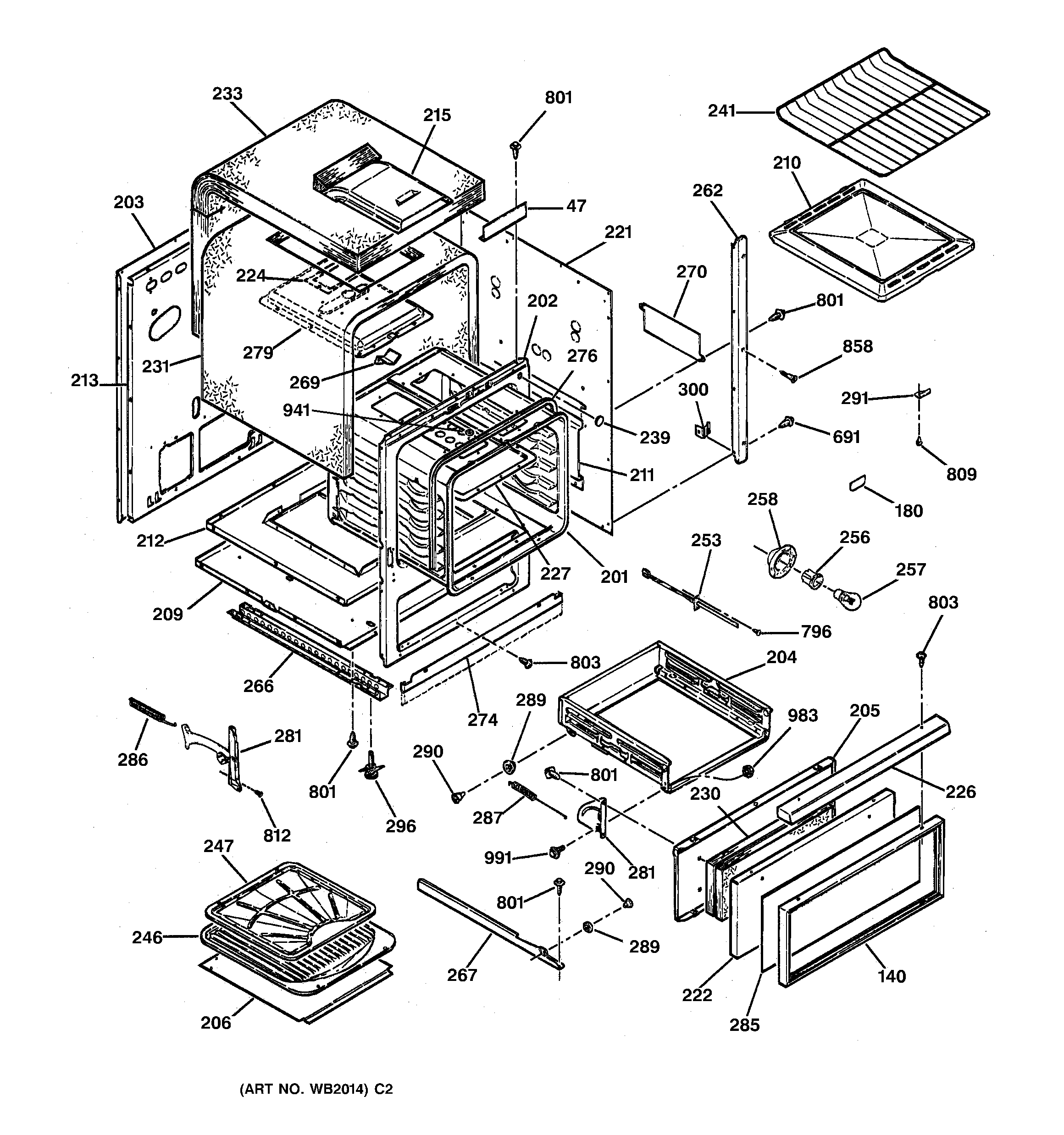

HMV24CEWABB BODY PARTS

HMV24CEWABB BODY PARTS

Written by

in

HMV24CEWABB BODY PARTS

Products

PositionProduct
47GEN WB38K5036
140GEN WB55K5075
140GEN WB56K5118
180GEN WB02K5364
201WB63K5198 GE Oven Cabinet Top
202GEN WB63K5164
203GEN WB63K5095
204GEN WB58K5004
205GEN WB55K5025
206GEN WB49X0625
209WB63T10038 GE Main Bottom
210GEN WB63K5097
211GEN WB02K5168
212GEN WB02K5166
213GEN WB02K5167
215GEN WB38K5063
221GEN WB63K5099
222GEN WB56K5046
224WB4K5005 GE Flue Gasket
226WB15K5027 GE Front Panel Handle, Black
227GEN WB63K5106
230INSULATION
231GEN WB35K5059
233GEN WB35K5065
239PLUG ROUND
241WB48T10094 GE Oven Rack
246BROILER PAN
247BROILER PAN GRID
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8X303 GE Oven Lamp Holder
257RANGE ONLY 40W 120V APPL BULB
258GEN WB02X7693
262GEN WB07K5477
262WB7K5278 GE Vertical Side Trim
266GEN WB02X9634
267WB39M3 GE Oven Drawer Assembly
267DRAWER GUIDE-RT
269WB2K5164 GE Light Cup Support
270GEN WB02X9642
274GEN WB07K5019
274GEN WB07M0003
276GEN WB32K5050
279GEN WB38K5064
281GEN WB14K5006
281GEN WB14K5007
281GEN WB14K5019
281GEN WB14K5018
285GEN WB56K5042
286GEN WB09K5018
287GEN WB09X0240
289ROLLER
290GEN WB01X1331
291GEN WB02X9152
296GEN WB02X9635
300GEN WB02X9641
691WB1K5177 GE Oven Trim Screw
796WB1K5116 GE Oven Screw
801WB1M1 GE Oven Screw
803WB1X1149 GE Oven Screw
803WB1K5162 GE Oven Black Screw
809WB1X1137 GE Oven Screw
812WB1K5191 GE Oven Zinc FL Screw
941GEN WB01X1399
983HEX NUT
991GEN WB01X1156
