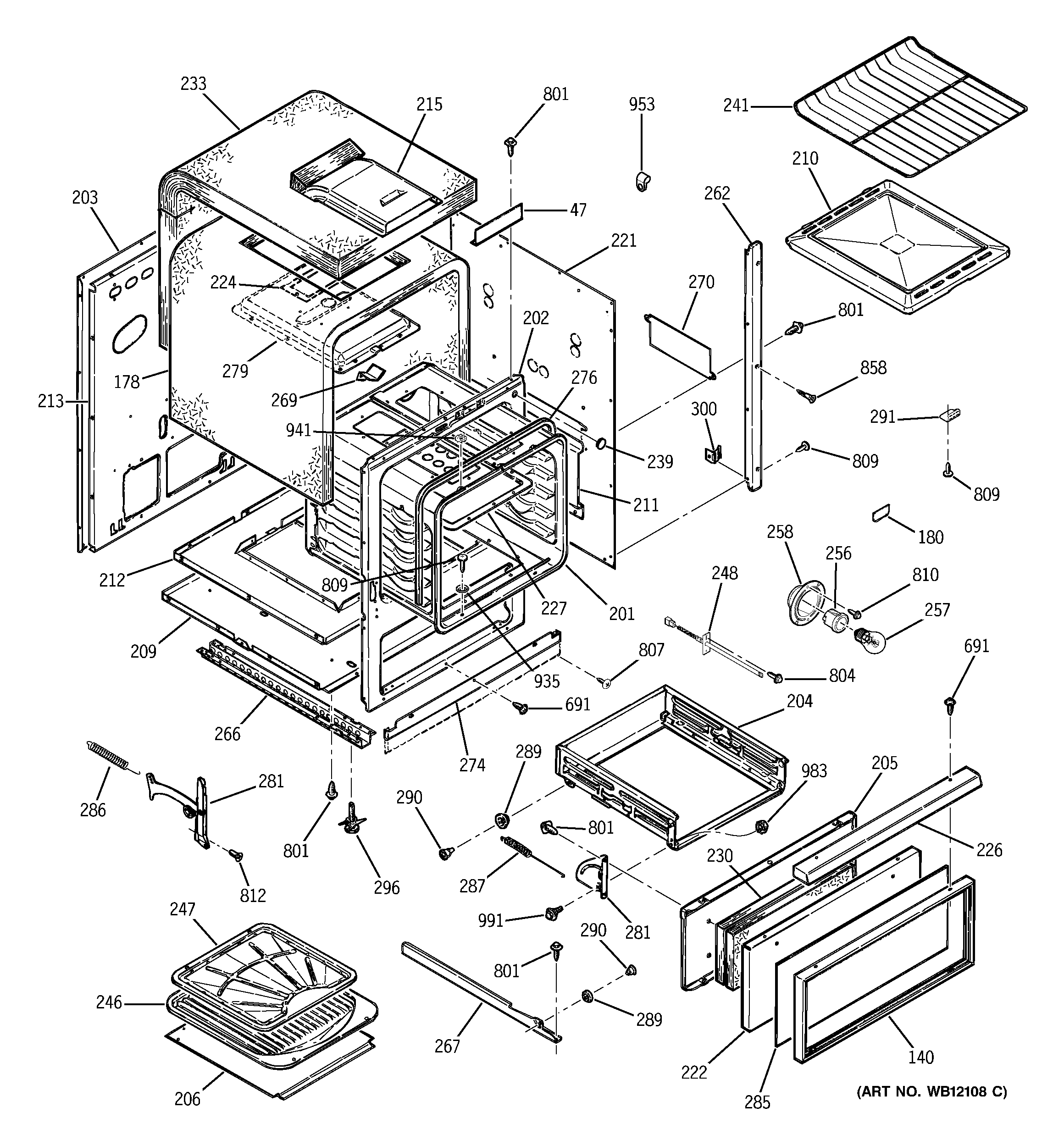

HMV24CEWEN BODY PARTS & DRAWER

HMV24CEWEN BODY PARTS & DRAWER

Written by

in

HMV24CEWEN BODY PARTS & DRAWER

Products

PositionProduct
47GEN WB38K5036
140GEN WB55K5075
140GEN WB56T10007
178GEN WB35K5059
180GEN WB02K5364
201WB63K5198 GE Oven Cabinet Top
202GEN WB63T10017
203GEN WB63K5095
204GEN WB58T10001
205GEN WB55T10014
206BROILER DRAWER BOTTOM
209WB63T10038 GE Main Bottom
210WB63T10019 GE Oven Bottom
211GEN WB02K5168
212GEN WB02T10005
213GEN WB02T10006
215GEN WB38T10003
221GEN WB63K5099
222GEN WB56T10008
224WB4K5005 GE Flue Gasket
226WB15K5027 GE Front Panel Handle, Black
227GEN WB63T10016
230GEN WB35K5066
230INSULATION
233GEN WB35K5065
239PLUG ROUND
241WB48T10094 GE Oven Rack
246BROILER PAN
247GEN WB49T10003
248WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8X303 GE Oven Lamp Holder
257GEN BUY-LOCAL
258GEN WB02X7693
262GEN WB07K5477
262WB7K5278 GE Vertical Side Trim
266GEN WB02X9634
267DRAWER GUIDE-RT
267WB39M3 GE Oven Drawer Assembly
269WB2K5164 GE Light Cup Support
270GEN WB02X9642
274GEN WB07M0003
274GEN WB07K5019
276GEN WB32K5050
279WB38T10010 GE Vent Box
281GEN WB14K5006
281GEN WB14K5018
281GEN WB14K5019
281GEN WB14K5007
285GEN WB56K5042
286GEN WB09K5018
287GEN WB09X0240
289ROLLER
290GEN WB01X1331
291GEN WB02X9152
296GEN WB02X9635
300GEN WB02X9641
691WB1K5177 GE Oven Trim Screw
691WB1K5162 GE Oven Black Screw
801WB1M1 GE Oven Screw
804WB1X681 GE Oven Screw
807WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
807WB1K5165 GE Oven Black Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
812WB1K5191 GE Oven Zinc FL Screw
935WB1K5174 GE Oven Washer
941GEN WB01X1399
953CLIP CABLE NYLON
983HEX NUT
991GEN WB01X1156
