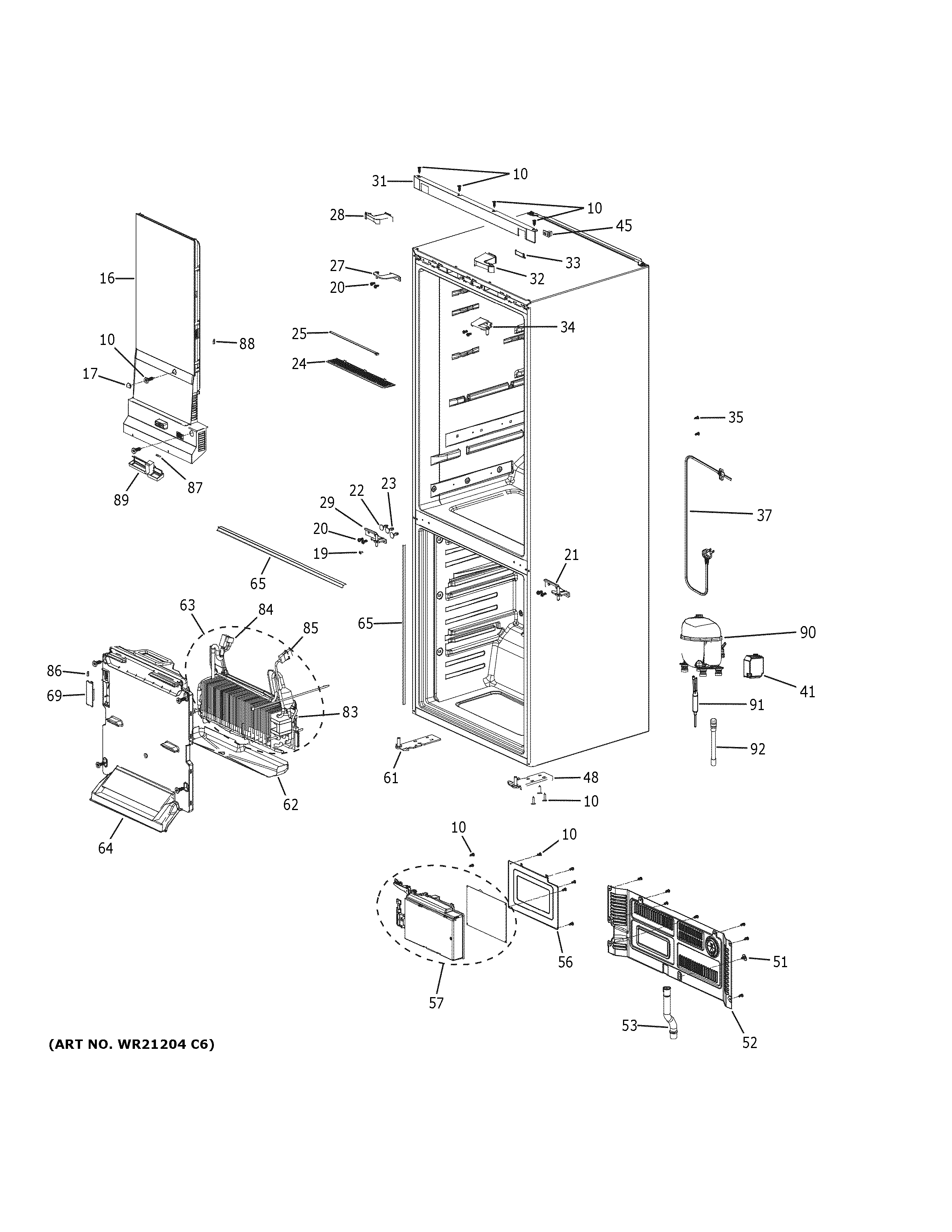

HRB15N3BGS CABINET

Products

Position	Product
10	WR01X28345 GE Screw
16	WR14X29712 GE Refrigerator Fresh Food Air Tower
17	AIR TOWER SCREW HOLE COVER
19	WR01X27684 GE Screw St3.5 x 25
20	WR01X28375 GE M5 x 16 Screw
21	WR13X29725 GE Refrigerator Middle Hinge
22	WR01X29727 GE Refrigerator Plug Button
23	WR01X28360 GE Refrigerator White Plug Button
24	WR13X29719 GE LED Cover
25	WR55X28537 GE Refrigerator LED Board
27	WR13X29732 GE Refrigerator Top Hinge
28	TOP HINGE COVER – LEFT
29	WR13X31145 GE Refrigerator Middle Hinge Left Hand
31	WR13X29731 GE Top End Cap
32	WR13X42146 GE Top Right Hinge Cover
33	BOX COVER
34	WR13X29735 GE Refrigerator Top Right Hinge
35	SCREW Y-HEAD
37	WR55X28528 GE Refrigerator Power Cord
41	WR55X30490 GE Refrigerator Inverter
45	WR55X31994 GE Refrigerator Reed Switch
48	WR13X29699 GE Refrigerator Right Bottom Hinge
51	WR01X29729 GE Screw
52	REAR ACCESS COVER
53	WR01X29706 GE Refrigerator Drain Tube
56	MAIN BOARD ENCLOSURE COVER
57	WR55X29721 GE Refrigerator Main Board
61	WR13X29698 GE Refrigerator Bottom Left Hinge
62	WR14X29705 GE Drain Trough
63	EVAPORATOR
64	WR14X29708 GE Refrigerator Freezer Air Duct
65	AUXILIARY DOOR GASKET
69	HARNESS COVER
83	WR09X29703 GE Defrost Heater
84	WR55X29716 GE Refrigerator Fuse Wire Cable
85	WR55X29702 GE Refrigerator Defrost Sensor
86	WR55X28411 GE Refrigerator Freezer Sensor
87	WR09X27791 GE Refrigerator Freezer Temperature Control
88	WR55X28330 GE Refrigerator Upper Fresh Food Thermistor
89	WR14X29701 GE Refrigerator Damper
90	WR87X31725 GE Refrigerator Compressor
91	WR87X30875 GE Refrigerator R600 Dryer with Red Cap
92	WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
