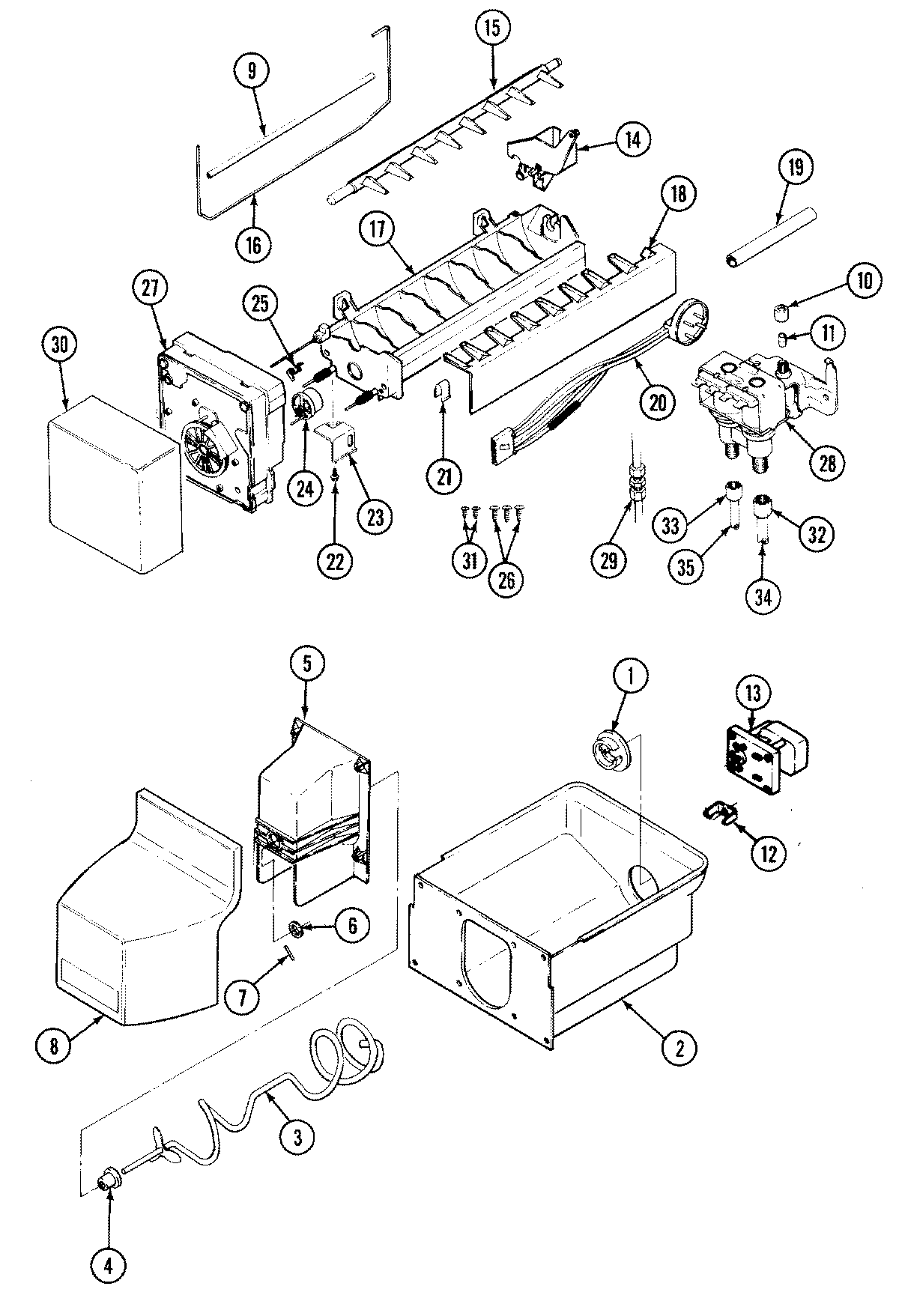

HRNS2239V 06 – ICE MAKER & BIN

Products

Position	Product
1	MAY 63017-1
2	MAY 67826-1
3	MAY 67833-1
4	MAY 67172-2
5	MAY 67829-1
6	MAY 67834-1
7	MAY 492007-703
8	MAY 68552-1
8	MAY 405022-103
9	MAY 67556-1
10	WP245183 Whirlpool Nut
11	WP487627 Whirlpool Refrigerator Sleeve
12	MAY 63052-1
13	SCREW
13	MAY 406026-103
13	12001773 Whirlpool Refrigerator Primary Auger Motor Y Assembly
14	WP628356 Whirlpool Refrigerator Fill Cup
15	WP627843 Whirlpool Refrigerator Ejector Arm
16	MAY 68112-1
17	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
18	WP2182124 Whirlpool Refrigerator Stripper Arm
19	MAY 67666-1
20	MAY 67672-1
21	MAY 68118-1
22	MAY 95108-1
23	BRACKET, MODULE & HEATER
24	WP627985 Whirlpool Icemaker Cycling Thermostat
24	MAY 95093-1
25	WP2315522 Whirlpool Refrigerator Clip
26	WP67006908 Whirlpool Refrigerator Screw
27	MAY 95109-1
28	MAY 69825-1
29	WPW10296793A Whirlpool Refrigerator Connector
30	SCREW
30	MAY 95105-1
30	WPW10289690 Whirlpool Ice Maker Cover
31	MAY 401018-1
32	MAY 69583-2
33	WP627018 Whirlpool Refrigerator Nut
34	MAY 67187-10
35	MAY 69048-1
35	MAY 67579-2
