HRQ16N3BGS CABINET

HRQ16N3BGS CABINET

Written by

in

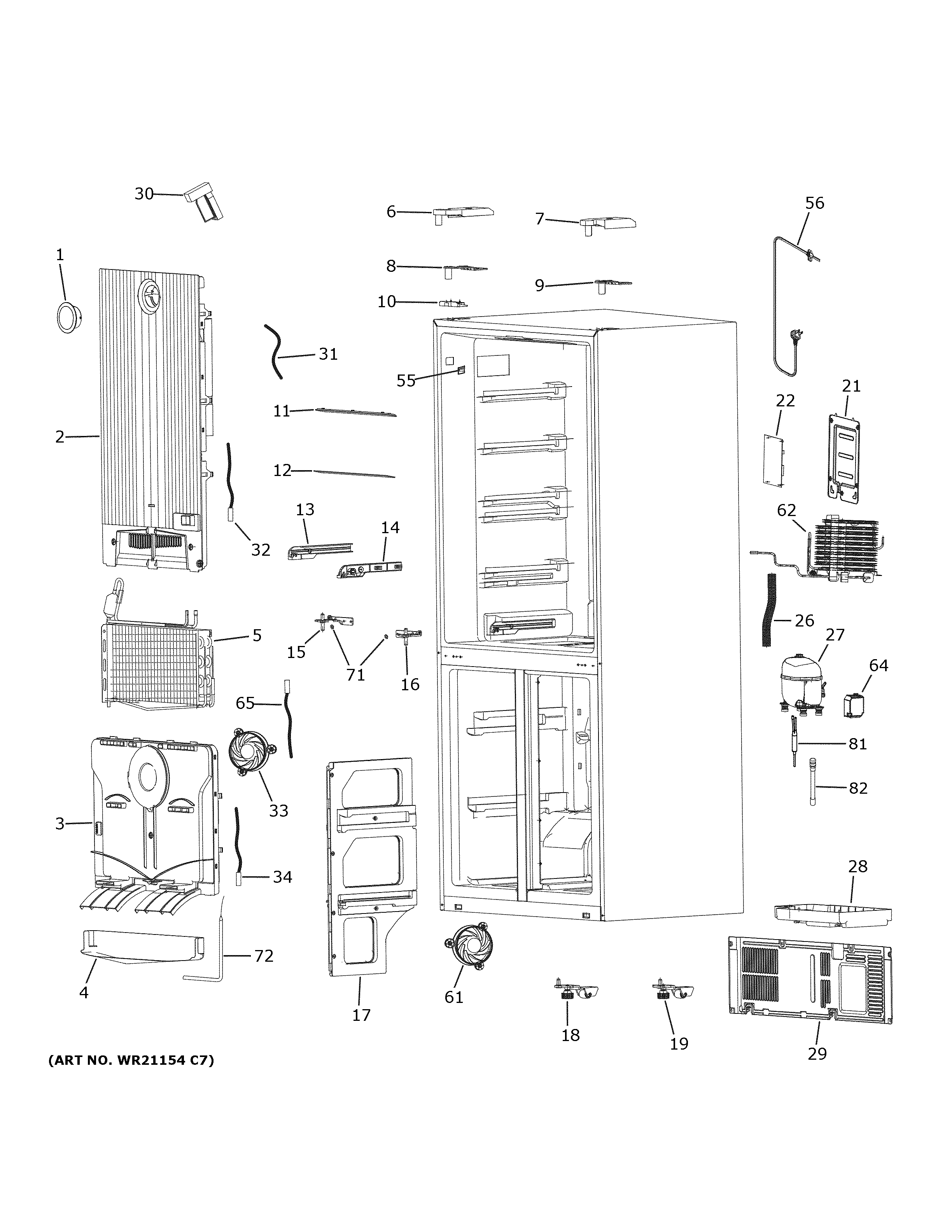

HRQ16N3BGS CABINET

Products

Position	Product
1	AIR DUCT COVER
2	WR14X28441 GE Refrigerator Fresh Food Air Tower
3	WR14X35470 GE Refrigerator Evaporator Cover
4	WR14X28449 GE Refrigerator Drain Trough
5	WR87X32185 GE Refrigerator Evaporator
6	TOP HINGE COVER LEFT
7	WR13X28438 GE Right Top Hinge Cover
8	WR13X28531 GE Refrigerator Top Hinge & Pin Left
9	UPPER RIGHT HINGE
10	WR01X28443 GE Mullion Striker
11	WR55X28537 GE Refrigerator LED Board
12	LED LIGHT COVER
13	WR72X28414 GE Left Shelf Slide
14	WR72X28451 GE Shelf Slide Right
15	WR13X28445 GE Refrigerator Left Center Hinge
16	WR13X28432 GE Refrigerator Right Center Hinge
17	FREEZER PARTITION
18	WR13X28434 GE Refrigerator Left Bottom Hinge
19	BOTTOM HINGE RIGHT
21	WR14X28426 GE Refrigerator Main Board Control Cover
22	WR55X28427 GE Refrigerator Main Control Board
26	WR01X28429 GE Refrigerator Drain Tube
27	WR87X31725 GE Refrigerator Compressor
28	DRAIN TRAY
29	WR14X28415 GE Rear Access Cover
30	WR14X28413 GE Refrigerator Air Damper
31	AIR DAMPER HARNESS
32	WR55X28330 GE Refrigerator Upper Fresh Food Thermistor
33	WR60X28408 GE Refrigerator Evaporator Fan DC12V
34	WR55X28411 GE Refrigerator Freezer Sensor
55	WR01X28529 GE Refrigerator Door Switch
56	WR55X28528 GE Refrigerator Power Cord
61	WR60X28421 GE Refrigerator Fan Motor
62	WR87X32187 GE Refrigerator Condenser
64	WR55X30490 GE Refrigerator Inverter
65	GE APPLIANCES WR55X28412 DEFROST SENSOR
71	WR01X28504 GE Refrigerator Hinge Shim
72	WR09X31032 GE Refrigerator Defrost Heater
81	WR87X30875 GE Refrigerator R600 Dryer with Red Cap
82	WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
