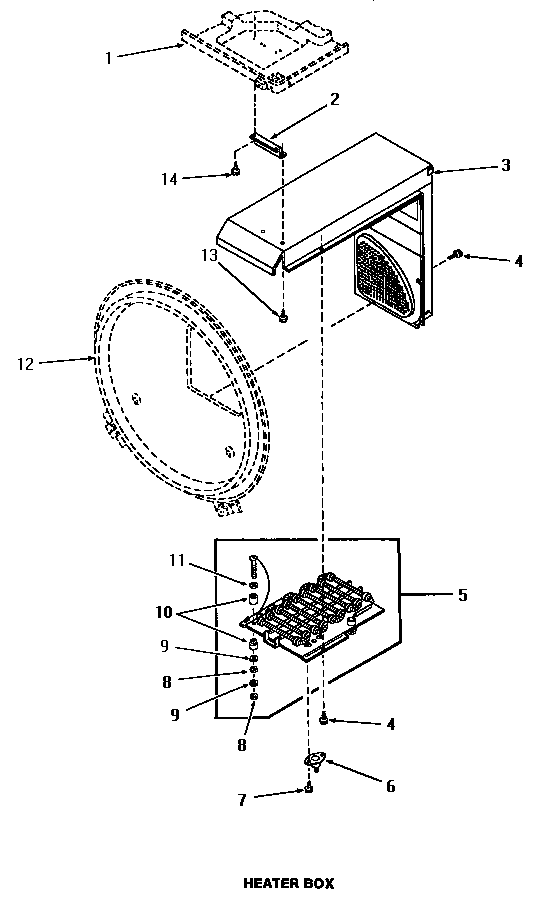

HS8031 07 – DRYER HEATER BOX

Products

Position	Product
	ORDER GRAPHICS PANEL FROM THE SOURCE WHERE THE DRYER WAS PURCHASED. INCLUDE THECOMPLETE MODEL AND SERIAL NUMBERS WITH ORDER.
2	MAY 58765
3	MAY 58762
4	MAY 56264
5	MAY 58738
6	56082 Speed Queen Limit Thermostat
7	WP3177991 Whirlpool Screw
8	MAY 56563
9	MAY 56552
10	MAY 57408
11	MAY 20176
12	SEE NOTE GROUND WIRE, GREEN
13	MAY 51780
