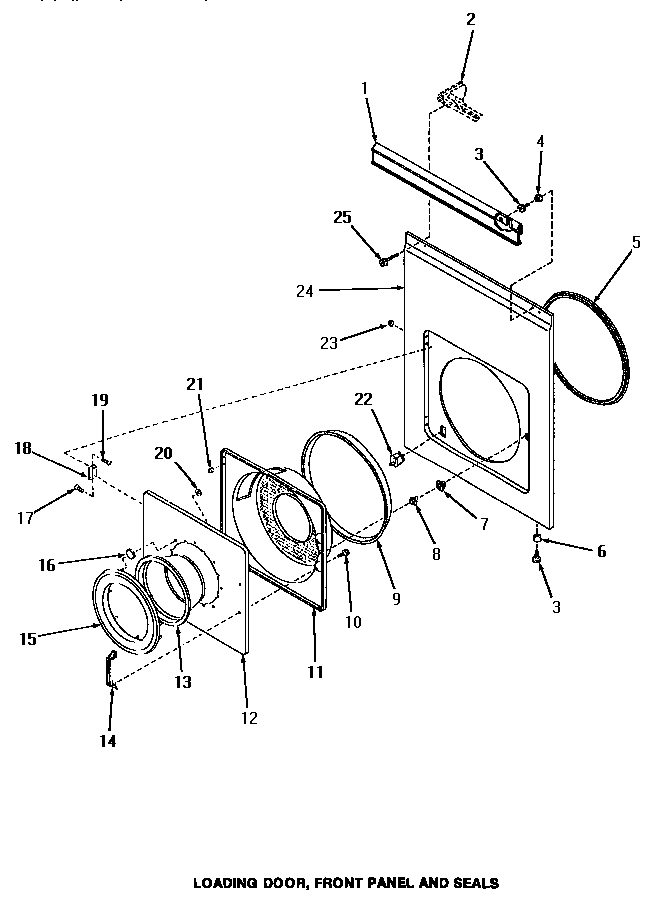

HS8031 08 – DRYER LOADING DOOR, FRONT PANEL & SEALS

Products

Position	Product
	ORDER GRAPHICS PANEL FROM THE SOURCE WHERE THE DRYER WAS PURCHASED. INCLUDE THECOMPLETE MODEL AND SERIAL NUMBERS WITH ORDER.
1	MAY 58781
2	SEE NOTE GROUND WIRE, GREEN
3	MAY 56086
4	MAY 58810
5	MAY 56091
6	MAY 56079
7	MAY 54660
8	MAY 54661
9	MAY 56163
10	MAY 52150
11	MAY 58499
12	MAY 57737W
12	MAY 57737L
13	MAY 57735
14	MAY 58809
15	MAY 58796
16	MAY 23225
17	MAY 52864
18	MAY 56045
19	MAY 22649
20	WP72107 Whirlpool Touchup
21	MAY 23407
22	MAY 56052
23	MAY 51236
24	MAY 58811L
24	MAY 58811W
25	MAY 58637
