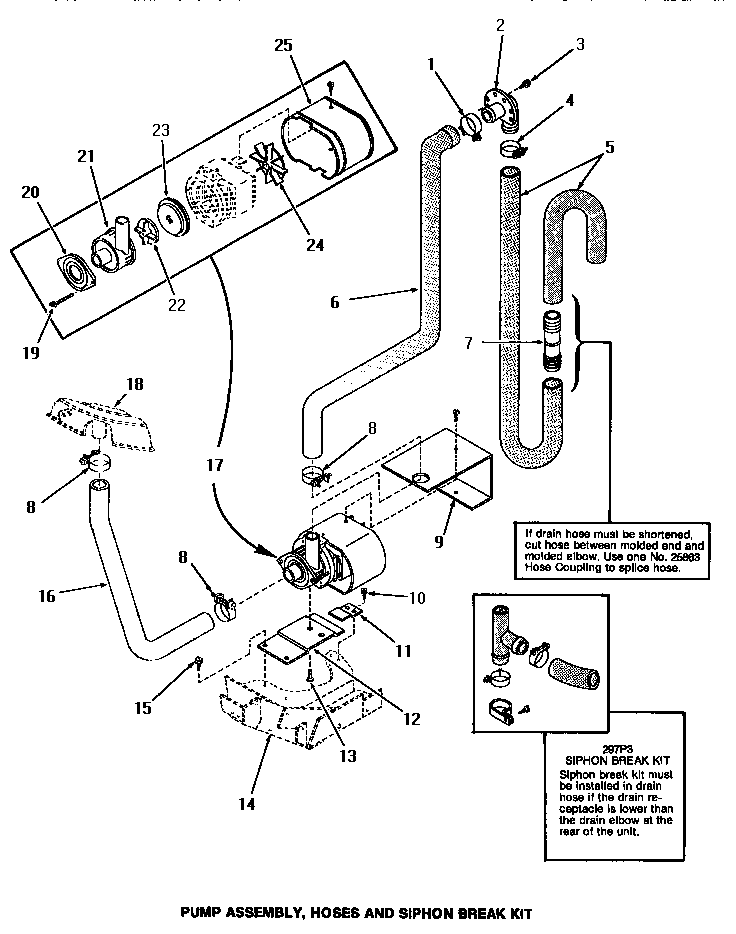

HS8031 16 – PUMP ASSY, HOSES & SIPHON BREAK KIT

HS8031 16 – PUMP ASSY, HOSES & SIPHON BREAK KIT

Written by

in

HS8031 16 – PUMP ASSY, HOSES & SIPHON BREAK KIT

Products

Position	Product
NI	MAY 297P3
1	MAY 20391
2	MAY 23553
3	MAY 51784
4	WP285655 Whirlpool Hose Clamp
5	MAY 28293
6	MAY 30148
7	WP16272 Whirlpool Hose Coupling
8	MAY 27151
9	MAY 30330
10	MAY 25723
11	MAY 30357
12	MAY 30126
13	MAY 29706
15	MAY 27196
16	MAY 30129
17	MAY 29715
18	SEE NOTE GROUND WIRE, GREEN
19	MAY 29715E
20	MAY 29715D
21	MAY 29715C
22	MAY 29715B
23	MAY 29715A
24	MAY 29715F
25	MAY 29715G
