HSU09VHG(DB)-G ROOM AIR CONDITIONER

Written by

Products

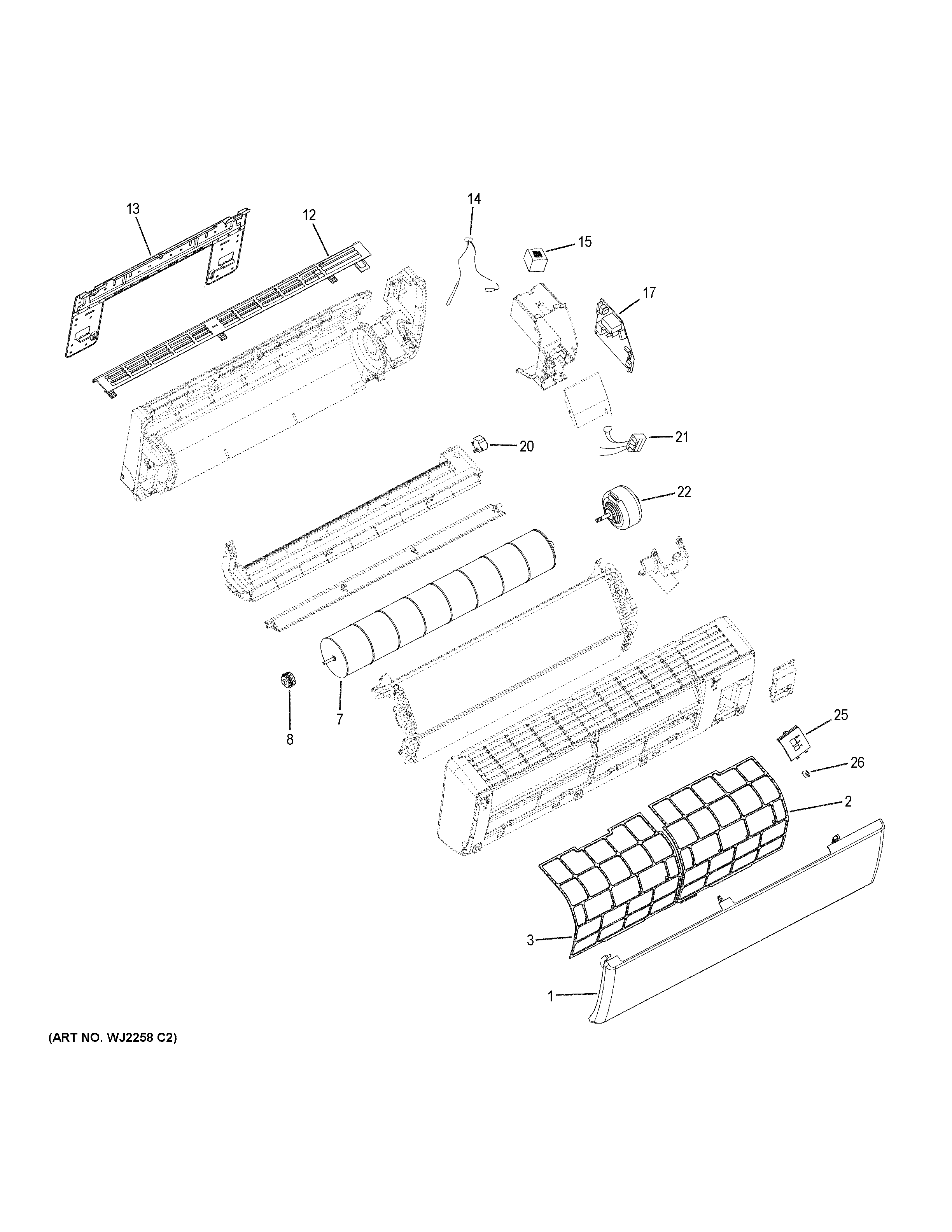

Position	Product
1	TOP PANEL
2	WJ85X23270 GE Air Filter
3	AIR FILTER
7	CROSS FLOW FAN
8	FAN BEARING
12	GRILLE
13	REAR BRACKET
14	WJ26X23344 GE Sensor Assembly
15	TRANSFORMER
17	INDOOR POWER CONTROL BOARD
20	STEPPER MOTOR
21	WJ26X23043 GE Terminal Block
22	WJ94X23316 GE Indoor Motor
25	DISPLAY PANEL BOX
26	RECEIVER POWER CONTROL BOARD
