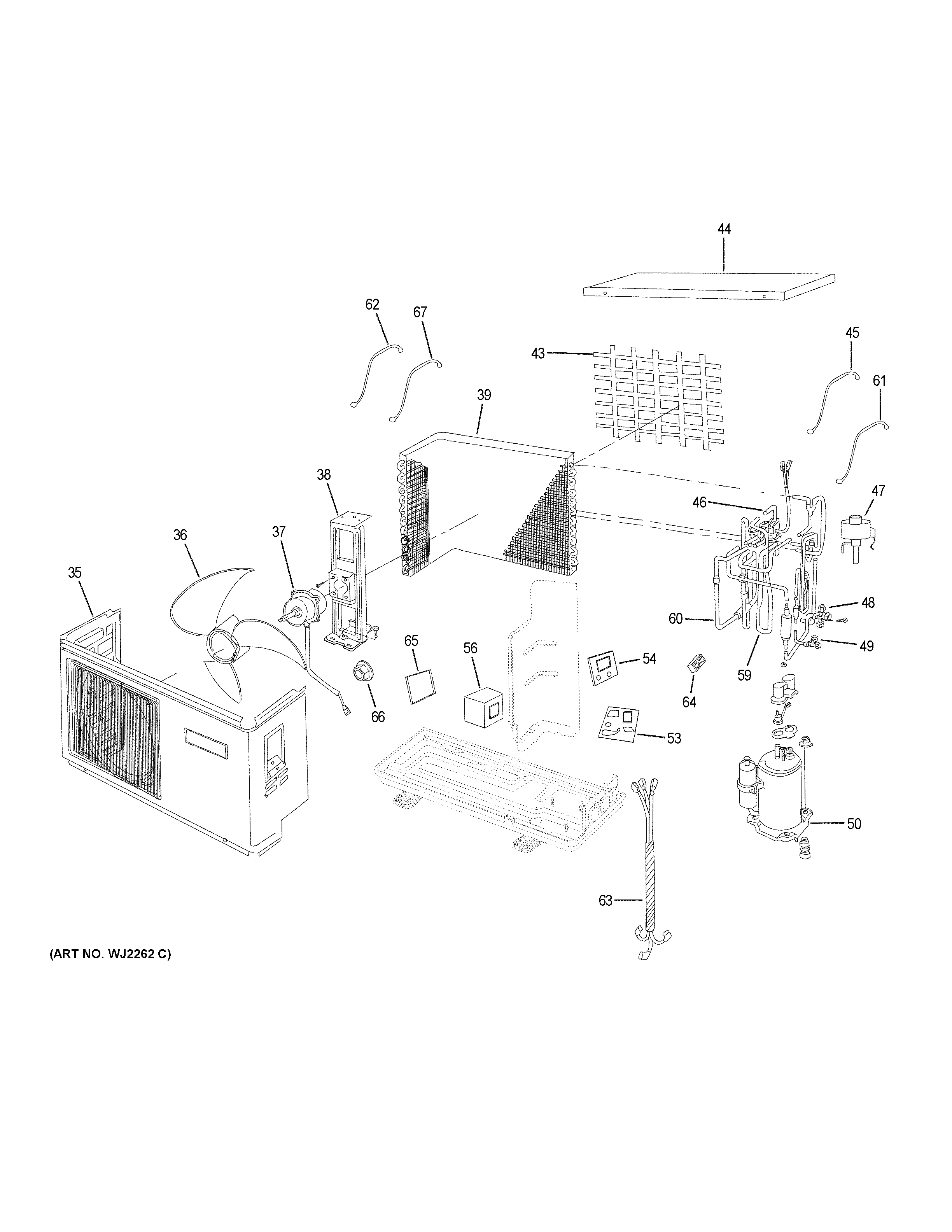

HSU09VHG(DB)-W ROOM AIR CONDITIONER

Products

Position	Product
35	WJ76X24914 GE Casing
36	WJ73X23190 GE Fan Blade
37	OUTDOOR FAN MOTOR
38	FAN MOTOR BRACKET
39	WJ88X23288 GE Condenser
43	WJ71X23338 GE Rear Grille
44	WJ76X23200 GE Top Cover
45	WJ26X23334 GE Sensor Pipe
46	WJ53X22967 GE Valve 4-Way
47	WJ53X23303 GE Electronic Expansion Valve
48	WJ53X24974 GE Vapor Service Valve
49	WJ53X22991 GE Liquid Service Valve
50	COMPRESSOR
53	OUTDOOR POWER CONTROL BOARD
54	POWER MODULE BOARD
56	WJ27X22981 GE Reactor
59	DISCHARGE TUBE
60	SUCTION TUBE
61	WJ26X23286 GE Compressor Temperature Sensor
62	WJ26X23278 GE Ambient Temperature Sensor
63	WJ35X23332 GE Outdoor Wiring Harness
64	WJ27X22985 GE Terminal Block
65	WJ26X23195 GE Radiator
66	FLANGE NUT
67	WJ26X23346 GE Temperature Suction Sensor
