HSU09VHJ(DB)-W ROOM AIR CONDITIONER

Products

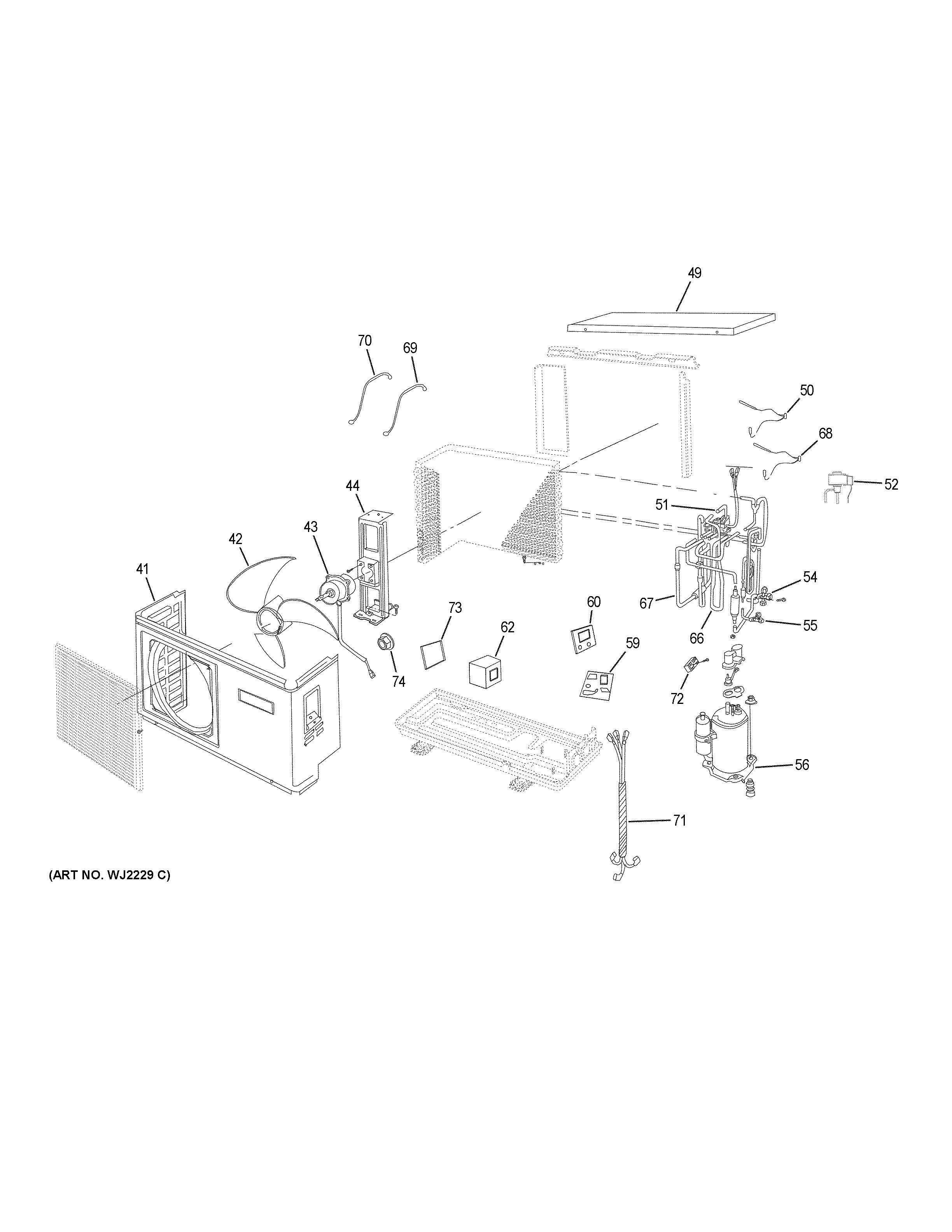

PositionProduct
41WJ76X23478 GE Casing
42WJ73X23190 GE Fan Blade
43OUTDOOR FAN MOTOR
44WJ65X23207 GE Outdoor Fan Motor Bracket
49WJ76X23200 GE Top Cover
50WJ26X23334 GE Sensor Pipe
51WJ53X22967 GE Valve 4-Way
52WJ53X23303 GE Electronic Expansion Valve
54WJ53X24974 GE Vapor Service Valve
55WJ53X22991 GE Liquid Service Valve
56COMPRESSOR
59OUTDOOR POWER CONTROL BOARD
60POWER MODULE BOARD
62WJ27X22981 GE Reactor
66DISCHARGE TUBE
67SUCTION TUBE
68WJ26X23286 GE Compressor Temperature Sensor
69WJ26X23346 GE Temperature Suction Sensor
70WJ26X23278 GE Ambient Temperature Sensor
71WJ35X23332 GE Outdoor Wiring Harness
72WJ27X22985 GE Terminal Block
73WJ26X23195 GE Radiator
74FLANGE NUT
