HSU12VHG(DB)-W ROOM AIR CONDITIONER

HSU12VHG(DB)-W ROOM AIR CONDITIONER

Written by

in

HSU12VHG(DB)-W ROOM AIR CONDITIONER

Products

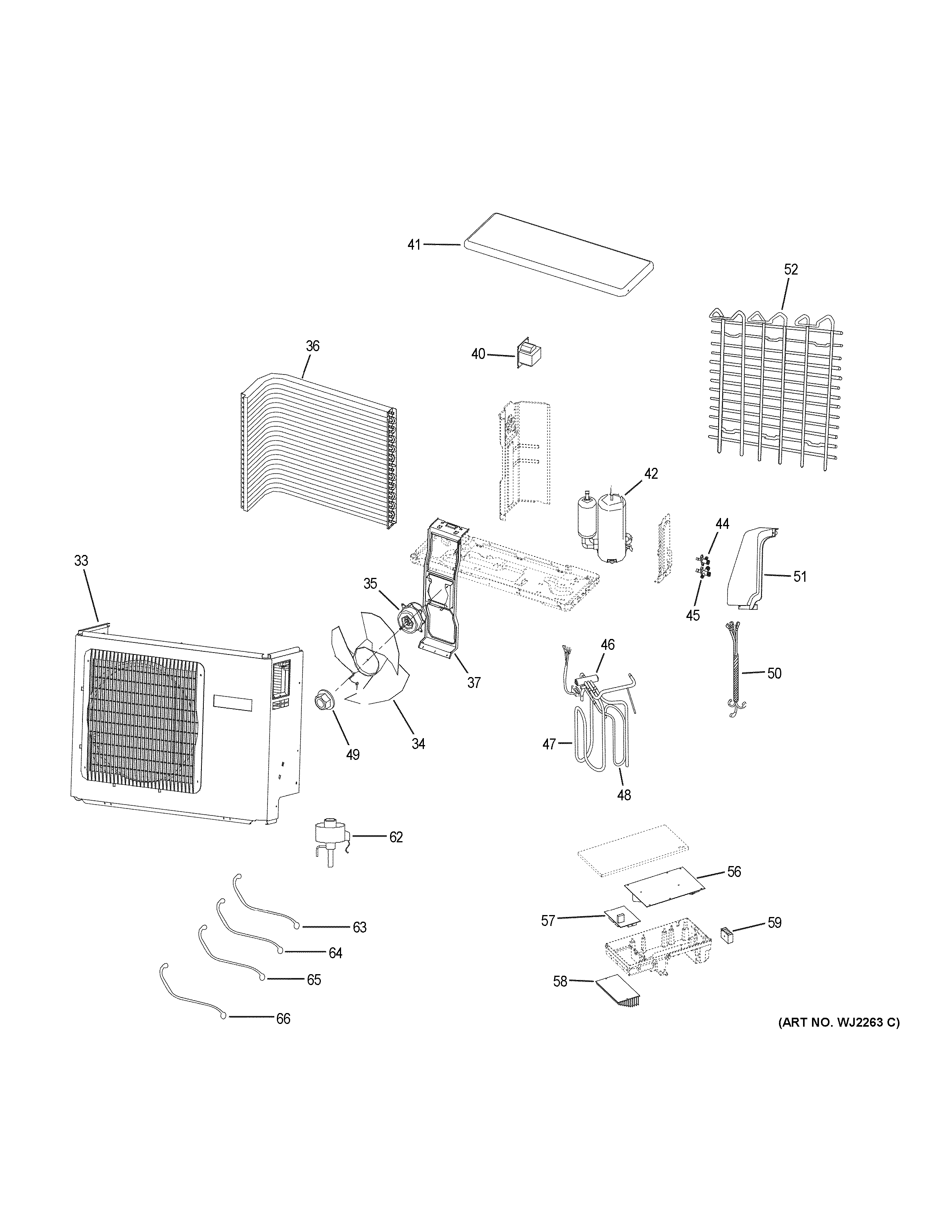

PositionProduct
33CASING
34WJ73X22973 GE Fan Blade
35OUTDOOR FAN MOTOR
36CONDENSER
37FAN MOTOR BRACKET
40WJ27X23006 GE Reactor
41WJ76X23200 GE Top Cover
42COMPRESSOR
44WJ53X22965 GE Liquid Valve Service
45WJ53X22966 GE Vapor Valve Service
46WJ53X22967 GE Valve 4-Way
47SUCTION TUBE
48DISCHARGE TUBE
49FLANGE NUT
50OUTDOOR WIRING HARNESS
51STOP VALVE COVER
52WJ71X23314 GE Grille
56WJ26X23329 GE Outdoor Power Control Board
57POWER MODULE BOARD
58WJ26X23195 GE Radiator
59WJ27X22985 GE Terminal Block
62WJ53X23303 GE Electronic Expansion Valve
63WJ26X23286 GE Compressor Temperature Sensor
64WJ26X23278 GE Ambient Temperature Sensor
65WJ26X23334 GE Sensor Pipe
66WJ26X23346 GE Temperature Suction Sensor
